Craftsman 13A277XS299 (247.203712) (T1000) (2015) Lawn Tractor

Model: 13A277XS299 (247.203712) (T1000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

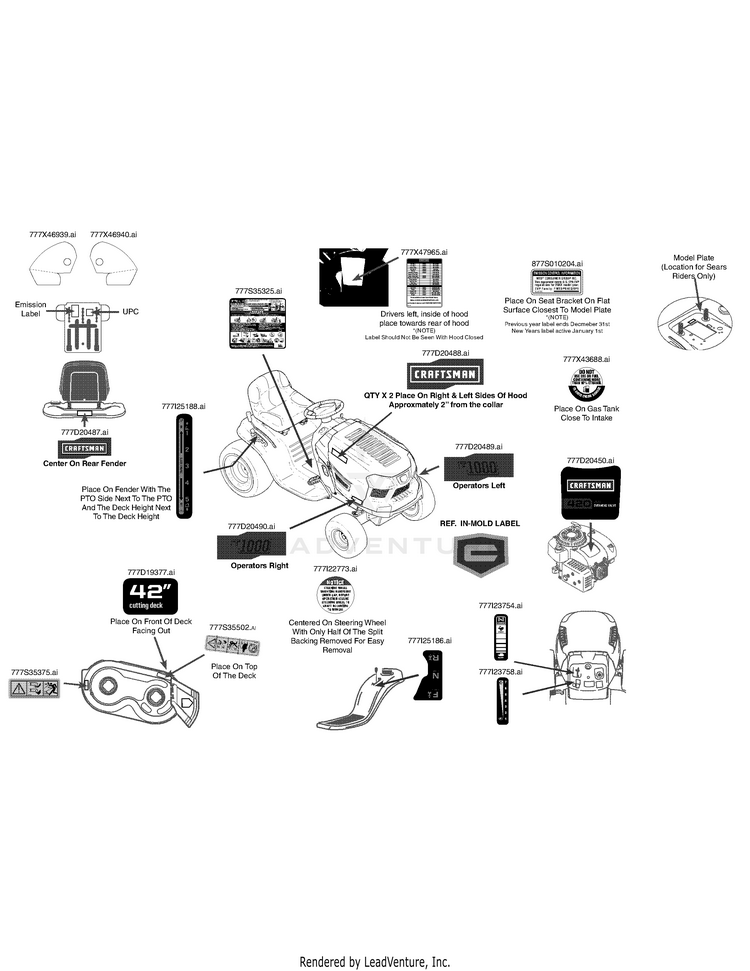

Label Map

...
...
777D19377
LABEL-RIDER DECK 4 MTD-777D19377
...
777D20450
LBL-ENG SHROUD 420CC CRAFTSMAN MTD-777D20450
...
777D20487
LBL-CRAFTSMAN LOGO REAR FNDR LT5 MTD-777D20487
...
777D20488
LBL-CRAFTSMAN LOGO HOOD SIDE LT5 MTD-777D20488
...
777D20489
LABEL-T1000 RDR (LH) MTD-777D20489
...
777D20490
LABEL-T1000 RDR (RH) MTD-777D20490
...
777I22773
LABEL-RIDER:SECURE MTD-777I22773
...
777I23754
LABEL-RIDER LT-5 T MTD-777I23754
...
777I23758
LABEL-RIDER LT-5 7 MTD-777I23758
...
777I25186
LABEL-RIDER LT5 CP MTD-777I25186
...
777I25188
LABEL-RIDER LT5 CP MTD-777I25188
...
777S35325
LABEL-SAFETY LT5 S MTD-777S35325
...
777S35375
LABEL-RIDER SAFETY MTD-777S35375
...
777S35502
LBL-CHUTE SAFETY MTD-777S35502
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777X46884
LABEL-RIDER EMISSIONS 2014 MTD-777X46884
...
777X46939
LABEL-RIDER CPX RE MTD-777X46939
...
777X46940
LABEL-RIDER CPC RE MTD-777X46940
...
777X47726
LABEL-RIDER EMISSIONS 2015 MTD-777X47726
...
777X47965
LABEL-PARTS T1000 CRAFTSMAN MTD-777X47965
...
...
...
...
...
