Craftsman 13A277XS299 (247.203712) (T1000) (2015) Lawn Tractor

Model: 13A277XS299 (247.203712) (T1000) (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

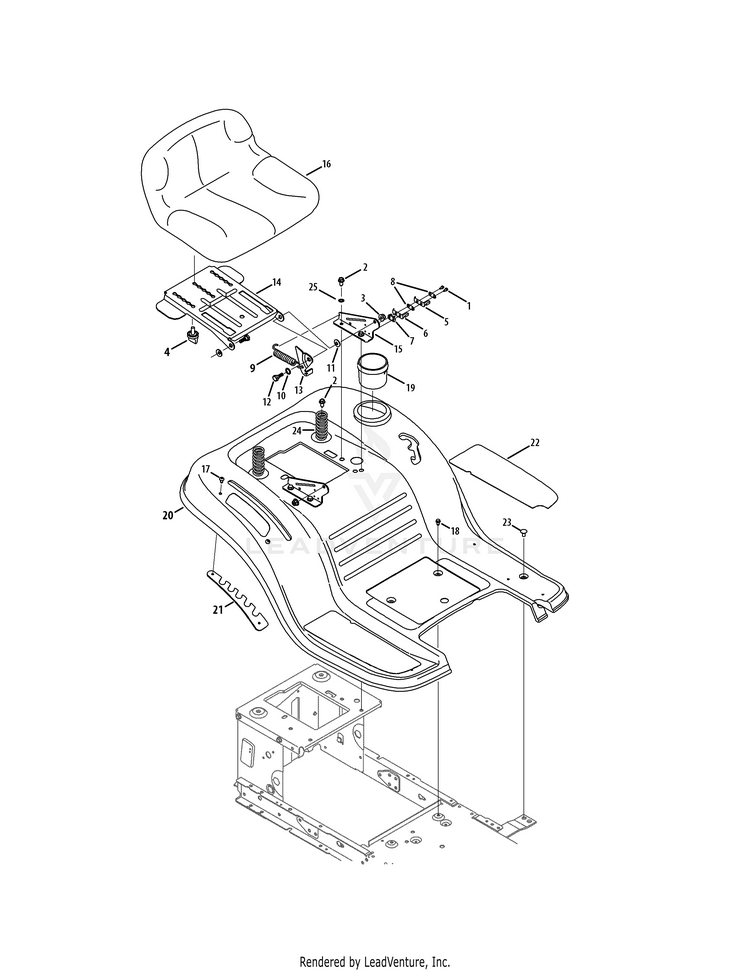

Seat & Fender

...
...
1
Screw, 8-18 x .500 MTD-710-0227
...
2
SCREW 5/16-18 x .750 MTD-710-04484
...
3
Flange Lock Nut, 5/16-18 MTD-712-04063
...
4
Knob, 3/8-16 x .875 MTD-720-04061
...
5
WIRE HARNESS MTD-925-1308A
...
6
Inner Seat Spring MTD-725-1439
...
7
Insulator Boss Plate MTD-726-0278
...
8
Insulator Plate MTD-726-0279
...
9
Extension Spring MTD-732-1184
...
10
Flat Washer, .510 x .750 x .033 MTD-936-0108
...
11
Flat Washer, .340 x .872 x .060 MTD-736-0242
...
12
Shld. Bolt .437" x .286" MTD-738-0296
...
13
Lift Seat Bracket MTD-783-0209D
...
14
Seat Pivot Bracket MTD-783-04081D-0637
...
15
Seat Mounting Bracket MTD-783-1489D-0637
...
16
LOW BACK SEAT, BLACK (3 PT) MTD-757-05230
...
17
Screw, 1/4-20 x .500 MTD-710-05070A
...
18
Screw Pan Torx Head, 1/4-20 x .500 MTD-710-0599
...
19
Cup Holder MTD-731-04591A
...
20
FENDER (CRAFTSMAN METALL) MTD-783-04587E-4043
...
21
Lift Adjuster Bracket MTD-783-04843-0637
...
22
Abrasive Foot Pad, LH MTD-723-04026
...
22
Abrasive Foot Pad, RH MTD-723-04025
...
23
Carriage Screw, .62: 1/4-20 MTD-710-0134
...
24
Spring, Compress., 1.314 x 2.55 MTD-732-0735A
...
25
Loack Washer, 5/16 MTD-736-0607
...
...
...
...
...
