Craftsman 13A226JD099 (247.25000) (2012) RER1000 (2012) Lawn Tractor

Model: 13A226JD099 (247.25000) RER1000 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

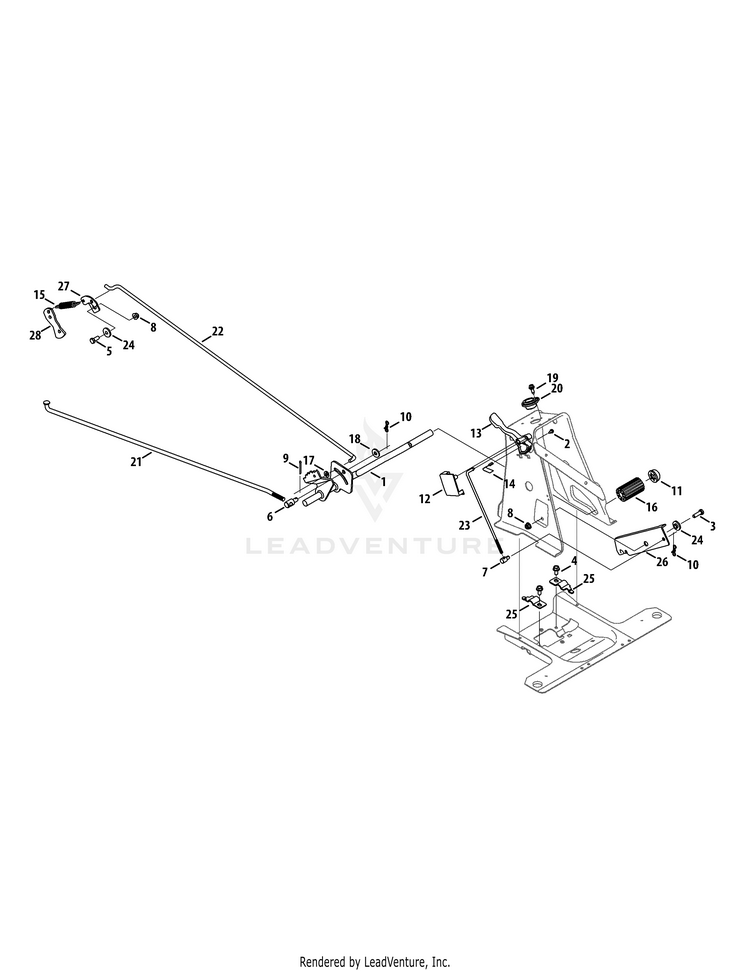

Brake Assembly

...
...
1
BRAKE PEDAL ASSEMBLY (POWDER BLACK) MTD-683-04699-0637
...
2
Screw, #10-16x0.500 MTD-910-0224
...
3
Hex Head Scerw, 5/16-18x1.00 MTD-710-0376
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
6
Ferrule 3/8-24 X .375 Dia. MTD-911-04075A
...
7
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
8
Flange Lock Nut, 5/16-18 MTD-712-04063
...
9
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
10
Bow-Tie Cotter Pin, 72 MTD-714-04040
...
11
Push Cap, 5/8 MTD-726-0214
...
12
6 SPEED CONTROL COVER MTD-731-08656B
...
13
Speed Lever, 6-SPEED MTD-731-08743B
...
14
Shift Spring MTD-732-04937
...
15
Extension Spring, .59 OD X 4.00 LG MTD-732-0716D
...
16
Foot Pad, 2.5" LG. MTD-735-04279
...
17
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
18
Flat Washer, .380X.930X.110 MTD-736-3072
...
19
Shoulder Screw, .368 X.113, 1/4-20 MTD-738-04184A
...
20
Steering Col. Bearing, .880 ID X 1.36 MTD-741-0356A
...
21
Variable Speed Control Rod MTD-747-05506
...
22
TRANSMISSION BRAKE ROD MTD-747-05508
...
23
SPEED SELECTOR CONTROL ROD MTD-747-05616
...
24
Shoulder Spacer MTD-748-0234
...
25
Pedal Strap Support Bracket, 5/8 MTD-783-05940
...
26
SERVICE KIT (SPEED LATCH) MTD-753-08452A
...
27
BRAKE CAM BRACKET MTD-783-07287A
...
28
Brake lever Bracket MTD-717-0772B
...
...
...
...
...
