Craftsman 13A226JD099 (247.25000) (2012) RER1000 (2012) Lawn Tractor

Model: 13A226JD099 (247.25000) RER1000 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

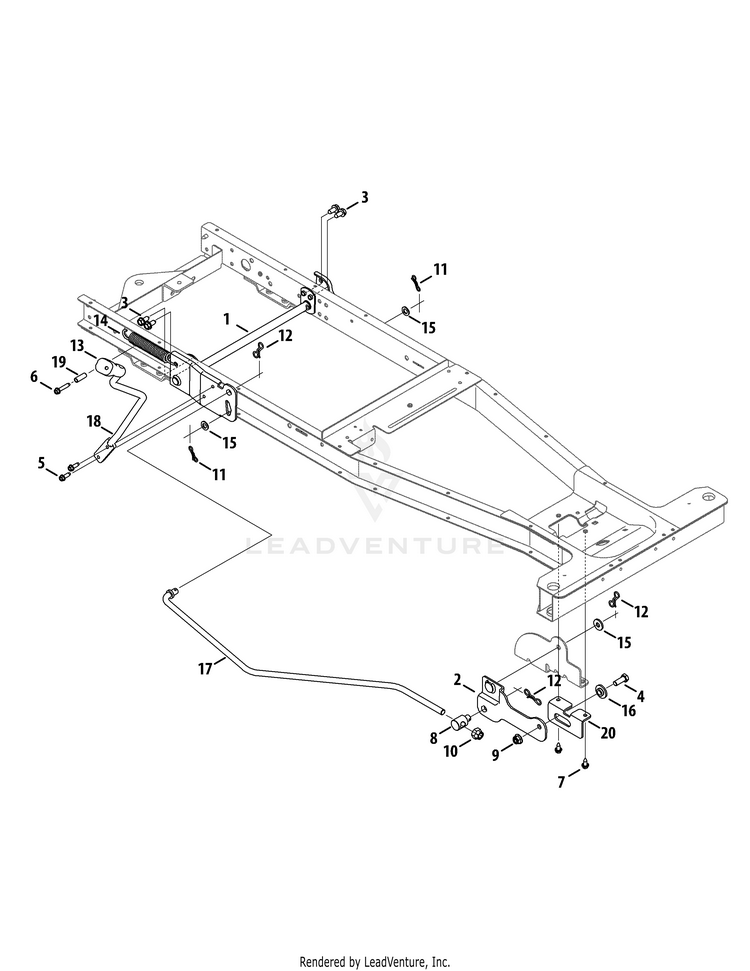

Deck Lift

...
...
1
LIFT SHAFT ASSEMBLY (POWDER BLACK) MTD-683-04706A-0637
...
2
Front Hanger Bracket Assembly MTD-683-04757-0637
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
Hex Head Screw, 3/8-16x1.00 MTD-710-0514
...
5
Tap Screw, 1/4-20x0.750 MTD-710-0642
...
6
Tap Screw, 1/4-20x1.250 MTD-710-0809
...
7
Tap Screw, 1/4-20 X .625 MTD-710-1652
...
8
FERRULE MTD-711-05690C
...
9
Flange Lock Nut, 3/8-16 MTD-712-04065
...
10
Flex Lock Nut, 1/2-13 MTD-712-04243
...
11
Bow-Tie Cotter Pin, 72 MTD-714-04040
...
12
Bow-Tie Cotter Pin, 91 MTD-714-04043
...
13
Grip Handle, 1/2 MTD-720-0311
...
14
Extension Spring, .85 OD X 5.915 LG MTD-732-04692
...
15
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
16
Shoulder Spacer, .625 ID X .169 MTD-938-0347
...
17
Lift Link Rod MTD-747-05511
...
18
Deck Lift Rod MTD-747-05576-0637
...
19
Spacer, .260 x .375 x 1.030 LG MTD-750-0566A
...
20
Front Deck Mounting Bracket MTD-783-07129-0637
...
...
...
...
...
