Craftsman 13A226JD099 (247.25000) (2012) RER1000 (2012) Lawn Tractor

Model: 13A226JD099 (247.25000) RER1000 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

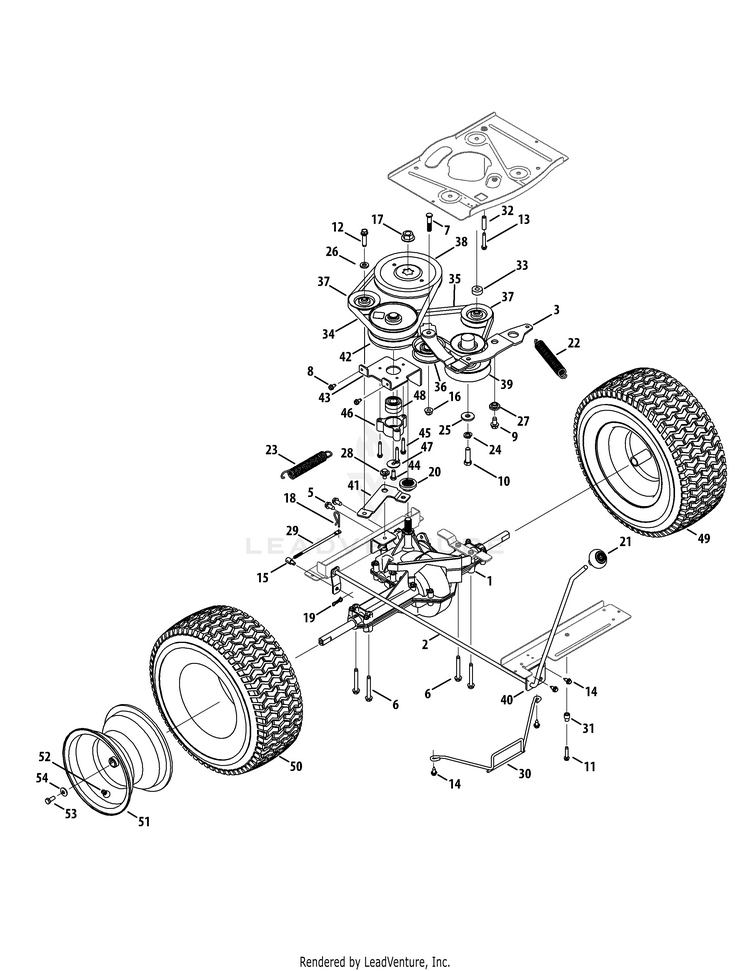

Drive & Rear Wheels

...
...
1
TRANSMISSION MTD-618P09929
...
2
SHIFT HANDLE ASSEMBLY MTD-647-05114
...
3
Drive Assembly Idler MTD-683-04768
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Tap Screw, 5/16-18x2.50 MTD-710-05378
...
7
Hex Head Scew, 3/8-16x1.62 MTD-710-05415A
...
8
Tap Scew, 1/4-20x0.500 MTD-710-0599
...
9
Tap Screw, 3/8-16x0.750 MTD-710-0623
...
10
Hex Head Screw, 7/16-20x1.50 MTD-710-0757
...
11
Tap Screw, 1/4-20x1.250 MTD-710-0809
...
12
SEMS Tap Screw, 3/8-16x1.500 MTD-710-1007
...
13
Tap Screw, 1/4-20x1.625 MTD-710-1325
...
14
Tap Screw, 1/4-20 x .625 MTD-710-1652
...
15
ADJUSTMENT FERRULE 1/4-20 x 1.00 MTD-711-0736
...
16
Flange Lock Nut, 3/8-16 MTD-712-04065
...
17
Flange Nut, 9/16-18 MTD-712-0700
...
18
Internal Cotter Pin, .125 Dia. MTD-914-0209
...
19
Bow-Tie Cotter Pin MTD-714-04040
...
20
Pulley Hub, 5/8 Spline MTD-718-04407
...
21
Shift Knob MTD-720-04028
...
22
Extension Spring, .94 Dia. X 6.74 Lg. MTD-732-0459C
...
23
Extension Spring, .97 OD X 6.18 MTD-732-04934
...
24
Split Lock Washer, 7/16 MTD-936-0171
...
25
Flat Washer, .450X1.250X.164 MTD-736-0322
...
26
Flat Washer, .407X.812X.135 MTD-736-3010
...
27
Shoulder Spacer, 1.00 X .38 X .38 MTD-738-0372B
...
28
Shoulder Spacer, .560x.165x5/16-18 MTD-738-0930
...
29
Shift Rod MTD-747-05593
...
30
BELT KEEPER MTD-747-05617A
...
31
SPACER-STEPPER .265ID x .750LG MTD-950-04099
...
32
Spacer, .260 X .372 X 1.420 MTD-750-04456
...
33
Spacer, .406 ID X 1.00 OD X .38 MTD-750-3119
...
34
Belt MTD-954-05040
...
35
V-Belt, 5L:35.28 MTD-954-04331
...
36
Flat Idler Pulley, 2.75 OD MTD-756-04224
...
37
V-Type Idler Pulley, 3.06 MTD-756-04325
...
38
V-Type Pulley, 6.56 MTD-756-04464
...
39
ENGINE PULLEY (4.46" DIA/3.39" DIA) MTD-756-06043
...
40
SHIFT BRACKET MTD-783-07207
...
41
Rear Idler Arm Bracket MTD-783-07248A
...
42
VARIABLE SPEED PULLEY (4.75 OD) MTD-656P05011
...
43
BRACKET ASSEMBLY MTD-683-05057A
...
44
Hex Head Lock Screw, 5/16-24:.750 MTD-710-0627
...
45
Tap Screw, 1/4-20:1.500 MTD-710-0778
...
46
Bearing Cup MTD-718-04261
...
47
Flat Washer, .330x1.250x.060 MTD-736-0362
...
48
Ball Bearing, 17 X 40 X 12 MTD-941-0600
...
49
Complete Wheel Assembly MTD-634-0139-0911
...
50
Tire, 16 x 6.5 x 8 Sq. Shoulder MTD-734-04641
...
51
Rim Assembly, 8.0 x 5.38 MTD-934-04319-4042
...
52
Air Valve MTD-934-0255
...
53
Hex Head Screw, 5/16-24, 7.50 MTD-710-0627
...
54
Beveled Washer, .340 x .872 x .060 MTD-736-0242
...
...
...
...
...
