Craftsman 13A226JD099 (247.25000) (2012) RER1000 (2012) Lawn Tractor

Model: 13A226JD099 (247.25000) RER1000 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

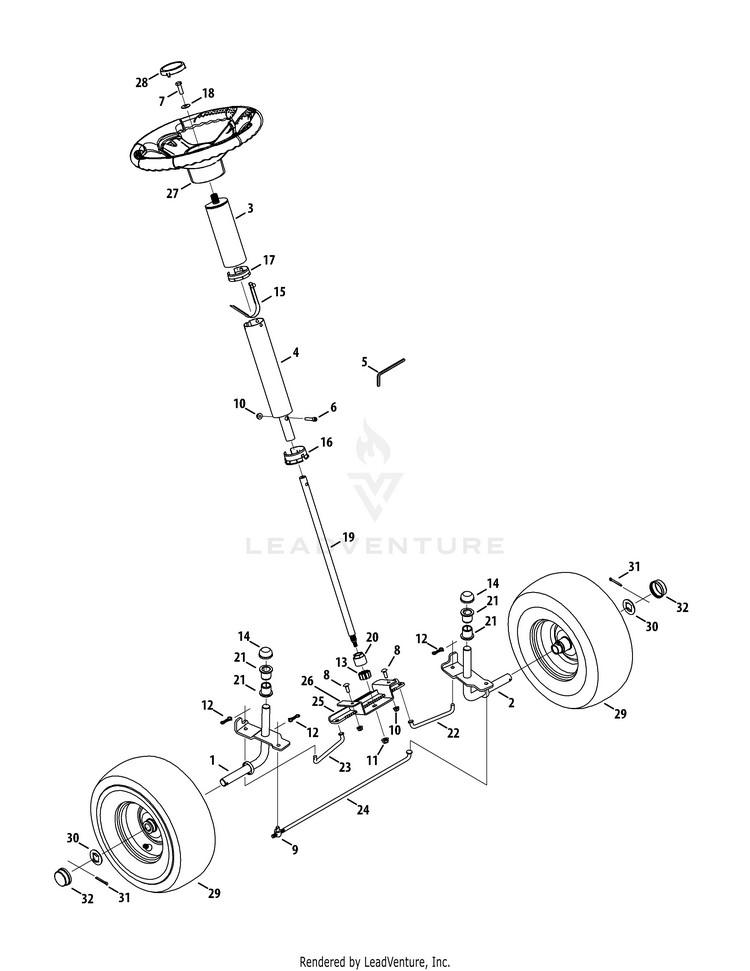

Steering & Front Wheels

...
...
1
Front Axle Assembly, RH MTD-683-04726-0637
...
2
Front Axle Assembly, LH MTD-683-04727-0637
...
3
Upper Tube Assembly MTD-683-04761
...
4
Lower Tube Assembly MTD-683-04762
...
5
Allen Wrench, 3/16 MTD-710-05046
...
6
Screw, 1/4-20 X 1.25 MTD-710-05386
...
7
Hex Head Screw, 5/16-18x1.00 MTD-710-0643
...
8
Carriage Screw, 1/4-20x.75 MTD-710-0703
...
9
Ferrule, 5/16-24 X .312 Dia. MTD-711-04448
...
10
Flange Lock Nut, 1/4-20 MTD-712-04064
...
11
Flange Lock Nut, 3/8-16 MTD-712-04065
...
12
Bow-Tie Cotter Pin MTD-714-04040
...
13
Steering Pinion Gear MTD-717-1554
...
14
Push Cap, 3/4 MTD-726-0341
...
15
Snap Butt MTD-726-04127
...
16
Lower Steering Collar MTD-731-08690
...
17
Upper Steering Collar MTD-731-08691
...
18
Bevel Washer, .340X.872X.060 MTD-736-0242
...
19
STEERING SHAFT MTD-738-04537B
...
20
FLANGE BEARING MTD-741-04542A
...
21
Flange Bearing, .760 X .941 X 1.0 MTD-741-0660A
...
22
Steering Rod, LH MTD-747-05514
...
23
Steering Rod, RH MTD-747-05585
...
24
FRONT TIE ROD MTD-747-05686
...
25
SERVICE KIT (CR12 STREERING) MTD-753-11064D
...
26
SERVICE KIT (CR12 STREERING) MTD-753-11064D
...
27
STEERING WHEEL MTD-631-04008B
...
28
Cap, Steering Wheel (Crafts. logo) MTD-731-06825A
...
29
Wheel Assembly MTD-634-05059
...
29
Tire-13 X 5.0 X 6 (not shown) MTD-734-04640
...
29
Bearing, Flange, .76 ID w/ Lube Fitting (not shown) MTD-741-0990B
...
29
Bearing, Flange, .76 x 1.0 x 1.2 (not shown) MTD-741-0516B
...
30
FLAT WASHER .781 ID x1.590 OD MTD-736-04228B
...
31
Cotter Pin, 5/32 x 1.25 MTD-714-0162
...
32
Hub Cap MTD-931-0484A
...
...
...
...
...
