Craftsman 13A226JD099 (247.25000) (2012) RER1000 (2012) Lawn Tractor

Model: 13A226JD099 (247.25000) RER1000 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

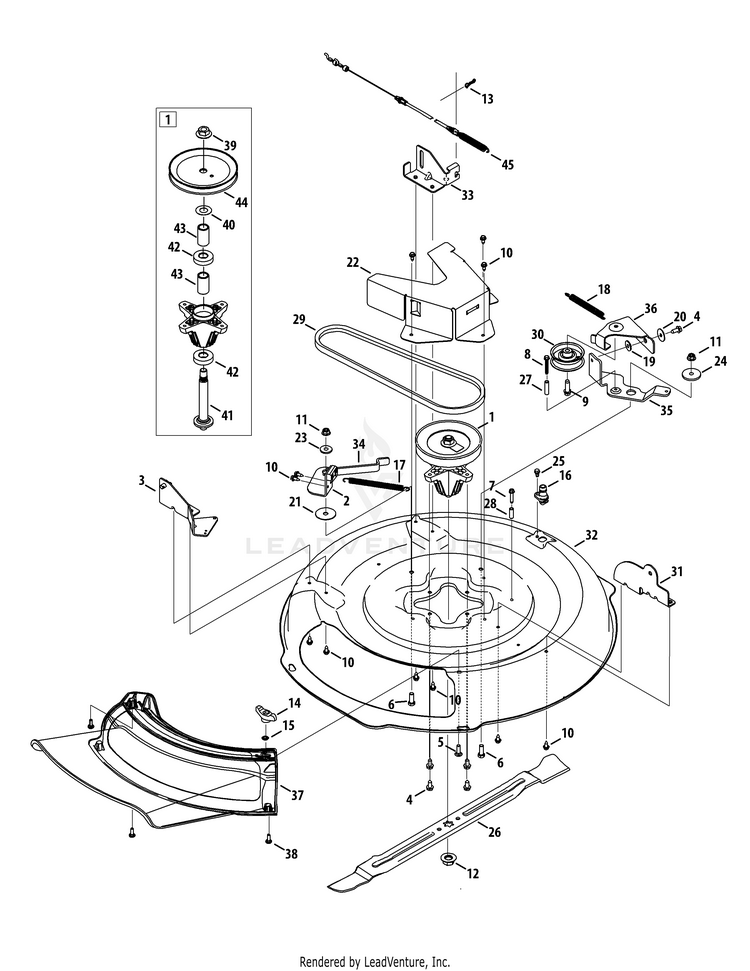

Deck Assembly

...
...
1
SPINDLE ASSEMBLY MTD-918-04822B
...
2
BRAKE PTO BRACKET ASSEMBLY MTD-983-04734
...
3
DECK BRACKET (POWDER BLACK) MTD-683-04782A-0637
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Carriage Screw, 5/16-18x1.00 MTD-710-04998
...
6
Hex Head Screw, 3/8-16x1.00 MTD-710-0514
...
7
Tap Screw, 1/4-20x1.500 MTD-710-0778
...
8
Tap Screw, 1/4-20x1.750 MTD-710-1026
...
9
Tap Screw, 3/8-16x1.250 MTD-710-1315
...
10
Tap Screw, 1/4-20 X .625 MTD-710-1652
...
11
Flange Lock Nut, 3/8-16 MTD-712-04065
...
12
HEX NUT MTD-712-0417A
...
13
Bow-Tie Cotter Pin MTD-714-04040
...
14
Wing Knob, 5/16-18 MTD-720-04122
...
15
Speed Nut, .3125 ID MTD-726-0201
...
16
Deck Wash Nozzle MTD-731-07487
...
17
EXTENSION SPRING MTD-732-04948A
...
18
Ext. Spring, .56 OD X 5.52 LG MTD-732-0814
...
19
Shoulder Bushing, .320 ID X .135 MTD-936-0289
...
20
Flat Washer, .330x1.250x.060 MTD-736-0362
...
21
Thrust Washer, .445X.1.920X.060 MTD-736-0518
...
22
Deck Belt Cover MTD-783-07342-0637
...
23
Shoulder Spacer, .625 ID X .169 MTD-938-0347
...
24
Shoulder Spacer .884 x .190 MTD-738-04162C
...
25
Shoulder Spacer, 1/4-20, 0.50 MTD-738-04278
...
26
Cutting Blade, 30.00" 3-IN-1 MTD-942-04385
...
27
Spacer, .260 X .372 X 1.420 LG MTD-750-04456
...
28
Spacer, .260 x .375 x 1.030 LG MTD-750-0566A
...
29
V-Type Belt, 5L, 45.15 LG MTD-954-04318
...
30
Flat Idler Pulley, 2.75 OD MTD-756-04224
...
31
Front Deck Bracket MTD-783-07004
...
32
KIT-SERVICE DECK REPLA MTD-753-08173
...
33
DECK BRACKET (LH) MTD-783-07184-0637
...
34
Release Brake Bracket MTD-783-07204-0637
...
35
IDLER BRACKET FLOATING MTD-783-07304
...
36
Upper Floating Idler Bracket MTD-783-07306
...
37
Discharge Chute MTD-731-10267
...
38
Shoulder Screw, 1/4-15 x .750 MTD-738-04519
...
39
HEX NUT MTD-712-0417A
...
40
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
41
Spindle Shaft, 6.11 LG. MTD-738-1186A
...
42
BALL BEARING MTD-741P0919B
...
43
Spacer, .792 X 1.060 X 1.860 LG MTD-750-04936
...
44
Deck Pulley, 6.3 DIA MTD-956-1227
...
45
Control Cable MTD-946-04802A
...
...
...
...
...
