Craftsman 13A226JD099 (247.25000) (2012) RER1000 (2012) Lawn Tractor

Model: 13A226JD099 (247.25000) RER1000 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

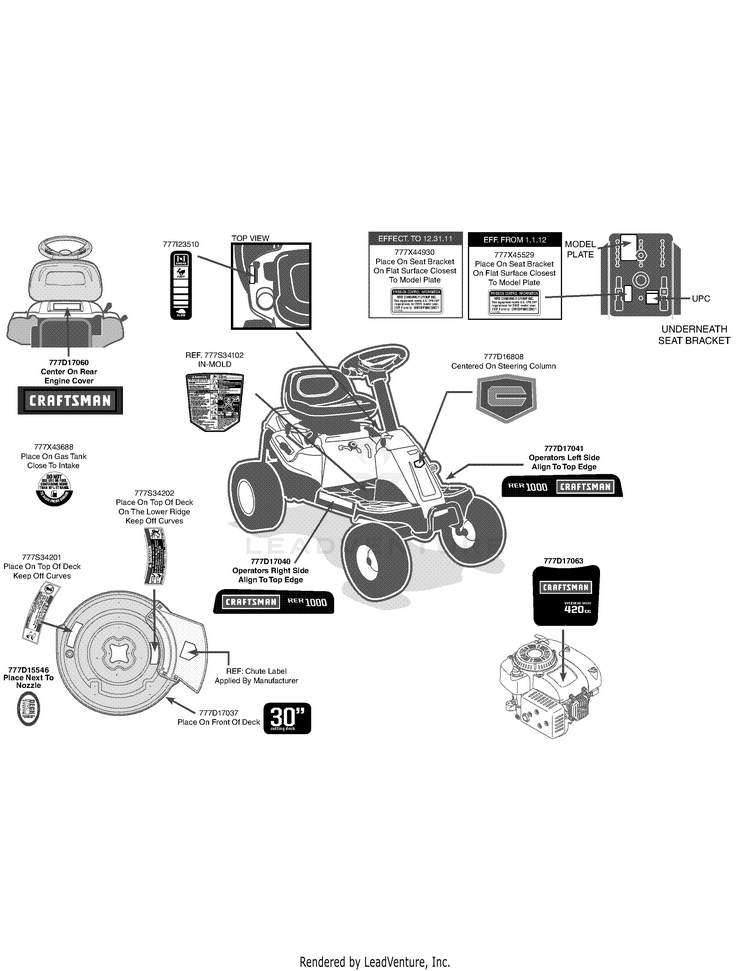

Label Map

...
...
777D17060
LABEL-RIDER FENDER CRAFTSMAN MTD-777D19309
...
777X43688
LABEL-ETHANOL MTD-777X43688
...
777I23510
LABEL-RIDER LT5 THROTTLE MTD-777I23510
...
777S34102
LABEL TRANS MTD-777S34102
...
777D15546
LABEL-DECK WASH BLUE MTD-777D15546
...
777S34201
LABEL:MINI RIDER DK:DO NOT STEP MTD-777S34201
...
777S34202
LABEL:MINI RIDER DK:CUT FINGER MTD-777S34202
...
777D17040
LABEL:RDR:SIDE PNL:RER 1000:OP R MTD-777D17040
...
777D17037
LABEL-RIDER DECK 30" MTD-777D17037
...
777D17063
LABEL-RIDER ENGINE CRAFTSMAN 420CC MTD-777D17063
...
777D17041
LABEL:RDR:SIDE PNL:RER 1000:OP L MTD-777D17041
...
777D16808
LABEL-"C" BADGE FRNT FRAME CRFTMN MTD-777D16808
...
777X44930
LABEL-RDR EMISSIONS 2011 MTD-777X44930
...
777X45529
LABEL-RDR EMISSIONS 2012 MTD-777X45529
...
...
...
...
...
