Craftsman 13A-328-099 (247.27020) (2003) Lawn Tractor

Model: 13A-328-099 (247.27020) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

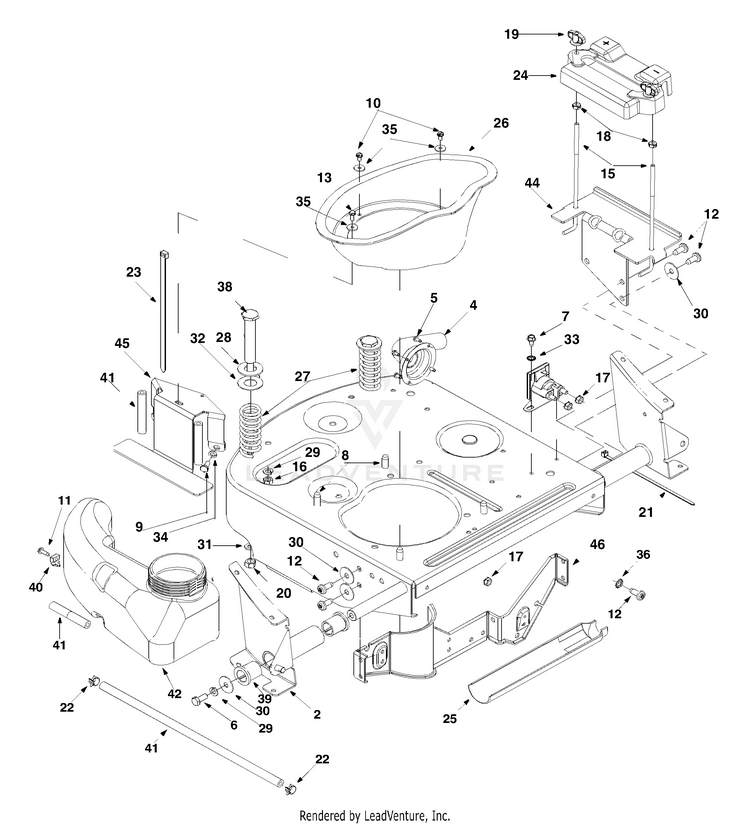

Frame Assembly

...
...
?1
FRAME ASSEMBLY MTD-683-0149B
...
2
RAIL SUPPORT: FRAME ASSEMBLY RH MTD-683-0190A
...
?3
RAIL SUPPORT: FRAME ASSEMBLY LH MTD-683-0191A
...
4
PIPE-MUFFLER EXTENSION MTD-683-0192
...
5
Hex Fl. Screw #8-32 x 0.375 MTD-710-0148
...
6
Hex Screw 5/16-24 x .75" Gr.5 MTD-710-0157
...
7
Self-Tapping Screw MTD-710-0599
...
8
TT Screw 3/8-16 x 1.0" MTD-710-0654A
...
9
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
10
SCREW #10-32 x .38 MTD-710-0871
...
11
TT Screw #10-32 x 0.625" MTD-710-1237
...
12
TT Screw 5/16-18 x 0.75" MTD-710-1611B
...
13
Hex Sems Scr. #10-32 x .62" Lg. MTD-710-0899A
...
15
HOLD DOWN BATTERY ROD MTD-911-0222A
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Hex Sems Nut 1/4-20 MTD-712-0271
...
18
Lock Nut 1/4-20 MTD-712-0291
...
19
Wing Nut MTD-712-0397A
...
20
HEX NUT 3/8-16 GR5 MTD-712-3017
...
21
Cable Tie MTD-725-0157
...
22
Hose Clamp MTD-726-0205
...
23
Cable Tie MTD-726-0230
...
24
BATTERY COVER MTD-731-0708
...
25
Oil Drain Sleeve MTD-731-1682A
...
26
ENGINE DUCT MTD-731-1945A
...
27
Compression Spring MTD-732-3080A
...
28
Rubber Washer MTD-735-0273
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
WASHER-FL NLAUD MTD-936-0123
...
31
Lock Washer MTD-736-0169
...
32
Flat Washer MTD-736-0188
...
33
Lock Washer MTD-736-0222
...
34
L-Wash. 1/4" I.D. MTD-936-0329
...
35
Flat Washer MTD-736-0400
...
36
Lock Washer MTD-736-0607
...
?37
Motor Oil MTD-737-0169
...
38
SHOULDER SCREW MTD-738-0960
...
39
FLANGE BEARING MTD-741-0516B
...
40
Cable Clamp (B&S) MTD-BS-690798
...
41
Fuel Line Hose MTD-751-0535
...
42
FUEL TANK MTD-751-0656
...
42
FUEL CAP MTD-751-0649
...
44
BRACKET MTD-783-0624
...
45
FUEL TANK BRACKET MTD-783-0630C
...
46
TRANSAXLE SUPPORT BRACKET MTD-783-0809B
...
47
BATTERY (not shown) MTD-753-0607
...
...
...
...
...
