Craftsman 13A-328-099 (247.27020) (2003) Lawn Tractor

Model: 13A-328-099 (247.27020) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

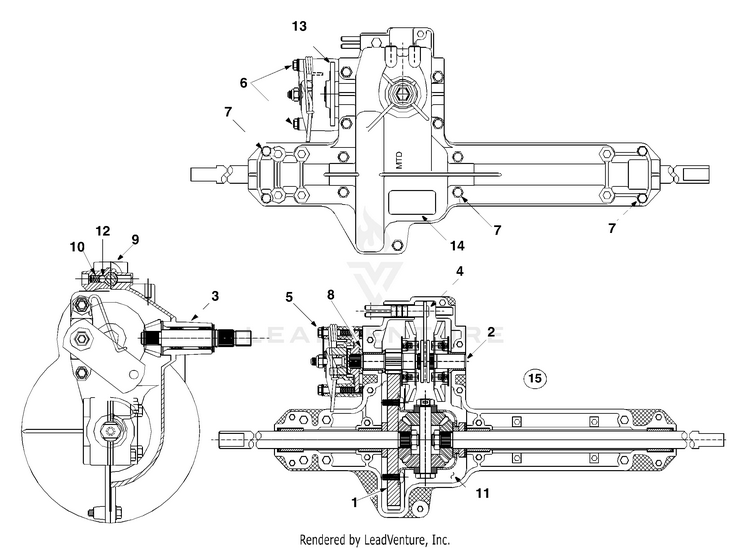

Differential Assembly

...
...
1
DIFFERENTIAL ASSEMBLY MTD-918-04092A
...
2
BRAKE DRIVE SHAFT ASSEMBLY (LH) MTD-618-0248P
...
3
UPPER HOUSING ASSEMBLY MTD-918-0072B
...
4
DETENT SHAFT ASSEMBLY MTD-611-0114
...
5
BRAKE ASSEMBLY (LH) MTD-961-0006
...
6
Hex Washer Hd. TT Screw 1/4-20 x 2.37 Gr.5 MTD-710-1206
...
7
Hex Washer Hd. TT Screw 1/4-20 x 1.65 MTD-710-1325
...
8
BRAKE PUCK MTD-917-0678
...
9
HOUSING-LOWER TRANS NLAUD MTD-719-0313B
...
10
DETENT SHAFT SPRING MTD-932-05125
...
11
Grease, Benalene 8 oz tube MTD-737-0300A
...
12
DETENT BALL .250 MTD-741-0862
...
13
Brake Disc MTD-761-0202
...
14
Label MTD-777-6318
...
15
Transmission Assembly, Complete MTD-918-0251C
...
...
...
...
...
