Craftsman 13A-328-099 (247.27020) (2003) Lawn Tractor

Model: 13A-328-099 (247.27020) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

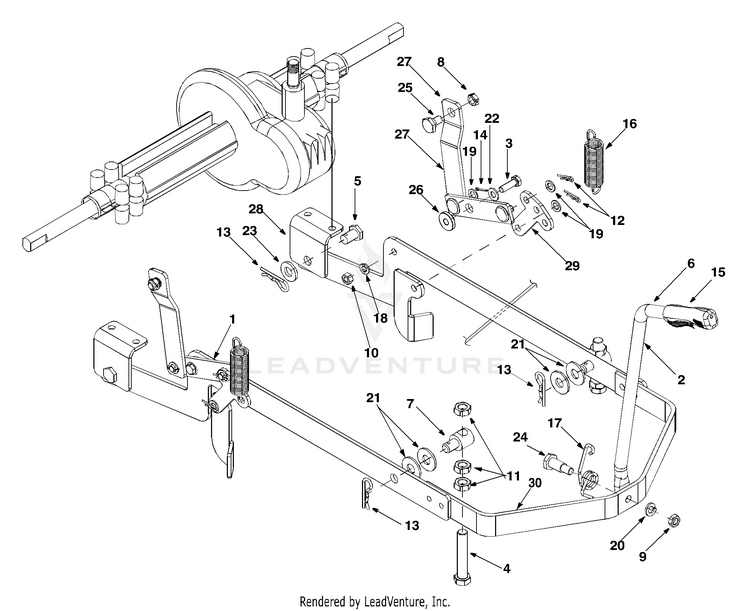

Pivot Link Assembly

...
...
1
LINK ASSEMBLY- MTD-683-0152
...
2
LIFT ARM ASSEMBLY (POWDER BLACK) MTD-683-0194A-0637
...
3
Hex Screw 5/16-18 X 1.00 Gr.5 MTD-710-0376
...
4
Hex Bolt 1/2-13 X 2.75 Gr.5 Spec. MTD-710-3230
...
5
Clevis Pin MTD-911-0332
...
6
LIFT ROD MTD-711-1120
...
7
FERRULE MTD-911-3319
...
8
JAM LOCK NUT MTD-712-0266A
...
9
HEX JAM NUT 3/8-16 GR5 MTD-712-3008
...
10
HEX NUT 5/16-18 MTD-712-3010
...
11
Jam Nut MTD-712-3048
...
12
Cotter Pin MTD-714-0104
...
13
Cotter Pin MTD-714-0147
...
14
Cotter Pin MTD-714-3010
...
15
Handle Grip MTD-720-0298
...
16
EXTENSION SPRING .92OD x 3.77LG MTD-932-0829
...
17
TORSION SPRING MTD-732-0837
...
18
Lock Wash. 5/16" I.D. MTD-936-0119
...
19
Flat Washer .385 I.D. x .620 O.D. MTD-736-0140
...
20
Lock Washer MTD-736-0169
...
21
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
22
FLAT WASHER MTD-736-0275
...
23
Flat Washer MTD-736-3019
...
24
Shoulder Screw MTD-738-0145
...
25
SHOULDER SCREW MTD-738-0183
...
26
Spacer, .50 x .190 x .360 LG MTD-938-0958
...
27
UPPER DECK LINK MTD-783-0435
...
28
REAR AXLE BRACKET MTD-783-0437
...
29
LOWER LINK MTD-783-0440
...
30
LIFT ARM ASSEMBLY (POWDER BLACK) MTD-683-0194A-0637
...
...
...
...
...
