Craftsman 13A-328-099 (247.27020) (2003) Lawn Tractor

Model: 13A-328-099 (247.27020) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

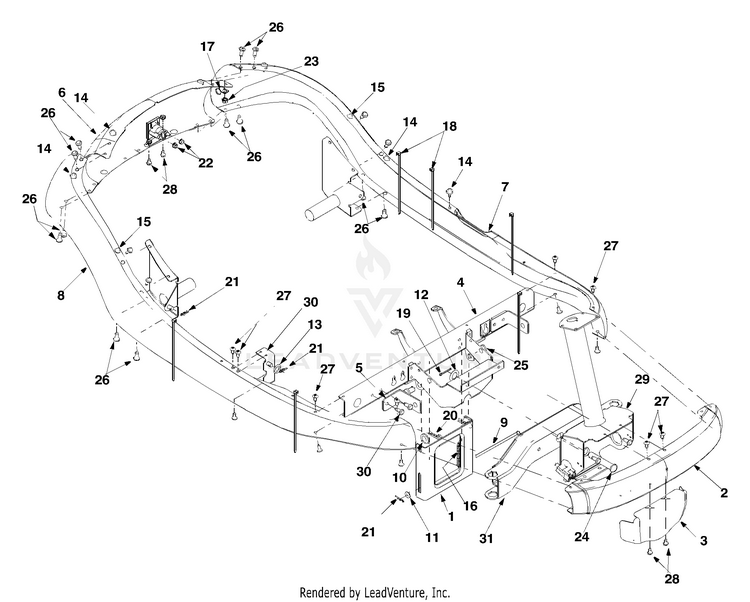

Deck Stabilizer Assembly

...
...
1
STABILIZER BRACKET MTD-783-0605-0637
...
2
UPPER FRAME FRONT MTD-783-0564A
...
3
STEERING COVER MTD-783-0811A
...
4
Front Channel Assembly MTD-683-0264A-0637
...
5
CAM BRACKET MTD-783-0554
...
6
UPPER REAR FRAME MTD-783-0414A
...
7
FRAME RAIL (LH) MTD-783-0413
...
8
FRAME RAIL (RH) MTD-783-0412B
...
9
ROD-DECK .312 DIAX MTD-747-0985
...
10
Flat Washer .531 X 1.062 X .134 MTD-736-3019
...
11
FLAT WASHER MTD-736-0275
...
12
Flat Washer .64 I.D. X 1.24 X .06 MTD-736-0187
...
13
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
14
BUMPER, .62 DIA x .3 MTD-735-0271A
...
15
Rubber Bumper MTD-735-0199A
...
16
EXTENSION SPRING .92OD x 3.77LG MTD-932-0829
...
17
Clamp: 9/16 dia. MTD-726-0272
...
18
Cable Tie MTD-725-0157
...
19
Hairpin Clip MTD-714-0470
...
20
Hairpin Clip MTD-714-0147
...
21
Hairpin Clip MTD-714-0104
...
22
Hex Nut MTD-712-0271
...
23
Hex Nut 1/4-20 MTD-712-0265
...
24
Clevis Pin MTD-711-1165
...
25
Clevis Pin MTD-911-0332
...
26
TT Screw 5/16-18 x .75 MTD-710-1611B
...
27
Torx Mach. AB Scr. 1/4-14 x 0.625" MTD-710-1017
...
28
Hex TT Screw 1/4-20 MTD-710-0599
...
29
STEERING SUPPORT BRACKET MTD-683-0163A
...
30
HOOD BRACKET ASSEMBLY MTD-683-0160
...
31
PIVOT BAR ASSEMBLY MTD-683-0142
...
...
...
...
...
