Craftsman 13A-328-099 (247.27020) (2003) Lawn Tractor

Model: 13A-328-099 (247.27020) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

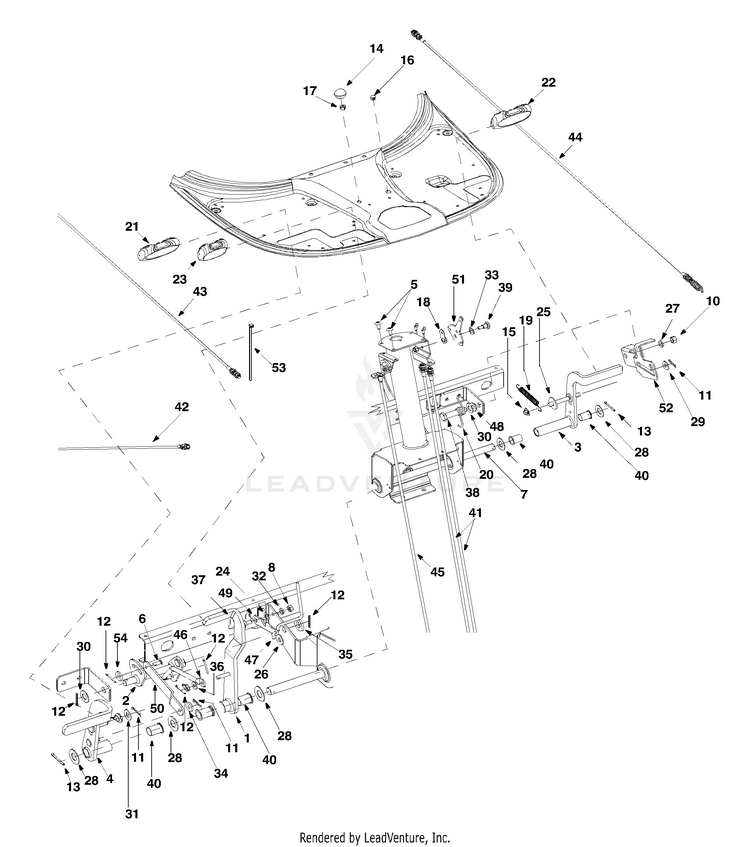

Pedal Assemblies

...
...
1
BRAKE PEDAL ASSEMBLY (POWDER BLACK) MTD-683-0155A-0637
...
2
CAM SHAFT ASSEMBLY (POWDER BLACK) MTD-683-0161-0637
...
3
PEDAL ASSEMBLY MTD-683-0275A
...
4
VARIABLE PEDAL ASSEMBLY(POWDER BLACK) MTD-683-0310A-0637
...
5
Ab Screw 1/4-14 X .625 MTD-710-1017
...
6
Clevis Pin 1/4" Dia. x .53" Lg. MTD-911-0701
...
7
SHAFT MTD-711-1156
...
8
HEX NUT 1/4-20 MTD-912-0287
...
?9
Lock Nut 1/4-20 MTD-712-0324
...
10
HEX NUT 3/8-16 GR5 MTD-712-3017
...
11
Internal Cotter Pin MTD-714-0104
...
12
Hairpin Clip MTD-714-0111
...
13
Hairpin Clip MTD-714-0470
...
14
THROTTLE KNOB MTD-720-0166
...
15
Push Cap MTD-726-0100
...
16
PLUG CAP MTD-726-0450
...
17
BUSHING MTD-731-0405
...
18
STOP LEVER MTD-731-1913
...
19
EXTENSION SPRING MTD-732-0815A
...
20
TORSION SPRING MTD-732-0865
...
21
DRIVEPAD MTD-735-0261
...
22
DECK PAD MTD-735-0262
...
23
BRAKE PAD MTD-735-0263
...
24
Fl-Wash. MTD-936-0117
...
25
Flat Washer .411 x 1.25" x .100 MTD-736-0133
...
26
5/16 Washer MTD-736-0159
...
27
Lock Washer MTD-736-0169
...
28
Flat Washer MTD-736-0187
...
29
Flat Washer MTD-736-0262
...
30
FLAT WASHER .510 x .995 MTD-736-0272
...
31
Flat Washer MTD-736-0300
...
32
L-Wash. 1/4" I.D. MTD-936-0329
...
33
Spr. Wash. 7/16" I.D. MTD-936-0141
...
34
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
35
Flat Washer .531 X 1.062 X .134 MTD-736-3019
...
36
Flat Washer .271 X .630 X .065 MTD-736-3020
...
37
SHOULDER SCREW MTD-938-0255
...
38
Shld. Bolt .498" Dia. x 1.53" MTD-938-0373
...
39
Shoulder Screw .375 X .380 X 1/4-20 MTD-738-0974
...
40
Flange Bearing MTD-741-0591
...
41
Shift Cable MTD-946-0935A
...
42
Variable Drive Cable MTD-946-0936
...
43
Brake Cable MTD-946-0937
...
44
Deck Cable MTD-946-0940
...
45
CHOKE CABLE MTD-946-0964
...
46
BRAKE ROD MTD-747-0963A
...
47
BRAKE LOCKOUT ROD MTD-747-0964
...
48
SPACER MTD-950-0736
...
49
BRAKE LOCK BRACKET MTD-783-0473-0637
...
50
VARIABLE SPEED LINK MTD-783-0525-0637
...
51
Shift Lever MTD-783-0593A
...
52
LOCK PEDAL BRACKET MTD-783-0794-0637
...
53
Cable Tie MTD-726-0157
...
54
SPRING WASHER BELL MTD-736-0270
...
...
...
...
...
