Craftsman 13A-328-099 (247.27020) (2003) Lawn Tractor

Model: 13A-328-099 (247.27020) (2003)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

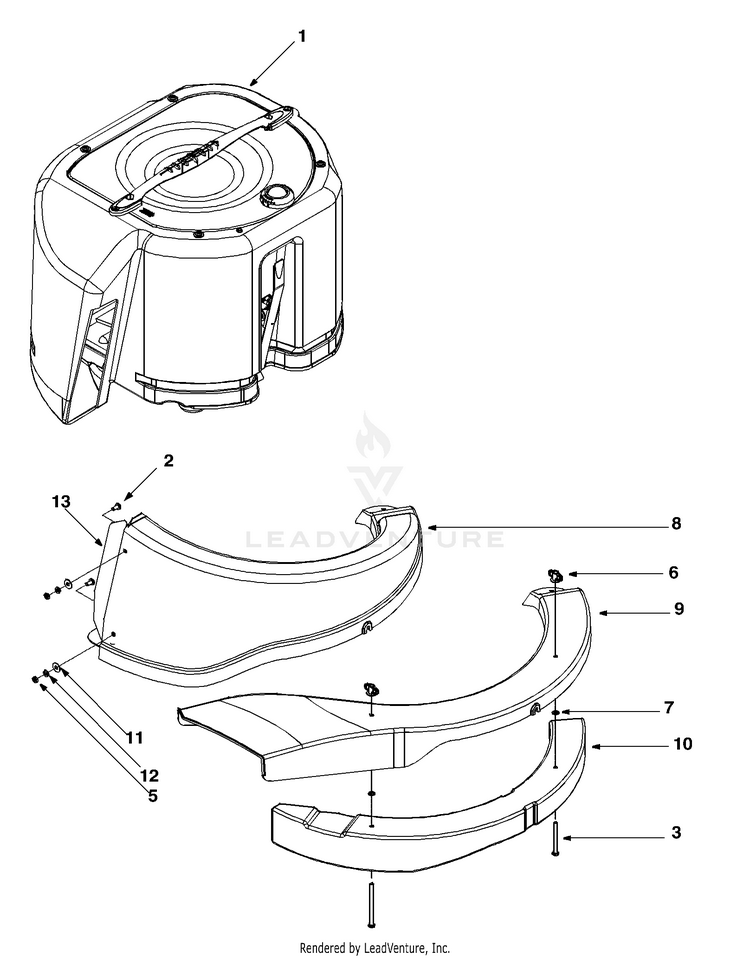

Grass Bag Assembly

...
...
1
GRASSBAG ASSEMBLY MTD-631-0084
...
2
Pan Hd. Machine Screw 1/4-20 x 0.5 MTD-710-0286
...
3
Hex Screw 1/4-20 x 2.75 MTD-710-0564
...
?4
Hex Screw 1/4-20 x 3.75 MTD-710-0825
...
5
Hex Jam Nut 1/4-20 Thd. MTD-912-0298
...
6
Wing Nut MTD-712-0397A
...
7
PUSH CAP MTD-926-0271
...
8
DISCHARGE CHUTE MTD-731-1743A
...
9
SIDE DISCHARGE CHUTE MTD-731-1744
...
10
MULCH PLUG MTD-731-1745A
...
11
Flat Washer MTD-736-0173
...
12
L-Wash. 1/4" I.D. MTD-936-0329
...
13
PLATE-CHUT MTD-783-0645A
...
...
...
...
...
