Craftsman 132PA1ZS099 (247.270381) (T7800) (2019) Lawn Tractor

Model: 132PA1ZS099 (247.270381) (T7800) (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

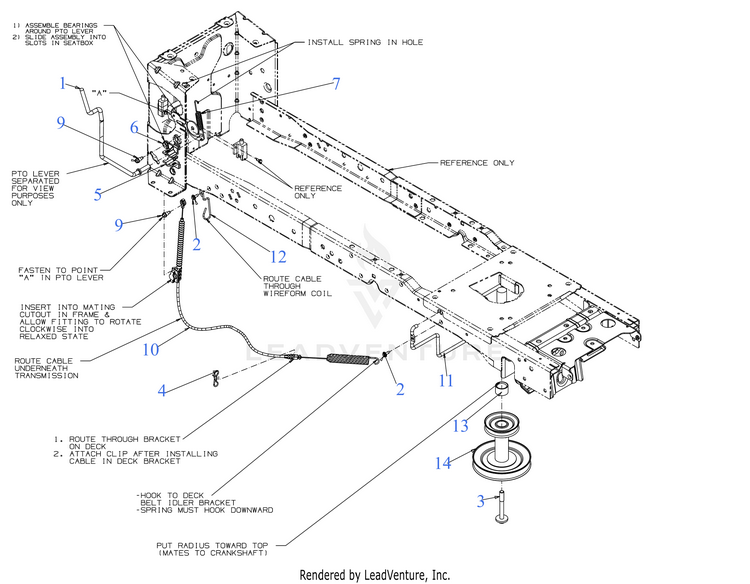

Manual PTO

...
...
1
PTO HANDLE ASSEMBLY MTD-983-05105A
...
2
SCREW M6-1 x .625 MTD-710-06133
...
3
SCREW 7/16-20 x 3.50 MTD-710-06266
...
4
BOW TIE COTTER PIN MTD-714-05005
...
5
PTO HANDLE BOTTOM BEARING MTD-731-10066A
...
6
PTO HANDLE TOP BEARING MTD-731-10067C
...
7
EXTENSION SPRING .56 OD x 4.52 MTD-732-05119
...
9
SHOULDER SCREW MTD-738-04425
...
10
PTO HANDLE CABLE MTD-946-05087D
...
11
BELT KEEPER ROD MTD-747-06239B
...
12
CABLE GUIDE WIRE MTD-747-06308
...
13
ENGINE PULLEY SPACER MTD-748-05078A
...
14
ENGINE PULLEY (3.56 x 6.12 DIA) MTD-956-04067B
...
...
...
...
...
