Craftsman 131278XS099 (247.273270) (T1100) (2018) Lawn Tractor

Model: 131278XS099 (247.273270) (T1100) (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

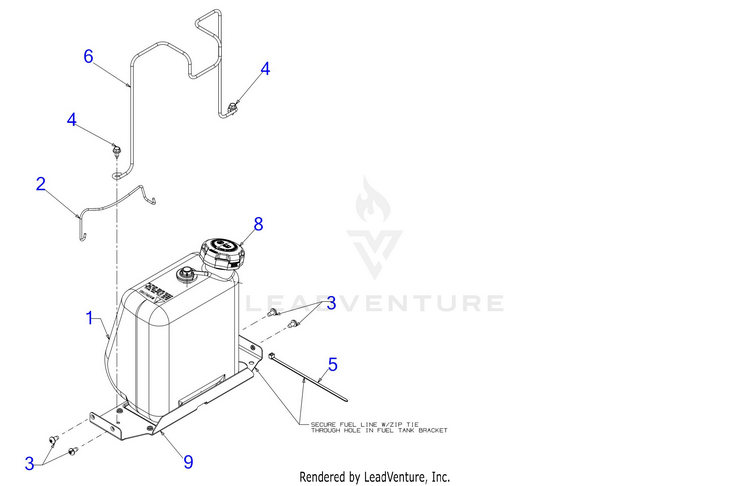

Fuel Tank

...
...
1
FUEL TANK (1.36 GAL) MTD-651P08849
...
1
RUBBER GROMMET 23.0 ID x 35.5 OD (Not Shown) MTD-735-04081
...
1
ROLLOVER FUEL VALVE (Not Shown) MTD-751-12118
...
2
BATTERY ROD ASSEMBLY MTD-747-04744A
...
3
SCREW 1/4-20 x .5 MTD-710-05070A
...
4
SCREW 1/4-20X.625 MTD-710-1652
...
5
7" CABLE TIE MTD-725-0157
...
6
FUEL TANK SUPPORT ROD - MTD-747-05371
...
8
FUEL CAP W/12"TETHER VENTED MTD-951-12179C
...
9
FUEL TANK BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-07083A
...
xx
VENT HOSE 3/16 ID (Not Shown) MTD-751-12089-28
...
...
...
...
...
