Craftsman 12A-764M099 (247.887330) (2010) Self-Propelled Walk-Behind Mower

Model: 12A-764M099 (247.887330) (2010)

Save
 Part Not Listed?Part Not Listed?

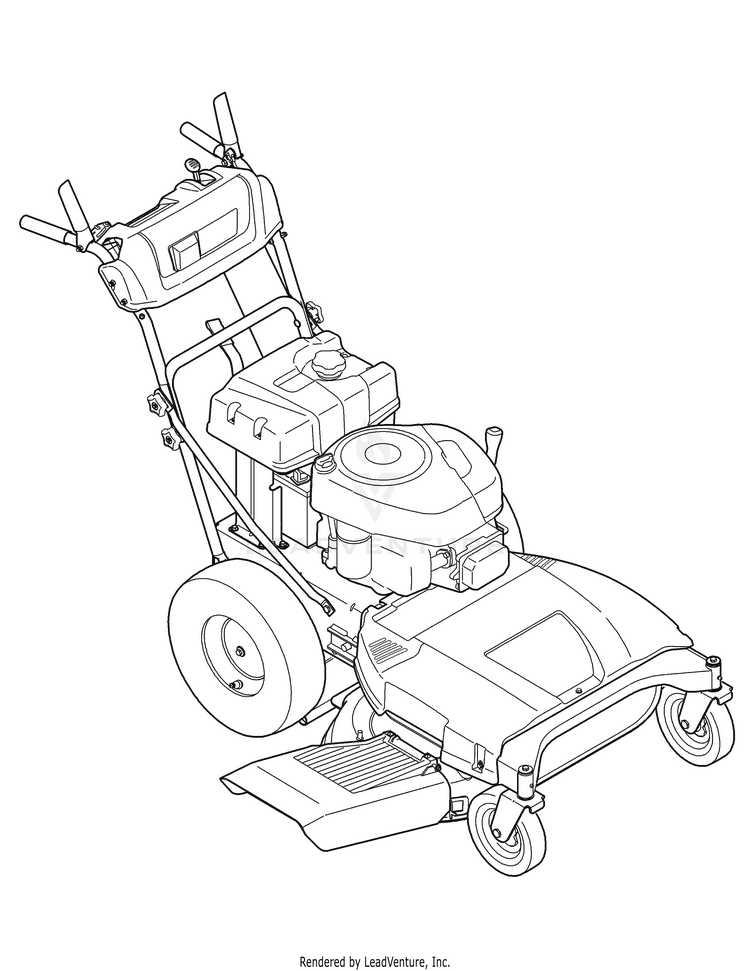

product name

.Quick Reference

...
...
xx
Spark Plug MTD-759-3336
...
xx
Pre Filter MTD-BS-697292
...
xx
AIR CLEANER ELEMENT MTD-BS-794421
...
xx
Fuel Filter MTD-951-3013
...
xx
Fuel Cap MTD-951-10514
...
xx
WHEEL CLUTCH CABLE KIT MTD-753-08265A
...
xx
TRANSMISSION BRAKE CABLE (RH) MTD-946-05076A
...
xx
TRANSMISSION BRAKE CABLE (LH) MTD-946-05077A
...
xx
THROTTLE/CHOKE CABLE 38" x 1.1 MTD-946-04604A
...
xx
CABLE KIT-BLD CONT MTD-753-08266
...
xx
Drive Spindle Assembly MTD-918-04438C
...
xx
Spacer Spindle Assembly MTD-918-04439C
...
xx
Blade MTD-942-04154A
...
xx
Nut, Hex, M16-1.5 MTD-712-0641
...
xx
Wheels - Front MTD-734-04243
...
xx
Wheels - Rear MTD-634-04285-0911
...
xx
Trailshield MTD-731-05766
...
xx
Discharge Chute MTD-931-04244
...
xx
Mulch Plug MTD-631-04252
...
xx
Key MTD-925-1745A
...
xx
Key Switch MTD-925-1741
...
xx
BATTERY MTD-925-1707D

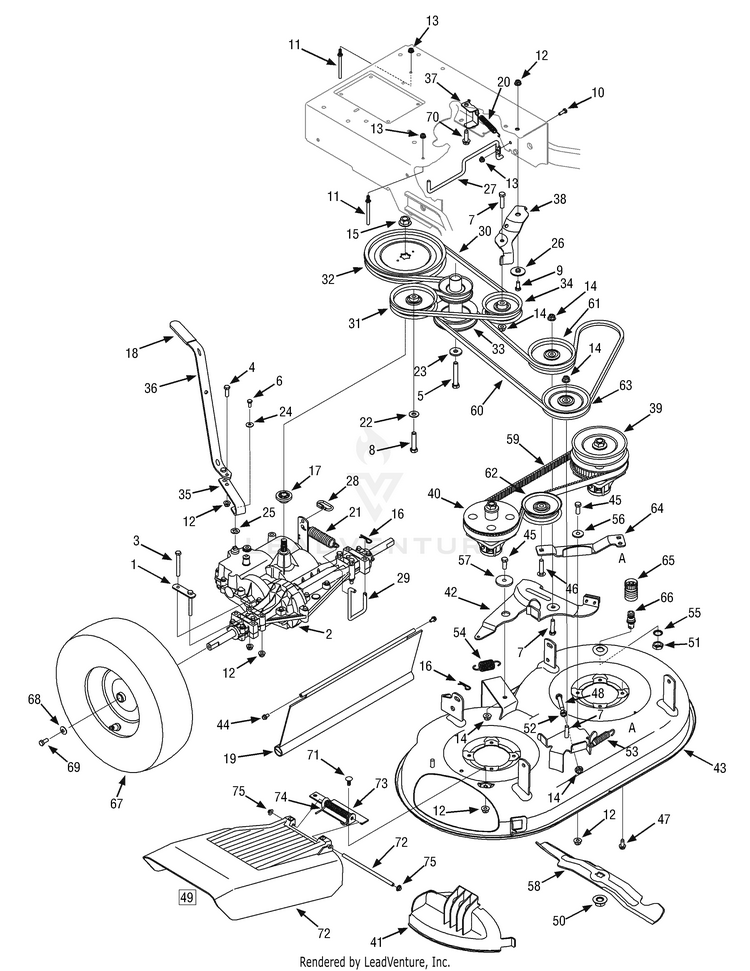

Deck & Drive

...
...
1
Transaxle Bracket Mount MTD-17840-0637
...
2
Transmission 4-Speed MTD-918-04639
...
3
Screw, HH Cap: 5/16-18 x 2.75" MTD-710-0176
...
4
Screw, HH Cap: 5/16-18 x 1.00" MTD-710-0376
...
5
Screw, HH Cap: 7/16-20 x 2.75" MTD-710-04377
...
6
BOLT 1/4-28 X .625 GR8 MTD-710-0513A
...
7
Screw, HH Cap: 3/8-16 x 1.50" MTD-710-0520
...
8
Screw, HH Cap: 3/8-16 x 1.75" MTD-710-0347
...
9
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
10
Screw, HH Cap: 1/4-20 x .75" MTD-710-3015
...
11
Belt Keeper MTD-911-1000
...
12
Nut, Flange Lock: 5/16-18 MTD-712-04063
...
13
Nut, Flange Lock: 1/4-20 MTD-712-04064
...
14
Nut, Flange Lock: 3/8-16 MTD-712-04065
...
15
Nut, Flange: 9/16-18 MTD-712-0700
...
16
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
17
Pulley Hub MTD-718-04407
...
18
Grip MTD-720-0142
...
19
Trailing Shield MTD-731-05766
...
20
Extension Spring MTD-732-04409
...
21
Extension Spring MTD-732-04443A
...
22
Washer, Spring: .401" x .870" x .063" MTD-736-0105
...
23
Washer, Flat: 450" x 1.250" x .164" MTD-736-0322
...
24
SPRING WASHER BELL MTD-736-0270
...
25
Washer, Flat: .39" x .87" x .06" MTD-736-04256
...
26
Spacer, Shoulder: .50" x .1475" MTD-738-04166
...
27
Belt Keeper Rod MTD-747-04635A
...
28
Tri-Link Coupling MTD-747-05571
...
29
Trans Mount Rod MTD-747-04678A
...
30
Belt, V Type, Drive Belt MTD-954-04145A
...
31
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
32
Flat Sheave 7.75" MTD-756-04258
...
33
Engine Pulley 3.20" x 4.35" Dia. MTD-756-04260
...
34
Idler Pulley 3.50" Dia. MTD-756-04280A
...
35
Shift Rod, Lower MTD-787-01469B-4044
...
36
Shift Rod, Upper MTD-787-01470A-0637
...
37
Belt Keeper MTD-787-01473A-0637
...
38
Wheel Drive idler Bracket MTD-787-01523A
...
39
Drive Spindle Assembly MTD-918-04438C
...
40
Spacer Spindle Assembly MTD-918-04439C
...
41
Mulch Plug MTD-631-04252
...
42
Idler Arm Assembly MTD-987-02420
...
43
Deck Assembly 33-inch MTD-687-02476-4044
...
44
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
45
Screw, HH Cap: 3/8-16 x 1.00" MTD-710-0514
...
46
Screw, Carriage: 3/8-16 x 1.75" MTD-710-0560
...
47
SCREW 5/16-18 x .750 MTD-710-04484
...
48
Screw, HH Cap: 3/8-16 x 2.00" MTD-710-3184A
...
49
Chute Deflector Assy (includes ref. 72-76) MTD-931-04244
...
50
HEX NUT MTD-712-0417A
...
51
Nut, Hex, M16-1.5 MTD-712-0641
...
52
Nut, Hex 3/8-16 MTD-912-3017
...
53
Extension Spring: Timing Belt Tension MTD-732-04406
...
54
Extension Spring: Deck Brake MTD-732-04452
...
55
Washer, Lock MTD-736-0225
...
56
Spacer, Shoulder: .625" x .169" MTD-938-0347
...
57
Shoulder Spacer .884 x .190 MTD-738-04162C
...
58
Blade: 17.9" MTD-942-04154A
...
59
Belt, Timing MTD-754-04136
...
60
Belt, V Type, Deck Engagement Belt MTD-954-04139
...
61
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
62
Idler Pulley 3.50" Dia. MTD-756-04280A
...
63
Idler Pulley V-Type 5.0" MTD-756-0616
...
64
Idler Timing Bracket MTD-787-01440-0637
...
65
Water Nozzle Adapter MTD-921-04041
...
66
Water Nozzle MTD-737-04003D
...
67
Wheel 16 x 4 x 8 MTD-634-04285-0911
...
68
Washer, Bell: .340" x .872" x .060" MTD-736-0242
...
69
Screw, HH Cap: 5/16-24 x .75" MTD-710-0627
...
70
Screw, TT: 3/8-16 x 1.25" MTD-710-1315
...
71
Bolt, Carriage: 5/16-18 x .75" MTD-710-0451
...
72
Deflector Pin MTD-711-04027
...
73
Deflector Hinge Bracket MTD-787-01017A-0637
...
74
Deflector Torsion Spring MTD-732-04012
...
75
PUSH CAP MTD-726-04009A
...
76
Chute Deflector, 33" SD Deck Order Ref No. 49 MTD-NA
...
xx
Label Chute Deflector Not Shown MTD-977S30145

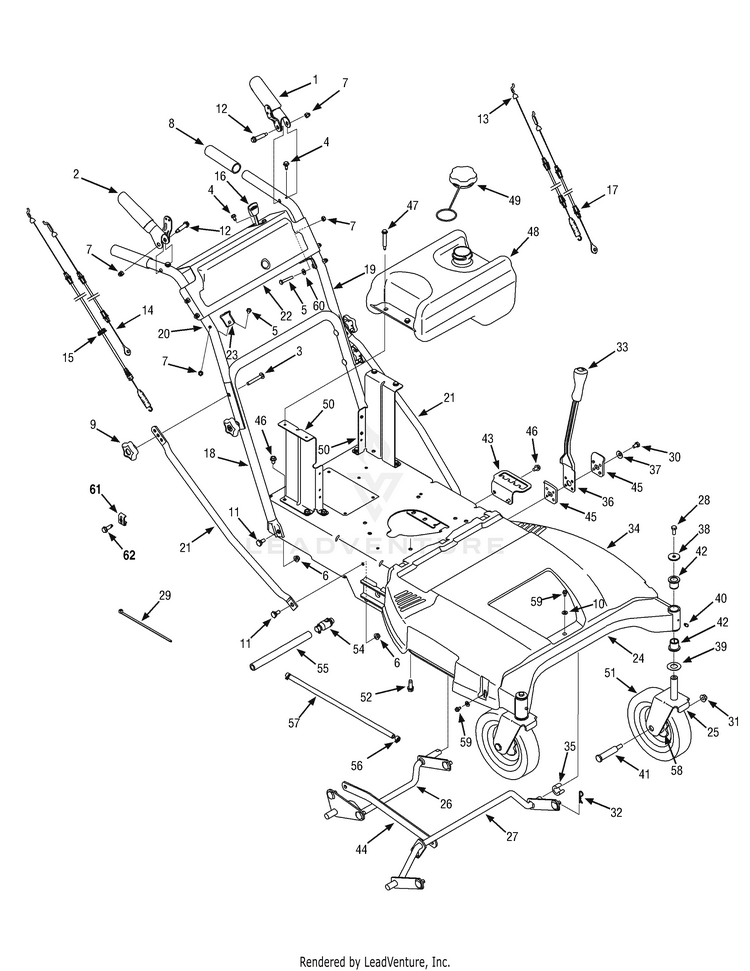

Handle & Frame

...
...
1
LEVER ASSEMBLY (LH) MTD-687P02427C
...
2
LEVER ASSEMBLY (RH) MTD-687P02426C
...
3
Screw, Carriage: 5/16-18 x 2.25" MTD-710-0572
...
4
Screw, TT: 1/4-20 x 0.500" MTD-710-0599
...
5
Screw, HH Cap: 1/4-20 x 1.50" MTD-710-0606
...
6
Nut, Flange Lock: 5/16-18 MTD-712-04063
...
7
Acorn Lock Nut 1/4-20 MTD-712-0442
...
8
Grip: 1.0" ID x 5.0" Lg MTD-720-0274
...
9
Star Knob 5/16-18 MTD-720-04072A
...
10
Fl-Wash. .280" I.D. x .620" O.D. MTD-736-0463
...
11
Shoulder Bolt 7/16" Dia. x 1.75" MTD-738-0140
...
12
Shoulder Screw MTD-738-1226
...
13
WHEEL CLUTCH CABLE KIT MTD-753-08265A
...
14
TRANSMISSION BRAKE CABLE (RH) MTD-946-05076A
...
15
CABLE KIT-BLD CONT MTD-753-08266
...
16
THROTTLE/CHOKE CABLE 38" x 1.1 MTD-946-04604A
...
17
TRANSMISSION BRAKE CABLE (LH) MTD-946-05077A
...
18
Lower Handle MTD-749-04330-0637
...
19
UPPER HANDLE (LH) (POWDER BLACK) MTD-749-04331-0637
...
20
Upper Handle: RH MTD-749-04332-0637
...
21
Brace Tube MTD-749-04333-0637
...
22
Handle Panel MTD-787-01540-4044
...
23
Cable Mount Bracket: RH MTD-787-01490A-0637
...
23
Cable Mount Bracket: LH MTD-787-01491A-0637
...
24
FRAME ASSEMBLY (CRAFTSMAN RED) MTD-687-02591C-4044
...
25
Caster Wheel Bracket Assembly MTD-687-02263-4044
...
26
PIVOT LEVER KIT MTD-753-11476
...
27
Deck Lift Assembly: Front MTD-687-02265-0637
...
28
Screw, HH Cap: 5/16-24 x .750" MTD-710-0627
...
29
Cable Tie,3/16 x .05 x 7.4 MTD-725-0157
...
30
Screw, HH Cap: 5/16-18 x .50" MTD-710-04312
...
31
Nut, Flange Lock: 3/8-16 MTD-712-04065
...
32
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
33
Handle Grip 1/2" MTD-720-0311
...
34
Belt Cover 33" Wide Cut Mower MTD-931-05684
...
35
Snap Spacer: .63" ID x .75" LG MTD-731-05791
...
36
DECK HEIGHT LEVER MTD-732-04418C
...
37
Washer, Bell: .340" x .872" x .060" MTD-736-0242
...
38
Washer, Flat: .330" x 1.25" x .120" MTD-736-0343
...
39
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
40
Lube Fitting: 3/16: LNC #70 MTD-937-3000
...
41
Bolt, Shoulder: .625" x 2.515" x 3/8-16 MTD-738-04216A
...
42
Flange Bearing: .760" x .941" x 1.0" MTD-741-0660A
...
43
Height Adjustment Bracket MTD-787-01496-4044
...
44
Link Pivot Bracket MTD-787-01510-0637
...
45
PIVOT LEVER BRACKET (POWDER BLACK) MTD-787-06323-0637
...
45
PIVOT LEVER KIT MTD-753-11476
...
46
Screw, TT: 5/16-18 x .625" MTD-710-0604A
...
47
Shoulder Screw MTD-738-1225
...
48
Fuel Tank, 2 Gal. MTD-951-10480
...
49
Fuel Cap MTD-951-10514
...
50
FUEL TANK BRACKET (CRAFTSMAN RED) MTD-787-01507B-4044
...
51
Wheel, 8" x 1.75" MTD-734-04243
...
52
Screw, TT: 3/8-16 x 1.25" MTD-710-1315
...
54
Oil Drain MTD-951-10517A
...
55
Oil Drain Hose MTD-751-3141-14
...
56
Hose Clamp MTD-726-0205
...
57
FUEL HOSE 1/4-36" MTD-751-22813-36
...
58
Flange Bearing, .635" MTD-941-0706
...
59
Screw, 1/4-14 x .625 MTD-710-0896
...
60
SPRING WASHER BELL MTD-736-0270
...
61
Casing Clamp MTD-751B221535
...
62
Screw, 10-32 X .625 MTD-710-1237

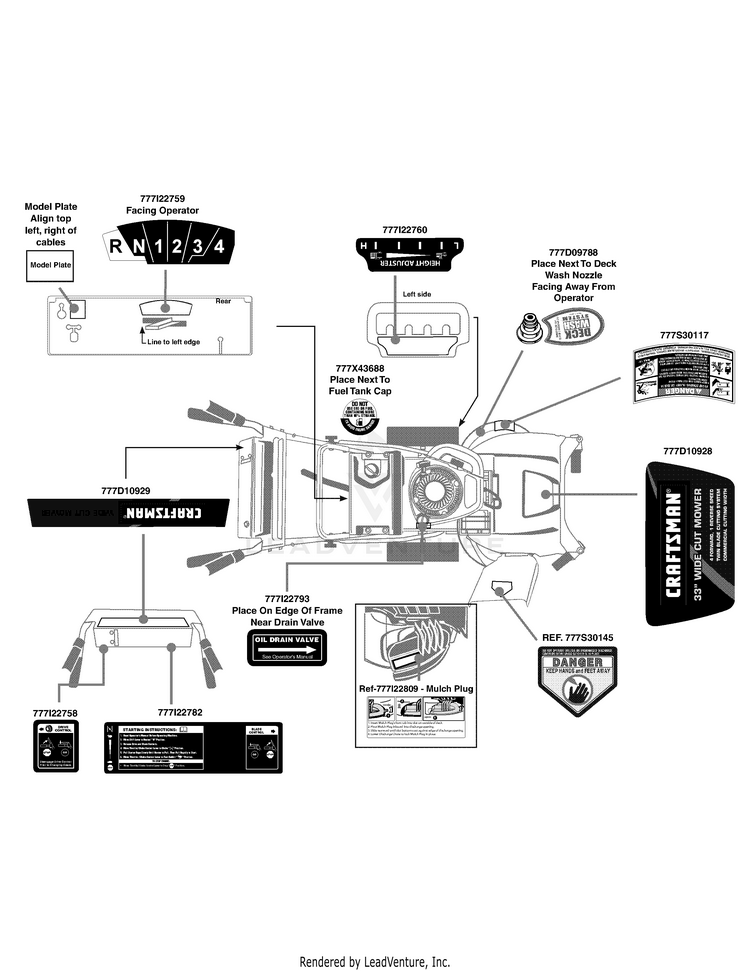

Label Map

...
...
777I22759
LABEL-SPEED INDICATE MTD-777I22759
...
777D10929
LABEL-CRAFTSMAN HNDL PNL MTD-777D10929
...
777I22758
LABEL-DRIVE CNTRL MTD-777I22758
...
777I22782
LABEL-BLADE CNTRL/STARTING MTD-777I22782
...
777I22793
LABEL-OIL DRAIN VLV MTD-777I22793
...
777I22809
LABEL-MULCH PLUG MTD-777I22809
...
777S30145
LABEL MTD-977S30145
...
777D10928
LABEL-CRAFTSMAN 33" MTD-777D10928
...
777S30117
LABEL-DANGER MWR DECK MTD-777S30117
...
777D09788
LABEL:RIDER:WHITE MTD-777D09788
...
777I22760
LABEL-HEIGHT ADJUST MTD-777I22760
...
777X43688
LABEL-ETHANOL MTD-777X43688

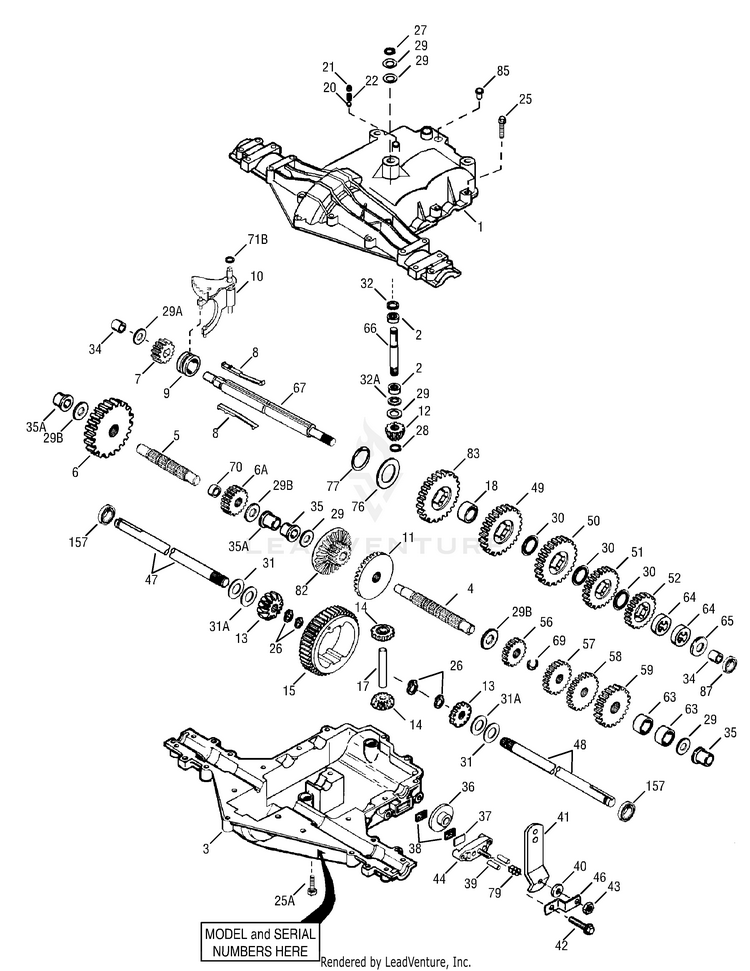

Transmission

...
...
1
COVER-TRNSAXLE UPP MTD-TC-772157A
...
2
THRUST BEARING MTD-TC-780086
...
3
CASE-TRANSAXLE LOWER MTD-TC-770148A
...
4
COUNTERSHAFT MTD-TC-776395
...
5
OUTPUT SHAFT MTD-TC-776409
...
6
SPUR GEAR 38T MTD-TC-778364
...
6A
SPUR GEAR 15T MTD-TC-778369
...
7
SPUR GEAR 11T MTD-TC-778330
...
8
KEY SET-SHIFT MTD-TC-792180A
...
9
COLLAR-SHIFTER MTD-TC-784352
...
10
FORK-SHIFT W/ROD MTD-TC-784378A
...
11
BEVEL GEAR 30T MTD-TC-778334
...
12
GEAR-INPUT PINION MTD-TC-778309
...
13
GEAR SET-BEVEL 13 MTD-TC-778368
...
14
GEAR SET-BEVEL 13 MTD-TC-778368
...
15
RING GEAR 43T MTD-TC-778370
...
17
PIN-DRIVE MTD-TC-786188
...
18
SPACER 1.130 x .6 MTD-TC-786102
...
20
BALL-5/16 GRADE 20 MTD-TC-792077A
...
21
SCREW-SET 3/8-16X3 MTD-TC-792211
...
22
SPRING MTD-TC-792079
...
25
HEX SCREW HD TAP-1 MTD-TC-792073A
...
25A
HEX SCREW 1/4-20X MTD-TC-792177
...
26
RING-RETAINER (SET MTD-TC-792125
...
27
Retaining Ring MTD-TC-792035
...
28
E-RINGXT RET .521 MTD-TC-788040
...
29
THRUST WASHER MTD-TC-780072
...
29A
WASHER MTD-TC-780160
...
29B
WASHER,THRUST MTD-TC-780051
...
30
Shift Washer (Cupped) MTD-TC-780108
...
31
WASHER MTD-TC-780001
...
31A
FLAT WASHER (.062) MTD-TC-780195
...
32
OIL SEAL 5/8 MTD-TC-788083
...
32A
RING-QUAD MTD-TC-792001
...
34
BUSHING (.563) MTD-TC-780194
...
35
FLANGED BUSHING MTD-TC-780210
...
35A
FLANGED BUSHING MTD-TC-780197
...
36
BRAKE DISK MTD-TC-790075
...
37
PLATE-BRAKE PAD MTD-TC-790007
...
38
BRAKE PAD KIT (1 PKG = 2 PADS ) MTD-TC-799021
...
39
DOWEL PIN MTD-TC-786026
...
40
Washer .312" ID .059" MTD-736-3078
...
41
BRAKE LEVER MTD-TC-790104
...
42
HEX SCREW 1/4-20X MTD-TC-792177
...
43
Lock Nut 5/16-24 MTD-912-0237
...
44
HOLDER-BRAKE PAD MTD-TC-790025
...
46
BRACKET-BRAKE LEVE MTD-TC-786086
...
47
AXLE SHAFT (LH) MTD-TC-775146
...
48
AXLE SHAFT (RH) MTD-TC-775147
...
49
SPUR GEAR 27T MTD-TC-778338
...
50
SPUR GEAR 22T MTD-TC-778342
...
51
SPUR GEAR 19T MTD-TC-778313
...
52
SPUR GEAR 16T MTD-TC-778350
...
56
SPUR GEAR 13T MTD-TC-778337
...
57
SPUR GEAR 18T MTD-TC-778341
...
58
SPUR GEAR 21T MTD-TC-778351
...
59
SPUR GEAR 24T MTD-TC-778349
...
63
SPACER-COUNTERSHAF MTD-TC-786071
...
64
SPACER-BRAKE SHAFT MTD-TC-786072
...
65
WASHER .563 ID MTD-TC-780189
...
66
SHAFT-TRNSMISN INP MTD-TC-776472
...
67
SHAFT-SHIFTER/BRAK MTD-TC-776396
...
69
RETAINING RING MTD-TC-792170
...
70
SPACER-OUTPUT SHAF MTD-TC-786187
...
71B
O-RING MTD-TC-788092
...
76
THRUST WASHER MTD-TC-780090
...
77
RETAINING RING MTD-TC-788078A
...
79
SPRING MTD-TC-792144
...
82
BEVEL GEAR & SPUR MTD-TC-778333
...
83
SPUR GEAR 27T MTD-TC-778338
...
85
PLUG-PIPE MTD-TC-792154
...
87
OIL SEAL MTD-TC-788089A
...
157
