Craftsman 12A-147H099 (247.376381) (1997) Self-Propelled Walk-Behind Mower

Model: 12A-147H099 (247.376381) (1997)

Save
 Part Not Listed?Part Not Listed?
product name

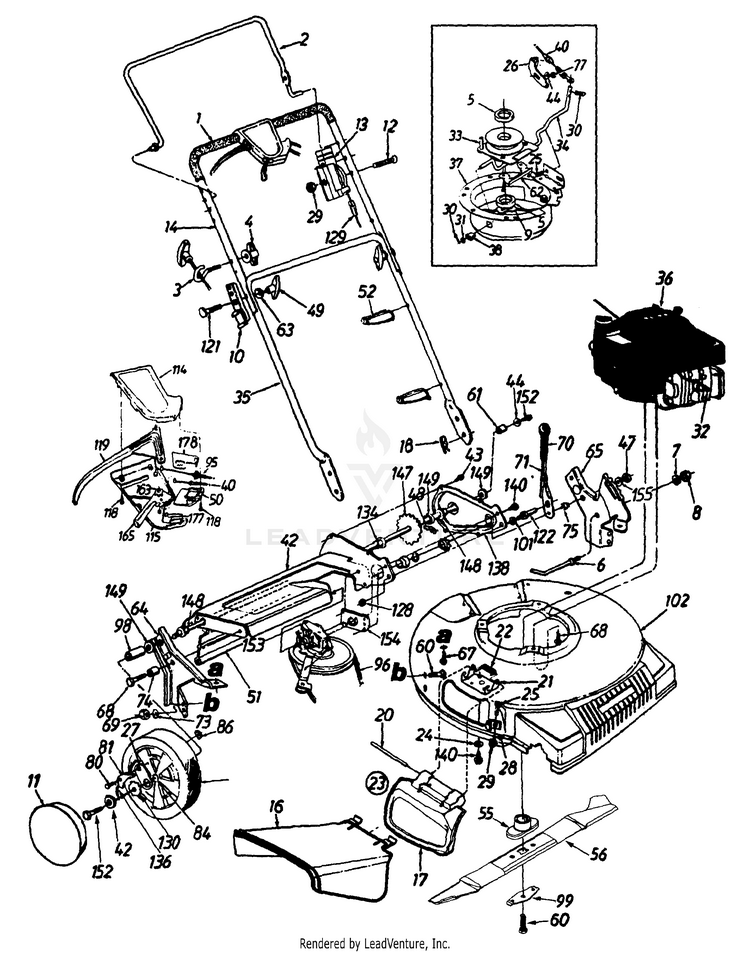

General Assembly

...
...
1
FOAM GRIP - 9" (2 Req'd.) MTD-720-0294A
...
2
Std. Control Handle MTD-747-0824B-0637
...
3
Rope Guide MTD-710-1205
...
4
Wing Nut 1/4-20 Thd. MTD-720-0279
...
5
SPACER MTD-950-0968
...
6
BELT GUARD MTD-747-0855
...
7
L-Wash. 1/4" I.D. (Common Hardware - May Be Purchased Locally.) MTD-936-0329
...
8
HEX NUT 1/4-20 (Common Hardware - May Be Purchased Locally.) MTD-912-0287
...
9
Wave Wash. .88" I.D. x 1.38" O.D. MTD-736-0526
...
10
HANDLE BRACKET MTD-782-7007
...
11
Hub Cap MTD-731-0981C
...
12
SCREW 1/4-20 x 1.310 MTD-710-1270
...
13
Throttle Body MTD-746-0883
...
14
UPPER HANDLE MTD-749-0539C-0637
...
16
Side Discharge Deflector MTD-731-1409B
...
17
Mulch Plug MTD-731-1501
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
20
Hinge Pin MTD-747-0710A
...
21
MOUNTING BRACKET MTD-782-7006
...
22
Torsion Spring MTD-932-0731
...
23
MULCH PLUG ASSEMBLY (Incl. Ref. 17, 20-22) MTD-682-7002
...
24
SPRING WASHER BELL MTD-736-0270
...
25
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
26
BRACKET-ADJ CABLE MTD-17070-0637
...
27
Pawl Plate MTD-16855
...
28
CHUTE STOP BRACKET MTD-782-7009
...
29
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
30
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
31
Fl-Wash. .328" I.D. x .68" MTD-736-0278
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
Pulley Assy. MTD-956-0612
...
34
SHIFT ROD MTD-747-0882A
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine - Craftsman Model MTD-NA
...
37
HOUSING ASSEMBLY MTD-682-7514
...
38
FLANGED BUSHING MTD-931-1137
...
40
CABLE-SPEED CONTROL MTD-746-0706
...
42
CHAIN AXLE ASSEMBLY MTD-982-7513
...
43
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
44
SPRING WASHER BELL MTD-736-0270
...
?45
Truss Mach. B-Tap Scr. #10 x .5" MTD-710-0351
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN-1/2 PITCH MTD-913-0361
...
49
Star Knob MTD-720-04072A
...
50
HOUSING CONTROL KIT MTD-753-0717
...
51
REAR FLAP MTD-731-1483
...
52
Cable Tie MTD-725-0157
...
55
Blade Adapter MTD-748-0377E
...
56
21-inch Mulching Blade MTD-942-0741A
...
?58
Bell-Wash. .39" I.D. x 1.14" O.D. MTD-736-0452
...
60
Hex Bolt 3/8-24 x 2.5" Lg. MTD-710-1257
...
61
Spacer .513" I.D. MTD-748-0190
...
62
SHIFT PLATE BRACKET MTD-782-7563-0637
...
63
Saddle Washer .32" I.D. MTD-736-0451
...
64
BRACKET ASSEMBLY-WHL (RH) COLOR MTD-682-3006A
...
65
L.H. HANDLE WHEEL BRKT. ASS'Y. MTD-682-3007A
...
?66
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 (Common Hardware - May Be Purchased Locally.) MTD-712-3010
...
70
Grip MTD-720-0230
...
71
LEVER-HGT ADJ MTD-732-0725
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
77
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
?79
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
Pawl - R.H. MTD-748-0381
...
xx
PAWL - (LH) MTD-948-0188B
...
?82
Wheel Ass'y. Comp. MTD-734-1826
...
84
BEARING MTD-741-0486B
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
SLEEVE MTD-711-0313
...
99
BLADE BELL SUPPORT MTD-736-0524B-1
...
101
UNKNOWN MTD-NA
...
102
21" DECK ASS'Y. MTD-782-0027
...
114
HOUSING CONTROL KIT MTD-753-0717
...
115
HOUSING CONTROL KIT MTD-753-0717
...
118
Fl-"C"-Sunk Hd. Tap Scr. #10 x .75" Lg. MTD-710-0841
...
119
Drive Control MTD-731-0620A
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
128
Hex Jam Nut 3/8-24 Thd. (Common Hardware - May Be Purchased Locally.) MTD-712-0711
...
129
Control Cable - 51" MTD-946-0737
...
130
Wheel Ratchet MTD-948-0318
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring - Nylon MTD-106228
...
138
COVER ASSEMBLY-CHAIN MTD-682-7506
...
140
Hex TT-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash. .531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION (See "Transmission Assembly" illustration and parts list.) MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
163
Gear Insert MTD-913-0397
...
165
6 SPEED SHIFT LEVER MTD-731-0924
...
177
Shift Lever Spring MTD-732-0627A
...
178
6-Spd. Rack Cable Brkt. MTD-16864

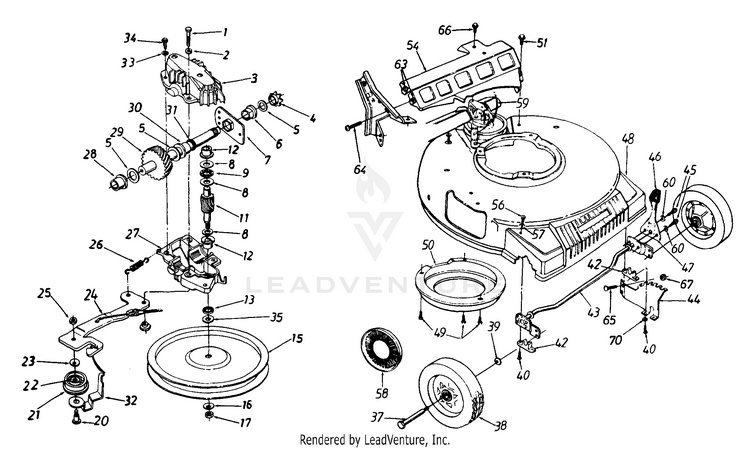

Transmission Assembly

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" (Part of Transmission Comp., Ref. No. 36) MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER (Part of Transmission Comp., Ref. No. 36) MTD-717-0418A
...
4
SPROCKET-7T (Part of Transmission Comp., Ref. No. 36) MTD-713-0400
...
5
FLAT WASHER (Part of Transmission Comp., Ref. No. 36) MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. (Part of Transmission Comp., Ref. No. 36) MTD-741-0413
...
7
CUP BEARING HEX (Part of Transmission Comp., Ref. No. 36) MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. (Part of Transmission Comp., Ref. No. 36) MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. (Part of Transmission Comp., Ref. No. 36) MTD-741-0479
...
11
PINION SHAFT 11T (Part of Transmission Comp., Ref. No. 36) MTD-917-1216
...
12
Flange Bearing (Part of Transmission Comp., Ref. No. 36) MTD-748-0208A
...
13
OIL SEAL -.375 ID (Part of Transmission Comp., Ref. No. 36) MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
?18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
?19
Fl-Wash. .390" I.D. x 1.0" MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing (Incl. Ref. #22) MTD-956-0008
...
22
Needle Brg. .375" x .31 MTD-741-0556
...
23
SPRING WASHER BELL MTD-736-0270
...
24
Idler Bracket MTD-682-0054
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
27
HOUSING HALF-LOWER (Part of Transmission Comp., Ref. No. 36) MTD-717-0419A
...
28
Flange Bearing .566 ID (Part of Transmission Comp., Ref. No. 36) MTD-941-0415
...
29
SHAFT & GEAR ASSEMBLY (Part of Transmission Comp., Ref. No. 36) MTD-717-0616
...
30
Flange Bearing .629 Dia. (Part of Transmission Comp., Ref. No. 36) MTD-741-0414
...
31
Oil Seal .625 Dia. (Part of Transmission Comp., Ref. No. 36) MTD-721-0213
...
32
Belt Keeper MTD-782-7569
...
33
L-Wash. #10 I.D. (Part of Transmission Comp., Ref. No. 36) MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. (Part of Transmission Comp., Ref. No. 36) MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410
...
?36
TRANSMISSION MTD-917-0417B
...
37
Front Axle Bolt MTD-738-0102
...
38
Wheel Ass'y. Comp. 8 x 2" MTD-734-1826
...
39
Bell-Wash. .380" I.D. x.88 MTD-736-0105
...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY- MTD-17733
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING MTD-732-0639
...
48
FRONT END MTD-731-1281A
...
49
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
50
BELT COVER MTD-782-7558
...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599
...
54
TRANSMISSION BELT COVER MTD-782-7554
...
56
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242
...
57
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
58
Hub Cap MTD-731-0981C
...
59
S.P. Cable MTD-946-0710A
...
60
External L-Wash. 1/4" I.D. MTD-736-0222
...
63
Speed Nut #10-24 Thd. MTD-712-0147
...
64
Special Screw, #10-16 x .625 MTD-710-04669
...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
66
Hex B-Tap Scr. 5/16-18 x .5" MTD-710-0603
...
67
LOCK NUT 1/4 MTD-912-3027
...
70
L-Wash. 1/4" I.D. MTD-936-0329
...
...
...
...
...
