Craftsman 126-147H099 (247.376380) (1996) Self-Propelled Walk-Behind Mower

Model: 126-147H099 (247.376380) (1996)

Save
 Part Not Listed?Part Not Listed?
product name

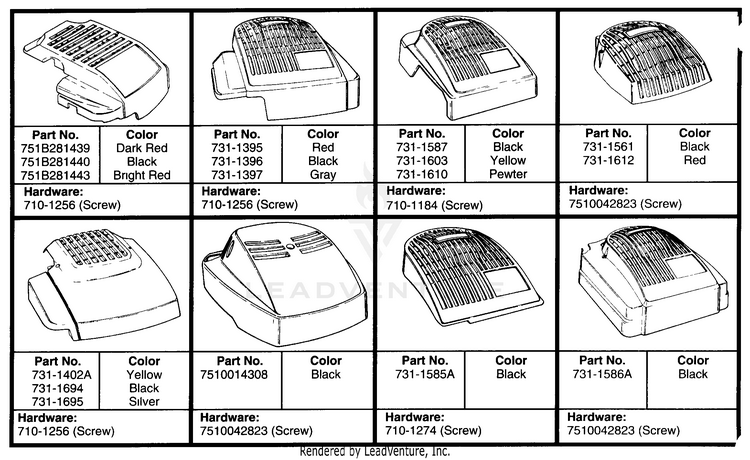

Engine Shrouds

...
...
751B281439
SHROUD MTD-751B281439
...
751B281440
SHROUD MTD-751B281440
...
751B281443
SHROUD MTD-751B281443
...
710-1256
Screw MTD-710-1256
...
731-1395
ENGINE SHROUD RED MTD-731-1395
...
731-1396
ENGINE SHROUD BLACK MTD-731-1396A
...
731-1397
ENGINE SHROUD BLACK MTD-731-1396A
...
710-1256
Screw MTD-710-1256
...
731-1587
ENGINE SHROUD - BLACK MTD-731-1587
...
731-1603
ENGINE SHROUD YELLOW MTD-731-1603
...
731-1610
ENGINE SHROUD PEWTER MTD-731-1610
...
710-1184
PAN SCREW 10-32 x 2.00 MTD-710-1184
...
731-1561
ENGINE SHROUD BLK TEC MTD-731-1561
...
731-1612
ENGINE SHROUD - RED MTD-731-1612
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1402A
ENGINE SHROUD - YELLOW MTD-731-1402A
...
731-1694
SHRD:ENG:BLK QUAN STY 3 MTD-731-1694
...
731-1695
ENGINE SHROUD SILVER QUAN STY MTD-731-1695
...
710-1256
Screw MTD-710-1256
...
7510014308
SHROUD MTD-7510014308
...
7510042823
SHOULDER SCREW MTD-7510042823
...
731-1585A
ENGINE SHROUD - BLACK MTD-731-1585A
...
710-1274
SCREW-PAN #10-32X1 MTD-910-1274
...
731-1586A
ENGINE SHROUD - BLACK MTD-731-1586A
...
7510042823
SHOULDER SCREW MTD-7510042823

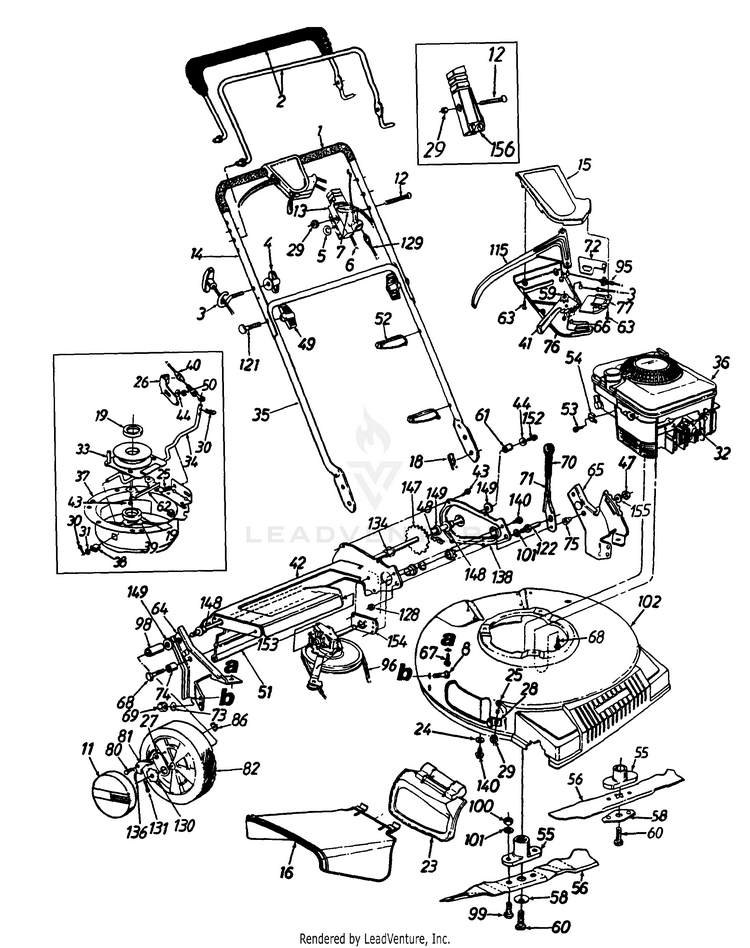

General Assembly

...
...
1
FOAM GRIP - 9" (Optional) MTD-720-0294A
...
2
Std. Control Handle (Std.) MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
3
Rope Guide MTD-710-1205
...
4
Handle Knob 1/4-20 Thd. MTD-720-0279
...
5
Curved Spring Wash. .66" I.D. For models 148 and 149 MTD-936-0501
...
6
Throttle Wire 55" Lg. For models 148 and 149 MTD-946-0671A
...
7
Throttle Lever For models 148 and 149 MTD-946-0876
...
8
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
11
Hub Cap MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
Hub Cap (Beige) MTD-731-0982C
...
xx
HUBCAP-SPOKE YELLOW MTD-731-1426B
...
xx
HUB CAP MTD-920-0249
...
12
Oval C-Sunk Mach. Scr. For models 148 and 149 MTD-710-0605
...
xx
SCREW 1/4-20 x 1.310 For model 147 Only MTD-710-1270
...
13
Throttle Body For models 148 and 149 MTD-946-0875
...
14
UPPER HANDLE MTD-749-0539C-0637
...
15
HOUSING CONTROL KIT MTD-753-0717
...
16
Side Discharge Deflector MTD-731-1409B
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
19
SPACER MTD-950-0968
...
23
MULCH PLUG ASSEMBLY MTD-682-7000
...
24
SPRING WASHER BELL MTD-736-0270
...
25
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
26
BRACKET-ADJ CABLE MTD-17070-0637
...
27
Pawl Plate MTD-16855
...
28
CHUTE STOP BRACKET MTD-782-7009
...
29
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
30
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
31
Fl-Wash..328" I.D. x .68" MTD-736-0278
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
Pulley Assy. MTD-956-0612
...
34
SHIFT ROD MTD-747-0882A
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine MTD-NA
...
37
HOUSING ASSEMBLY MTD-682-7514
...
38
FLANGED BUSHING MTD-931-1137
...
39
Wave Washer .88" I.D. MTD-736-0526
...
40
CABLE-SPEED CONTROL MTD-746-0706
...
41
6 SPEED SHIFT LEVER MTD-731-0924
...
42
CHAIN AXLE ASSEMBLY MTD-982-7513
...
43
Hex Tap Scr. 1/4" x .38" MTD-710-0653
...
44
SPRING WASHER BELL MTD-736-0270
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN-1/2 PITCH MTD-913-0361
...
49
Star Knob MTD-720-04072A
...
50
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
51
REAR FLAP MTD-731-1483
...
52
Cable Tie MTD-725-0157
...
53
Hex Wash. Hd. Scr. #10-32 x .62" Lg. MTD-710-1237
...
54
Cable Clamp (B&S) For models 148 and 149 MTD-BS-690798
...
55
BLADE ADAPTER For models 147 and 148; New Part MTD-748-0367
...
xx
Blade Adapter For model 149 only MTD-748-0377E
...
56
21" Mulching Blade New Part MTD-942-0721
...
xx
21-inch Mulching Blade For model 149 only MTD-942-0741A
...
58
Bell-Wash..39" I.D x 1.14" O.D. MTD-736-0452
...
xx
BLADE BELL SUPPORT For model 149 only MTD-736-0524B-1
...
59
Gear Insert MTD-913-0397
...
60
Hex Bolt 3/8-24 x 2.5" Lg. (Gr. 8) MTD-710-1257
...
61
Spacer .513" I D. MTD-748-0190
...
62
SHIFT PLATE BRACKET MTD-782-7563-0637
...
63
C-Sunk Tap Scr #10 x .75" Lg. MTD-710-0841
...
64
BRACKET ASSEMBLY-WHL (RH) COLOR MTD-682-3006A
...
65
L.H. HANDLE WHEEL BRKT. ASS'Y. MTD-682-3007A
...
66
Shift Lever Spring MTD-732-0627A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
70
Grip MTD-720-0223
...
71
LEVER-HGT ADJ MTD-732-0725
...
72
6 Spd. Rack Cable Brkt. MTD-16864
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
76
HOUSING CONTROL KIT MTD-753-0717
...
77
HOUSING CONTROL KIT MTD-753-0717
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
Pawl - R.H. MTD-748-0381
...
xx
PAWL - (LH) (Not Shown) MTD-948-0188B
...
82
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
WHL-YELLOW S WAVE 1/2ID SLEV MTD-734-1791
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
BEARING MTD-741-0486B
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
SLEEVE MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
21" DECK ASS'Y New Part MTD-682-0023
...
115
Drive Control MTD-731-0620A
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
128
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
129
Control Cable 39" For models 148 and 149 MTD-946-0550
...
xx
Control Cable - 51" For models 147 MTD-946-0737
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" For faster service obtain standard nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring - Nylon MTD-10622B
...
138
COVER ASSEMBLY-CHAIN MTD-682-7506
...
140
Hex TT-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash..531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION (See Breakdown) MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Fl-Wash..385" I.D. x .87" O.D. MTD-736-0300
...
?156
Control Housing For model 147 only MTD-746-0883

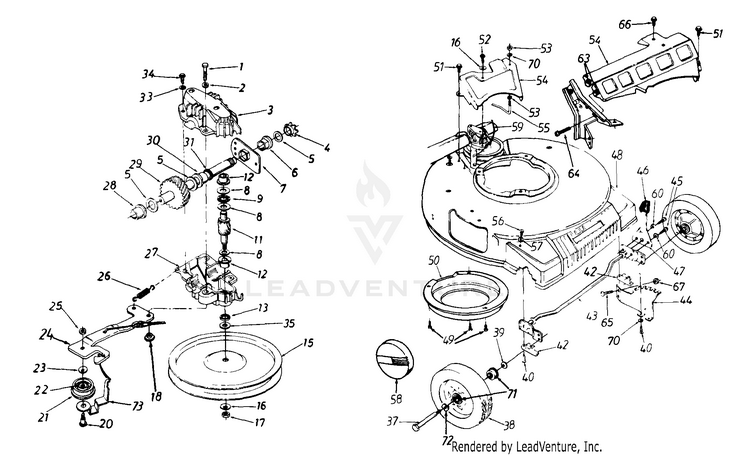

Transmission Assembly

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Part of Transmission Complete, Ref. No. 36. MTD-710-1062
...
2
L-Wash. 1/4" I.D. Part of Transmission Complete, Ref. No. 36. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
3
HOUSING HALF UPPER Part of Transmission Complete, Ref. No. 36. MTD-717-0418A
...
4
SPROCKET-7T Part of Transmission Complete, Ref. No. 36. MTD-713-0400
...
5
FLAT WASHER Part of Transmission Complete, Ref. No. 36. MTD-936-0336
...
6
Hex Flange Brg. .631" I.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0413
...
7
CUP BEARING HEX Part of Transmission Complete, Ref. No. 36. MTD-16500A-0637
...
8
Thrust Wash. .382" I.D. x .70" O.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0479
...
11
PINION SHAFT 11T Part of Transmission Complete, Ref. No. 36. MTD-917-1216
...
12
Flange Bearing Part of Transmission Complete, Ref. No. 36. MTD-748-0208A
...
13
OIL SEAL -.375 ID Part of Transmission Complete, Ref. No. 36. MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing (Incl. Ref. 22) MTD-956-0008
...
22
Needle Brg. .375" x .31 MTD-741-0556
...
23
UNKNOWN MTD-NA
...
24
Idler Bracket MTD-682-0054
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
27
HOUSING HALF LOWER Part of Transmission Complete, Ref. No. 36. New Part MTD-717-0419B
...
28
Flange Bearing .566 ID Part of Transmission Complete, Ref. No. 36. MTD-941-0415
...
29
SHAFT & GEAR ASSEMBLY Part of Transmission Complete, Ref. No. 36. MTD-717-0616A
...
30
Flange Bearing .629 Dia. Part of Transmission Complete, Ref. No. 36. MTD-741-0414
...
31
Oil Seal .625 Dia. Part of Transmission Complete, Ref. No. 36. MTD-721-0213
...
33
L-Wash. #10 I.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. Part of Transmission Complete, Ref. No. 36. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410
...
?36
TRANSMISSION MTD-917-0417B
...
37
Front Axle Bolt MTD-738-0102
...
38
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
WHEEL-YELLOW S WAVE MTD-734-1790
...
xx
Wheel Ass'y. Comp. (Beige Rim) MTD-734-1517B
...
39
Bell-Wash. .380" I.D. x .88 MTD-736-0105
...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY- MTD-17733
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING MTD-732-0639
...
48
FRONT END MTD-731-1281
...
xx
FRT END MULCH YELLOW MTD-731-1507
...
49
Hex B-Tap Scr 1/4" x .38" MTD-710-0352
...
50
BELT COVER MTD-782-7558
...
51
Hex Wash. Hd TT-Scr. 1/4-20 MTD-710-0599
...
52
Hex Wash. Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
53
HEX NUT 1/4-20 For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
54
BELT GUARD MTD-17058A-0637
...
xx
TRANSMISSION BELT COVER For models 147H and 149C Only. MTD-782-7554
...
55
BELT GUARD MTD-747-0549
...
56
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242
...
57
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
58
Hub Cap MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
HUB CAP MTD-920-0249
...
59
S.P. Cable MTD-946-0710A
...
60
External L-Wash. 1/4" I.D. MTD-736-0222
...
63
Speed Nut #10-24 Thd. For models 147H and 149C Only. MTD-712-0147
...
64
Special Screw, #10-16 x .625 For models 147H and 149C Only. MTD-710-04669
...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
66
Hex B-Tap Scr. 5/16-18 x .5" Lg. For models 147H and 149C Only. MTD-710-0603
...
67
LOCK NUT 1/4 MTD-912-3027
...
70
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
71
BALL BEARING (Optional) MTD-941-0484
...
72
Wave Washer.510 ID x.750 OD (Used w/Ref. 71) MTD-936-0504
...
?73
Belt Keeper MTD-782-7569
...
...
...
...
...
