Craftsman 124-147B099 (247.372651) (1994) Self-Propelled Walk-Behind Mower

Model: 124-147B099 (247.372651) (1994)

Save
Part Not Listed?Part Not Listed?

product name

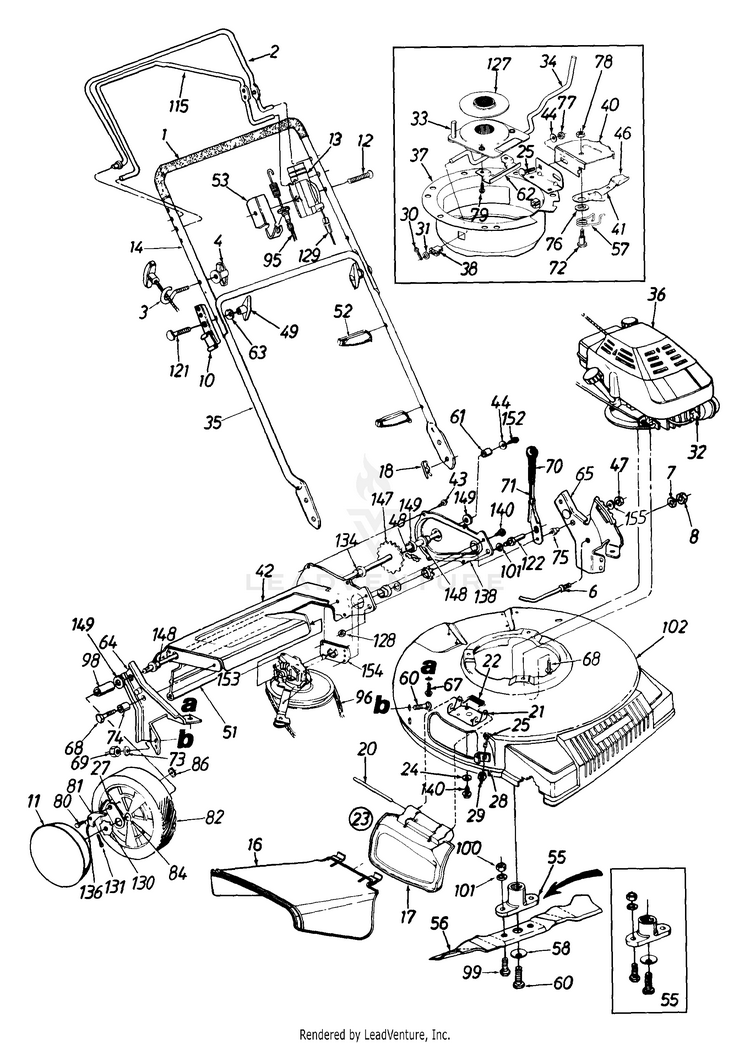

General Assembly

...
...
1
Grip Foam MTD-720-0295

...
2
Std. Control Handle MTD-747-0824B-0637

...
3
Rope Guide MTD-710-1205

...
4
Handle Knob 1/4-20 Thd. New Part MTD-720-0279

...
6
BELT GUARD MTD-747-0855

...
7
L-Wash. 1/4" I.D. For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number an sizes shown on parts list. MTD-936-0329

...
8
HEX NUT 1/4-20 For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number an sizes shown on parts list. MTD-912-0287

...
10
HANDLE BRACKET MTD-782-7007

...
11

...
12
Oval C-Sunk Mach. Scr. MTD-710-0605

...
13
Throttle Body MTD-946-0875

...
14
UPPER HANDLE MTD-749-0538C

...
16
Side Discharge Deflector MTD-731-1409B

...
17
MULCH PLUG ASSEMBLY MTD-731-1404

...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104

...
20
Hinge Pin MTD-747-0710A

...
21
MOUNTING BRACKET MTD-782-7006

...
22
Torsion Spring MTD-932-0731

...
23
MULCH PLUG ASSEMBLY (Incl. Ref. 17, 20, 21, 22) MTD-682-7000

...
24
SPRING WASHER BELL MTD-736-0270

...
25
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177

...
27
Pawl Plate MTD-16855

...
28
CHUTE STOP BRACKET MTD-782-7009

...
29
Hex L-Nut 1/4-20 Thd. MTD-712-0324

...
30
Cotter Pin 3/32" Dia. x .75" MTD-714-0507

...
31
Fl-Wash..328" I.D. x .68" MTD-736-0278

...
32
INSULATOR-SPARK PLUG MTD-735-0639

...
33
LOWER PULLEY ASSEMBLY MTD-682-7511

...
34
SHIFT ROD MTD-747-0883

...
35
Lower Handle MTD-749-0928A-0637

...
36
Engine - Craftsman For model 143.434132 MTD-143.434132

...
37
HOUSING ASSEMBLY MTD-682-7514

...
38
FLANGED BUSHING MTD-931-1137

...
40
PLATE-SHIF MTD-782-7560

...
41
SHIFT LEVER MTD-732-0724

...
42
CHAIN AXLE ASSEMBLY MTD-982-7513

...
43
Hex B-Tap Scr. 1/4" x .38"  MTD-710-0352

...
44
SPRING WASHER BELL MTD-736-0270

...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
47
HEX LOCK NUT 3/8-2 MTD-912-0296

...
48
#48 CHAIN-1/2 PITCH MTD-913-0361

...
49
Star Knob MTD-720-04072A

...
51
REAR FLAP MTD-731-1483

...
52
Cable Tie MTD-725-0157

...
53
DRIVE CONTROL BRACKET MTD-782-7559

...
55
KIT-BLADE MTD-753-0519

...
56
21" Mulching Blade MTD-942-0721

...
57
TORSION SPRING MTD-732-0719

...
58
BELL WASHER MTD-936-0453

...
60
Hex Bolt 7/16-20 x 2.5" MTD-710-0561

...
61
Spacer .513" I.D. MTD-748-0190

...
62
SHIFT PLATE BRACKET MTD-782-7563-0637

...
63
Saddle Washer .32" I.D. MTD-736-0451

...
64
BRACKET ASSEMBLY-WHL (RH) COLOR MTD-682-3006A

...
65
L.H. HANDLE WHEEL BRKT. ASS'Y. MTD-682-3007A

...
?66
Carriage Bolt 5/16-18 x.62 For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number an sizes shown on parts list. MTD-710-0260A

...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603

...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A

...
69
HEX NUT 5/16-18 For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number an sizes shown on parts list. MTD-712-3010

...

...
71
LEVER-HGT ADJ MTD-732-0725

...
72
SHOULDER SCREW 5/16-18 x .62 GR2 MTD-738-0138A

...
73
Bell-Wash. 5/16" I.D. MTD-736-0242

...
74

...
75
SHOULDER SPACER MTD-750-0624

...
76
Bushing, Shoulder, .320 ID x .135 MTD-936-0289

...
77
Hex L-Nut 1/4-20 Thd. MTD-712-0291

...
78
Hex Cent. L.-Nut 5/16-18 Thd. MTD-912-0158

...
79
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653

...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137

...
81
PAWL - (LH) MTD-948-0188B

...
82
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826

...
84

...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414

...
95
CLUTCH CABLE MTD-946-0911

...
96

...
98

...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055

...
100
Hex Nut 3/8-24 Thd. MTD-712-0241

...
101
L-Wash. 3/8" I.D. MTD-736-0169

...
102
21" DECK ASS'Y MTD-682-0023

...
115
CONTROL LEVER MTD-747-0884

...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174

...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805

...
127
HALF PULLEY-SERRAT MTD-756-0976

...
128
Hex Jam Nut 3/8-24 Thd. For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number an sizes shown on parts list. MTD-712-0711

...
129
Control Cable - 51" MTD-946-0737

...
130
Wheel Ratchet MTD-948-0318

...
131
Cotter Pin 1/8" Dia. x 1" For faster service obtain standard nuts, bolt and washers locally. If these items cannot be obtained locally, order by part number an sizes shown on parts list. MTD-714-0115

...
134
Hex Flange Bearing MTD-741-0522

...
136
Spring - Nylon MTD-10622B

...
138
COVER ASSEMBLY-CHAIN MTD-682-7506

...
140
Hex TT-Tap Scr. 1/4-20 x .50" MTD-710-0599

...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864

...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A

...
149
Fl-Wash..531" I.D. x .930" MTD-736-0160

...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751

...
153
TRANSMISSION MTD-917-0417B

...
154
CUP BEARING HEX MTD-16500A-0637

...
155
Fl-Wash..385" I.D. x .87" O.D. MTD-736-0300

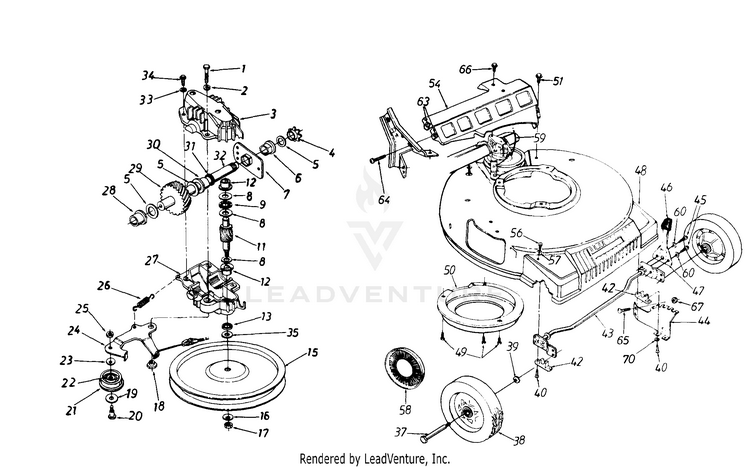

Transmission And Wheel Assembly

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Part of Transmission Complete, Ref. No. 36. MTD-710-1062

...
2
L-Wash. 1/4" I.D. MTD-936-0329

...
3
HOUSING HALF UPPER Part of Transmission Complete, Ref. No. 36. MTD-717-0418A

...
4
SPROCKET-7T Part of Transmission Complete, Ref. No. 36. MTD-713-0400

...
5
FLAT WASHER Part of Transmission Complete, Ref. No. 36. MTD-936-0336

...
6
Hex Flange Brg..631" I.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0413

...
7
CUP BEARING HEX Part of Transmission Complete, Ref. No. 36. MTD-16500A-0637

...
8
Thrust Wash..382" I.D. x .70" O.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0314

...
9
Thrust Bearing .375" I.D. x .812" O.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0479

...
11
PINION SHAFT 11T Part of Transmission Complete, Ref. No. 36. MTD-917-1216

...
12
Flange Bearing Part of Transmission Complete, Ref. No. 36. MTD-748-0208A

...
13
OIL SEAL -.375 ID Part of Transmission Complete, Ref. No. 36. MTD-721-0212

...
15

...
16
SPRING WASHER BELL MTD-736-0270

...
17
Jam Nut, 1/4-28, LH MTD-712-04326

...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440

...
19
Fl-Wash..390" I.D. x 1.0" MTD-736-0344

...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826

...
21
Pulley Ass'y Idler w/ Bearing New Part (Incl. Ref. #22) MTD-956-0008

...
22
Needle Brg..375" x .31 MTD-741-0556

...
23
UNKNOWN MTD-NA

...
24
IDLER BRACKET ASSEMBLY MTD-17052A

...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138

...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A

...
27
HOUSING HALF-LOWER Part of Transmission Complete, Ref. No. 36. MTD-717-0419A

...
28
Flange Bearing .566 ID Part of Transmission Complete, Ref. No. 36. MTD-941-0415

...
29
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36. MTD-717-0422A

...
30
Flange Bearing .629 Dia. Part of Transmission Complete, Ref. No. 36. MTD-741-0414

...
31
Oil Seal .625 Dia. Part of Transmission Complete, Ref. No. 36. MTD-721-0213

...
32
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36. MTD-738-0607A

...
33
L-Wash. #10 I.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0722

...
34
Hex Wash. Hd. Self-Tap Scr. Part of Transmission Complete, Ref. No. 36. MTD-710-0651

...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410

...
?36
TRANSMISSION MTD-917-0417B

...
37
Front Axle Bolt MTD-738-0102

...
38
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826

...
39
Bell-Wash..380" I.D. x .88 MTD-736-0105

...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241

...
42
Block Bushing MTD-741-0492A

...
43
AXLE ASSEMBLY- MTD-17733

...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516

...
45
Hex TT-Tap Scr. 1/4-20 x .38" MTD-710-0653

...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1

...
47
LEVER-SPRING MTD-732-0639

...
48
FRONT END MTD-731-1281

...
49
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352

...
50
BELT COVER MTD-782-7558

...
51
Hex Wash. Hd. TT-Scr. 1/4-20 MTD-710-0599

...
54
TRANSMISSION BELT COVER MTD-782-7554

...
56
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242

...
57
Bell-Wash..345" I.D. x .88" MTD-736-0242

...
58

...
59
CLUTCH CABLE MTD-746-0909

...
60
External L-Wash. 1/4" I.D. MTD-736-0222

...
63
Speed Nut 410-24 Thd. MTD-712-0147

...
64
Special Screw, #10-16 x .625 MTD-710-04669

...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177

...
66
Hex B-Tap Scr. 5/16-18 x .5" MTD-710-0603

...
67
LOCK NUT 1/4 MTD-912-3027

...
70
L-Wash. 1/4" I.D. MTD-936-0329
...
...
...
...
...
