Craftsman 124-146D099 (247.372651) (1994) Self-Propelled Walk-Behind Mower

Model: 124-146D099 (247.372651) (1994)

Save
 Part Not Listed?Part Not Listed?
product name

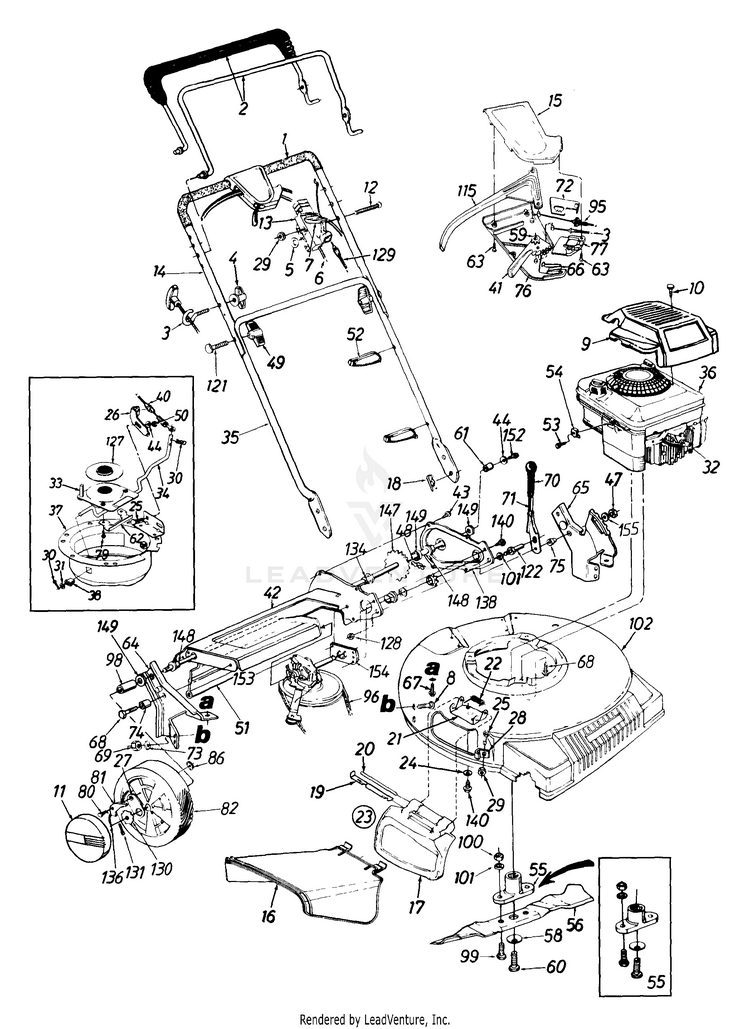

General Assembly

...
...
1
FOAM GRIP - 9" Optional Parts MTD-720-0294A
...
2
Std. Control Handle (Std.) MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
3
Rope Guide MTD-710-1205
...
4
Handle Knob 1/4-20 Thd. MTD-720-0279
...
5
Curved Spring Wash. .66" I.D. MTD-936-0501
...
6
Throttle Wire 55" Lg. MTD-946-0671A
...
7
Throttle Lever MTD-946-0876
...
8
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
9
SHROUD Optional Parts MTD-751B281440
...
xx
ENGINE SHROUD BLACK Optional Parts MTD-731-1396A
...
xx
ENGINE SHROUD Optional Parts MTD-731-1402
...
10
Hi-Lo Screw #10 x 1.25" Lg. MTD-710-1256
...
11
Hub Cap MTD-NA
...
xx
Hub Cap Optional Hub Caps MTD-731-0981C
...
xx
Hub Cap (Beige) Optional Hub Caps MTD-731-0982C
...
xx
HUBCAP-SPOKE YELLOW Optional Hub Caps MTD-731-1426B
...
xx
HUB CAP Optional Hub Caps MTD-920-0249
...
12
Oval C-Sunk Mach. Scr. MTD-710-0605
...
13
Throttle Body New Part MTD-946-0875
...
14
UPPER HANDLE MTD-749-0539C-0637
...
15
HOUSING CONTROL KIT MTD-753-0717
...
16
Side Discharge Deflector MTD-731-1409B
...
17
MULCH PLUG ASSEMBLY MTD-731-1404
...
18
Internal Cotter Pin 5/16" Dia. MTD-714-0104
...
19
UNKNOWN MTD-NA
...
20
Hinge Pin MTD-747-0710A
...
21
MOUNTING BRACKET MTD-782-7006
...
22
Torsion Spring MTD-932-0731
...
23
MULCH PLUG ASSEMBLY (Incl. Ref. 17, 20, 21, 22) MTD-682-7000
...
24
SPRING WASHER BELL MTD-736-0270
...
25
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
26
BRACKET-ADJ CABLE MTD-17070-0637
...
27
Pawl Plate MTD-16855
...
28
CHUTE STOP BRACKET MTD-782-7009
...
29
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
30
Cotter Pin 3/32" Dia. x .75" MTD-714-0507
...
31
Fl-Wash..328" I.D. x .68" MTD-736-0278
...
32
INSULATOR-SPARK PLUG MTD-735-0639
...
33
LOWER PULLEY ASSEMBLY MTD-682-7511
...
34
SHIFT ROD MTD-747-0882
...
35
Lower Handle MTD-749-0928A-0637
...
36
Engine - 5 H.P. MTD-NA
...
37
HOUSING ASSEMBLY MTD-682-7514
...
38
FLANGED BUSHING MTD-931-1137
...
40
CABLE-SPEED CONTROL MTD-746-0706
...
41
6 SPEED SHIFT LEVER MTD-731-0924
...
42
CHAIN AXLE ASSEMBLY MTD-982-7513
...
43
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
44
SPRING WASHER BELL MTD-736-0270
...
47
HEX LOCK NUT 3/8-2 MTD-912-0296
...
48
#48 CHAIN-1/2 PITCH MTD-913-0361
...
49
Star Knob MTD-720-04072A
...
50
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
51
REAR FLAP New Part MTD-731-1483
...
52
Cable Tie MTD-725-0157
...
53
Hex Wash. Hd. Scr. #10-32 x .62" Lg. MTD-710-1237
...
54
Cable Clamp (B&S) MTD-BS-690798
...
55
KIT-BLADE MTD-753-0519
...
56
21" Mulching Blade MTD-942-0721
...
58
BELL WASHER MTD-936-0453
...
59
Gear Insert MTD-913-0397
...
60
Hex Bolt 7/16-20 x 2.5" MTD-710-0561
...
61
Spacer .513" I.D. MTD-748-0190
...
62
SHIFT PLATE BRACKET MTD-782-7563-0637
...
63
C-Sunk Tap Scr. #10 x .75" Lg. MTD-710-0841
...
64
BRACKET ASSEMBLY-WHL (RH) COLOR MTD-682-3006A
...
65
L.H. HANDLE WHEEL BRKT. ASS'Y. MTD-682-3007A
...
66
Shift Lever Spring MTD-732-0627A
...
67
Hex B-Tap Scr. 5/16-18 MTD-710-0603
...
68
Hex TT-Tap Scr. 3/8-16 MTD-710-0654A
...
69
HEX NUT 5/16-18 For faster service obtain nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
70
Grip MTD-720-0223
...
71
LEVER-HGT ADJ MTD-732-0725
...
72
6 Spd. Rack Cable Brkt. MTD-16864
...
73
Bell-Wash. 5/16" I.D. MTD-736-0242
...
74
SPACER MTD-950-0736
...
75
SHOULDER SPACER MTD-750-0624
...
76
HOUSING CONTROL KIT MTD-753-0717
...
77
HOUSING CONTROL KIT MTD-753-0717
...
79
Hex Wash. Hd. Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
80
BOLT, SHOULDER, 1/4-20 x 2.65 LG MTD-738-0137
...
81
PAWL - (LH) MTD-948-0188B
...
xx
RH Pawl MTD-748-0381
...
82
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
WHL-YELLOW S WAVE 1/2ID SLEV MTD-734-1791
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
BEARING MTD-741-0486B
...
86
Weld Top L-Nut 1/4-20 Thd. MTD-712-0414
...
95
S.P. Cable MTD-946-0710A
...
96
V-Belt MTD-954-0343
...
98
SLEEVE MTD-711-0313
...
99
Hex Bolt 3/8-24 x 1.0" Lg. MTD-710-1055
...
100
Hex Nut 3/8-24 Thd. MTD-712-0241
...
101
L-Wash. 3/8" I.D. MTD-736-0169
...
102
21" DECK ASS'Y New Part MTD-682-0023
...
115
Drive Control MTD-731-0620A
...
121
Curved Hd. Bolt 5/16-18 x 2" Lg. MTD-710-1174
...
122
SHOULDER PIN 3/8-24X1.43 MTD-711-0805
...
127
MOVABLE PULLEY MTD-756-0503
...
128
Hex Jam Nut 3/8-24 Thd. For faster service obtain nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0711
...
129
Control Cable 39" MTD-946-0550
...
130
Wheel Ratchet MTD-948-0318
...
131
Cotter Pin 1/8" Dia. x 1" For faster service obtain nuts, bolts and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-714-0115
...
134
Hex Flange Bearing MTD-741-0522
...
136
Spring - Nylon MTD-10622B
...
138
COVER ASSEMBLY-CHAIN MTD-682-7506
...
140
Hex TT-Tap Scr. 1/4-20 x .50" MTD-710-0599
...
147
REAR AXLE SHAFT ASSEMBLY 22T MTD-938-0864
...
148
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
149
Fl-Wash..531" I.D. x .930" MTD-736-0160
...
152
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
153
TRANSMISSION MTD-917-0417B
...
154
CUP BEARING HEX MTD-16500A-0637
...
155
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300

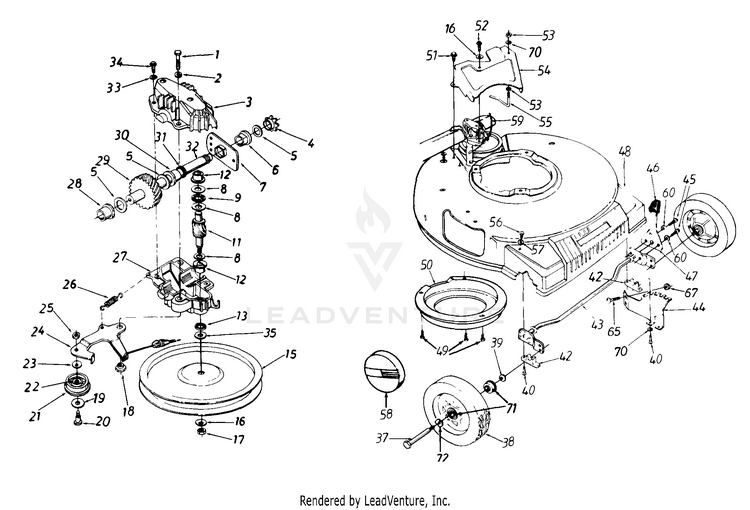

Transmission And Wheel Assembly

...
...
1
Hex Patch Bolt 1/4-20 x 1.25" Part of Transmission Complete, Ref. No. 36. MTD-710-1062
...
2
L-Wash. 1/4" I.D. MTD-936-0329
...
3
HOUSING HALF UPPER Part of Transmission Complete, Ref. No. 36. MTD-717-0418A
...
4
SPROCKET-7T Part of Transmission Complete, Ref. No. 36. MTD-713-0400
...
5
FLAT WASHER Part of Transmission Complete, Ref. No. 36. MTD-936-0336
...
6
Hex Flange Brg..631" I.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0413
...
7
CUP BEARING HEX Part of Transmission Complete, Ref. No. 36. MTD-16500A-0637
...
8
Thrust Wash..382" I.D. x .70" O.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0314
...
9
Thrust Bearing .375" I.D. x .812" O.D. Part of Transmission Complete, Ref. No. 36. MTD-741-0479
...
11
PINION SHAFT 11T Part of Transmission Complete, Ref. No. 36. MTD-917-1216
...
12
Flange Bearing Part of Transmission Complete, Ref. No. 36. MTD-748-0208A
...
13
OIL SEAL -.375 ID Part of Transmission Complete, Ref. No. 36. MTD-721-0212
...
15
PULLEY MTD-756-0330A
...
16
SPRING WASHER BELL MTD-736-0270
...
17
Jam Nut, 1/4-28, LH MTD-712-04326
...
18
Shld. Spacer .375" Dia. x .170 MTD-738-0440
...
19
Fl-Wash..390" I.D. x 1.0" MTD-736-0344
...
20
Shld. Bolt .375" Dia. x .40" MTD-738-0826
...
21
Pulley Ass'y Idler w/ Bearing New Part(Incl. Ref. 22) MTD-956-0008
...
22
Needle Brg..375" x .31 MTD-741-0556
...
23
UNKNOWN MTD-NA
...
24
IDLER BRACKET ASSEMBLY MTD-17052A
...
25
Hex Patch L-Nut 1/4-28 Thd. MTD-712-0138
...
26
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
27
HOUSING HALF-LOWER MTD-717-0419A
...
28
Flange Bearing .566 ID Part of Transmission Complete, Ref. No. 36. MTD-941-0415
...
29
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36. MTD-717-0422A
...
30
Flange Bearing .629 Dia. Part of Transmission Complete, Ref. No. 36. MTD-741-0414
...
31
Oil Seal .625 Dia. Part of Transmission Complete, Ref. No. 36. MTD-721-0213
...
32
SHAFT & GEAR AS Part of Transmission Complete, Ref. No. 36. MTD-738-0607A
...
33
L-Wash. #10 I.D. Part of Transmission Complete, Ref. No. 36. MTD-736-0722
...
34
Hex Wash. Hd. Self-Tap Scr. Part of Transmission Complete, Ref. No. 36. MTD-710-0651
...
35
FLAT WASHER .260x.880x.040:HD MTD-736-0410
...
?36
TRANSMISSION MTD-917-0417B
...
37
Front Axle Bolt MTD-738-0102
...
38
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
WHEEL-YELLOW S WAVE MTD-734-1790
...
xx
Wheel Ass'y. Comp. (Beige Rim) MTD-734-1517B
...
xx
Wave Washer.510 ID x.750 OD MTD-936-0504
...
39
Bell-Wash .380" I.D. x .88 MTD-736-0105
...
40
Hex Wash. Hd. Scr. 1/4 x 1" Lg. MTD-710-1241
...
42
Block Bushing MTD-741-0492A
...
43
AXLE ASSEMBLY- MTD-17733
...
44
HEIGHT ADJUSTMENT BRACKET MTD-782-0516
...
45
Hex TT- Tap Scr. 1/4-20 x .38" MTD-710-0653
...
46
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
47
LEVER-SPRING MTD-732-0639
...
48
FRONT END MTD-731-1281
...
xx
FRT END MULCH YELLOW MTD-731-1507
...
49
Hex B-Tap Scr. 1/4" x .38" MTD-710-0352
...
50
BELT COVER MTD-782-7558
...
51
Hex Wash. Hd TT-Scr 1/4-20 MTD-710-0599
...
52
Hex Wash Hd. B-Tap Scr. 1/4 x .62" (Spec.) MTD-710-0896
...
53
HEX NUT 1/4-20 MTD-912-0287
...
54
BELT GUARD MTD-17058A-0637
...
55
BELT GUARD MTD-747-0549
...
56
Torx Truss Hd. Scr. 5/16 x .75" MTD-710-1242
...
57
Bell-Wash. 345" I.D. x .88" MTD-736-0242
...
58
Hub Cap (See Chart) MTD-NA
...
59
S.P. Cable MTD-946-0710A
...
60
External L-Wash. 1/4" I.D. MTD-736-0222
...
65
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
67
LOCK NUT 1/4 MTD-912-3027
...
70
L-Wash. 1/4" I.D. MTD-936-0329
...
71
BALL BEARING (Optional) MTD-941-0484
...
...
...
...
...
