Craftsman 11A-508N099 (1998) Walk Behind Mower

Model: 11A-508N099 (1998)

Save
 Part Not Listed?Part Not Listed?
product name

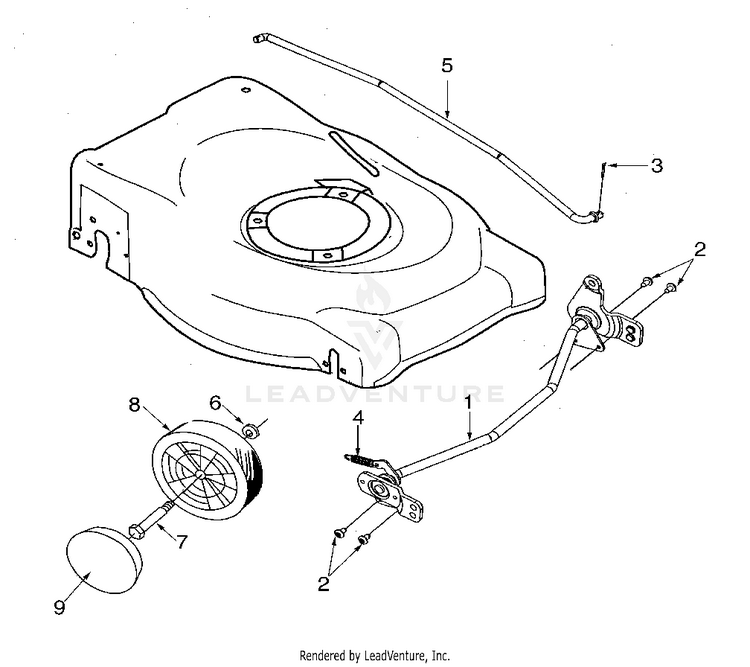

Front Axle Assembly & Height Adjuster

...
...
1
FRONT AXLE ASSEMBLY (POWDER BLACK) MTD-611-0060-0637
...
2
AB Pan Scr. 1/4-14 x .50 Lg. MTD-710-1348
...
3
Cotter Pin .072 x 1.12 Lg. MTD-714-0104
...
4
SPRING EXTENSION MTD-932-0820
...
5
ROD-ADJ SINGLE LVR MTD-747-0920
...
6
Spr. Washer MTD-736-0105
...
7
Shl. Bolt .498 x 1.445 3/8-16 MTD-738-0102
...
8
Wheel Ass'y - Complete MTD-NA
...
xx
Front/Rear Wheel 8" x 1.75" Bar Tread MTD-634-0020
...
xx
Front Wheel 8" x 1.75" "T" Tread (Uses bearing 741-0484) MTD-734-1268
...
xx
WHEEL ASSEMBLY W/TIRE-T-TREAD MTD-734-1412
...
xx
WHEEL-YELLOW S WAVE (Uses bearing 741-0484) MTD-734-1790
...
xx
WHL-YELLOW S WAVE 1/2ID SLEV MTD-734-1791
...
xx
Wheels - Front (Uses bearing 741-0484) MTD-753-08093
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheel Ass'y. Comp. (Uses bearing 741-0484) MTD-734-1978
...
xx
Whl. Comp. 8 x 2 Pl. (Rear) MTD-734-1979
...
xx
BALL BEARING MTD-941-0484
...
9
Hub Cap MTD-NA
...
xx
HUB CAP MTD-920-0249
...
xx
HUB CAP-BLACK MTD-731-0354
...
xx
HUB CAP-GRAY MTD-731-0355A
...
xx
Hub Cap MTD-731-0981C
...
xx
HUBCAP-SPOKE YELLOW MTD-731-1426B

General Assembly

...
...
1
Std. Control Handle (Std.) MTD-747-0824B-0637
...
xx
Std. Control Handle (Deluxe) MTD-747-0824B-0637
...
xx
Handle Ass'y. Control (Model 11a-5508L022) MTD-747-0956-0637
...
2
16" WHEEL ASS'Y. MTD-734-1653
...
2
AERO GRAY WITH BALL BEARINGS MTD-734-1842
...
2
WHEEL ASSEMBLY W/TIRE STEEL SPOKE MTD-734-1661
...
3
Wheel - LH MTD-734-1855
...
3
Front Wheel Assy Wheels w/o Bearings - (Gray w/Hub Cap) Bar Tread MTD-634-0020
...
3
Wheel - LH MTD-734-1855
...
3
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) (Brg. Part No. 741-0262) MTD-934-1841
...
3
Wheels with Ball Brgs. (Brg. Part No. 741-0262) MTD-734-1268
...
xx
Bearing MTD-741-0262
...
3
Front Wheel Assy Wheels with Ball Brgs. - Gray "T" Tread Require Wave Washer 736-0504 MTD-734-1268
...
3
Wheels - Front Require Wave Washer 736-0504 MTD-753-08093
...
3
Wheel Ass'y. Comp. Require Wave Washer 736-0504 MTD-734-1978
...
xx
HUB CAP-BLACK MTD-731-0354
...
xx
HUB CAP-GRAY MTD-731-0355A
...
xx
Hub Cap MTD-731-0981C
...
xx
HUB CAP MTD-920-0249
...
4
BALL BEARING MTD-941-0484
...
5
Front Axle Bolt MTD-738-0102
...
6
Hex Nut 3/8-24 Thd. MTD-712-0241
...
7
Standard Blade 22-inch MTD-942-0642A
...
xx
Blade (Optional) MTD-742-0742A-0637
...
8
Throttle Wire 55" Lg. MTD-946-0671A
...
xx
Throttle Cable (Models 503, 505) MTD-946-1115
...
9
Lower Handle MTD-749-0928A-0637
...
10
Engine MTD-NA
...
11
Oval C-Sunk Mach. Scr. MTD-710-0605
...
12
Throttle Lever MTD-946-0876
...
13
Curved Spring Wash. .66" I.D. MTD-936-0501
...
14
Hex Lock Nut 1/4-20 Thd. MTD-712-0324
...
15
UNKNOWN MTD-NA
...
19
HANDLE BRACKET ASSEMBLY (LH) (POWDER BLACK) MTD-682-0517-0637
...
20
HANDLE BRACKET ASSEMBLY (RH) MTD-682-0518
...
21
Throttle Body MTD-946-0875
...
22
Throttle Box Comp. (includes ref. 11, 12, 13, 14, 21) MTD-811-0185
...
25
SCREW 3/8-24 x .80 MTD-710-0793
...
28
Hex Nut 3/8-16 Thd. MTD-712-0798
...
29
Bell Washer MTD-736-0105
...
33
Hex Bolt 3/8-24 x 1.5" MTD-710-1044
...
35
Blade Adapter Kit (Incl. Ref. 13-15) MTD-753-06315
...
36
BLADE BELL SUPPORT MTD-736-0524B-1
...
38
HINGE CLIP MTD-17098P
...
40
TRAILSHED MTD-731-1026
...
43
Control Cable 39" (models 506, 508, 509) MTD-946-0550
...
xx
Control Cable - 51" MTD-946-0737
...
44
DECK ASSEMBLY 22" (Code N) MTD-682-0085
...
45
Hex Washer Hd. TT Scr. MTD-710-0654A
...
46
Handle Knob 1/4-20 Thd. MTD-720-0279
...
47
Wave Washer.510 ID x.750 OD MTD-936-0504
...
48
PIVOT BAR (Code N) MTD-782-0519A
...
49
PIVOT BAR (Code N) MTD-782-0520A
...
50
Top Lock Jam Nut 3/8-16 MTD-912-3020
...
52
UPPER HANDLE MTD-749-0538C
...
xx
UPPER HANDLE (11A-508L022) MTD-749-0920A
...
53
Internal Cotter Pin MTD-714-0104
...
54
Cable Tie MTD-725-0157
...
55
Curved Hd. Bolt 5/16-18 x 2" MTD-710-1174
...
56
Rope Guide MTD-710-1205
...
57
Hand Knob MTD-920-0276
...
65
UNKNOWN MTD-NA
...
70
INSULATOR-SPARK PLUG (optional) MTD-735-0639
...
72
Shoulder Bolt MTD-738-0507B
...
79
Front Spring Lever MTD-94832
...
80
Pivot Bar MTD-15202B
...
81
Height Adjustment Plate MTD-787-01290A
...
82
BELL WASHER MTD-936-0356
...
84
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
86
SPRING WASHER BELL MTD-736-0270
...
87
Hex Washer Head Tap Scr. 1/4-20 x .5" MTD-710-0599
...
88
Hinge Pin MTD-747-0710A
...
89
PLATE-ADAPTER MTD-17032A
...
90
Torsion Spring MTD-932-0593
...
93
CHUTE DEFLECTOR MTD-931-1034B
...
94
AXLE-RR MTD-738-0878
...
95
Bell Washer MTD-736-0331
...
96
Spacer .550 ID x .750 OD MTD-950-0151
...
97
Wave Washer.510 ID x.750 OD (used w/ball bearing wheels) MTD-936-0504
...
99
Flat Washer MTD-736-3050
...
102
Foam Grip (optional) MTD-720-0295
...
103
Cable Clamp (B&S) (models 504, 508) MTD-BS-690798
...
xx
CLAMP-THRO (model 507) MTD-7510007755
...
104
Hex Washer Head Tap Scr. #10-32 x .62" (models 504, 508) MTD-710-1237
...
xx
SCREW #10-32 x .38 (model 507) MTD-710-0871
...
105
MULCH PLUG (optional) MTD-731-1386D
...
106
SCREW 1/4-20 x .620 GR5 (Only on units equipped with struts) (Code N) MTD-710-0751
...
107
SPRING WASHER BELL (Only on units equipped with struts) (Code N) MTD-736-0270
...
108
HEX NUT 1/4-20 (Only on units equipped with struts) (Code N) MTD-912-0287
...
109
STRUT-HAND (Only on units equipped with struts) (Code N) MTD-749-0939
...
110
HEX NUT 5/16-18 (Only on units equipped with struts) (Code N) MTD-712-3010
...
111
Saddle Washer (Only on units equipped with struts) (Code N) MTD-736-0451
...
112
Hex Bolt 1/4-20 x .625 Gr.2 (Only on units equipped with struts) (Code N) MTD-710-0258
...
113
Lock Wash. 5/16" I.D. (Only on units equipped with struts) (Code N) MTD-936-0119
...
104
Hex Washer Head Tap Scr. #10-32 x .62" (models 504, 508) MTD-710-1237
...
xx
SCREW #10-32 x .38 (model 507) MTD-710-0871
...
105
MULCH PLUG (optional) MTD-731-1386D
...
106
SCREW 1/4-20 x .620 GR5 (Only on units equipped with struts) (Code N) MTD-710-0751
...
107
SPRING WASHER BELL (Only on units equipped with struts) (Code N) MTD-736-0270
...
108
HEX NUT 1/4-20 (Only on units equipped with struts) (Code N) MTD-912-0287
...
109
STRUT-HAND (Only on units equipped with struts) (Code N) MTD-749-0939
...
110
HEX NUT 5/16-18 (Only on units equipped with struts) (Code N) MTD-712-3010
...
111
Saddle Washer (Only on units equipped with struts) (Code N) MTD-736-0451
...
xx
Side Discharge Grass Collector (Attachment) MTD-OEM-190-110
...
xx
Mulch Kit (1 Bolt Mount) (Attachment) MTD-190-115-000

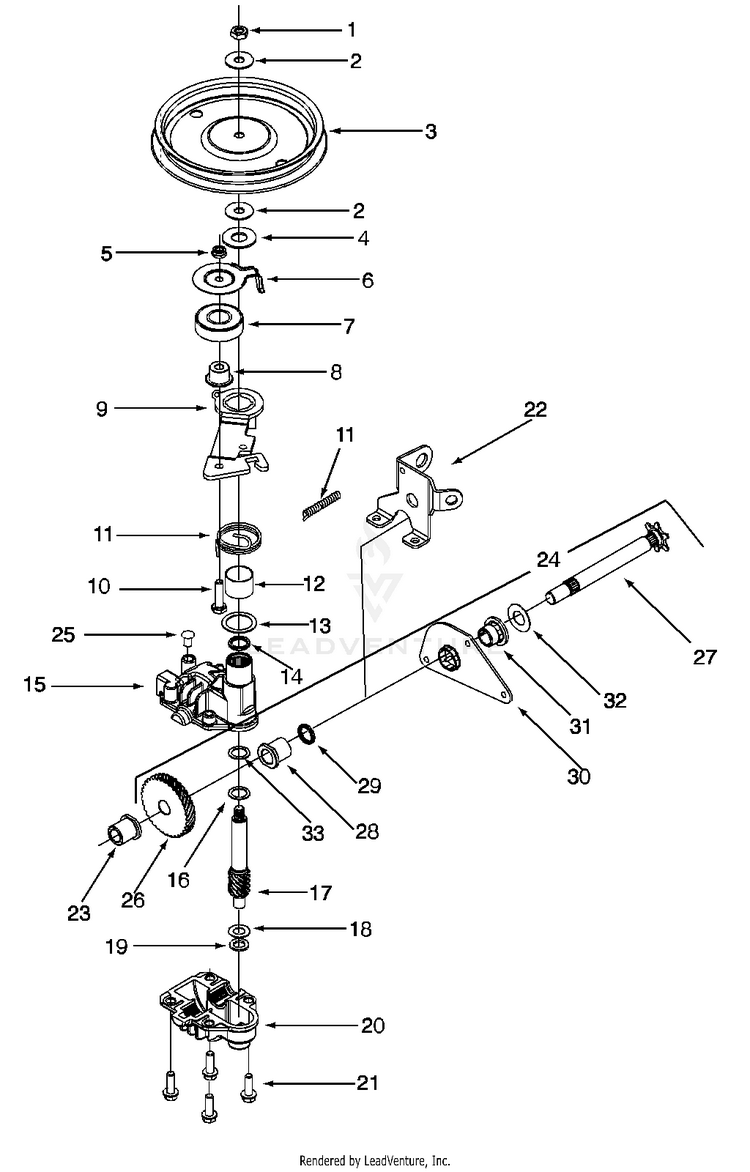

Transmission Assembly Model Series 380 Thru 389

...
...
1
Hx. Jam Nut 5/16-24 MTD-712-3025
...
2
Bell Wash. .325 x .930 x .045 MTD-736-0425
...
3
Pulley MTD-756-0656
...
4
Fl. Wash. .510 x 1.120 x .060 MTD-736-3084
...
5
Hx. Jam Nut 1/4-28 MTD-712-0896
...
6
Belt Keeper MTD-782-7598
...
7
BALL BEARING MTD-941-0600
...
8
Flange Spacer MTD-750-1050
...
9
IDLER BRACKET ASSEMBLY MTD-982-0027A
...
10
Hx. Cap Scr. 1/4-28 x 1.00 Gr. 5 MTD-710-0299
...
11
Extension Spring MTD-932-0849A
...
12
Bearing Sleeve MTD-741-0682A
...
13
FLAT WASHER MTD-936-0570
...
14
Oil Seal MTD-921-0329
...
15
UPPER HOUSING ASSEMBLY MTD-618-0253
...
16
Thrust Washer.504 ID x.70 OD MTD-936-0616
...
17
Pinion Shaft 10T MTD-917-1487
...
18
Thr. Wash. 3/8 x .70 x .030 MTD-736-0314
...
19
THRUST WASHER MTD-936-0569
...
20
LOWER HOUSING ASSEMBLY MTD-918-0252
...
21
Hx. Scr. 1/2-20 x .75 MTD-710-0642
...
22
CABLE GUARD BRACKET MTD-782-7601A-0637
...
23
BEARING MTD-941-0674
...
24
OUTPUT SHAFT ASSEMBLY MTD-911-0066
...
25
Plug MTD-721-0325
...
26
Gear 34 T. MTD-717-1469
...
27
OUTPUT SHAFT 6T MTD-711-1168
...
28
Bearing MTD-941-0673
...
29
Oil Seal MTD-921-0329
...
30
Pivot Bracket MTD-782-7595
...
31
Flge Bearing .506 ID x .590 Lg MTD-741-0324A
...
32
Wash. Fl. .508 I.D. x 1.00 O.D. x .020 MTD-736-0369
...
33
Thrust Bearing MTD-741-0690
...
xx
TRANSMISSION MTD-918-0263A
...
...
...
...
...
