Craftsman 11A-403D099 (247.388240) (1999) Walk Behind Mower

Model: 11A-403D099 (247.388240) (1999)

Save
 Part Not Listed?Part Not Listed?
product name

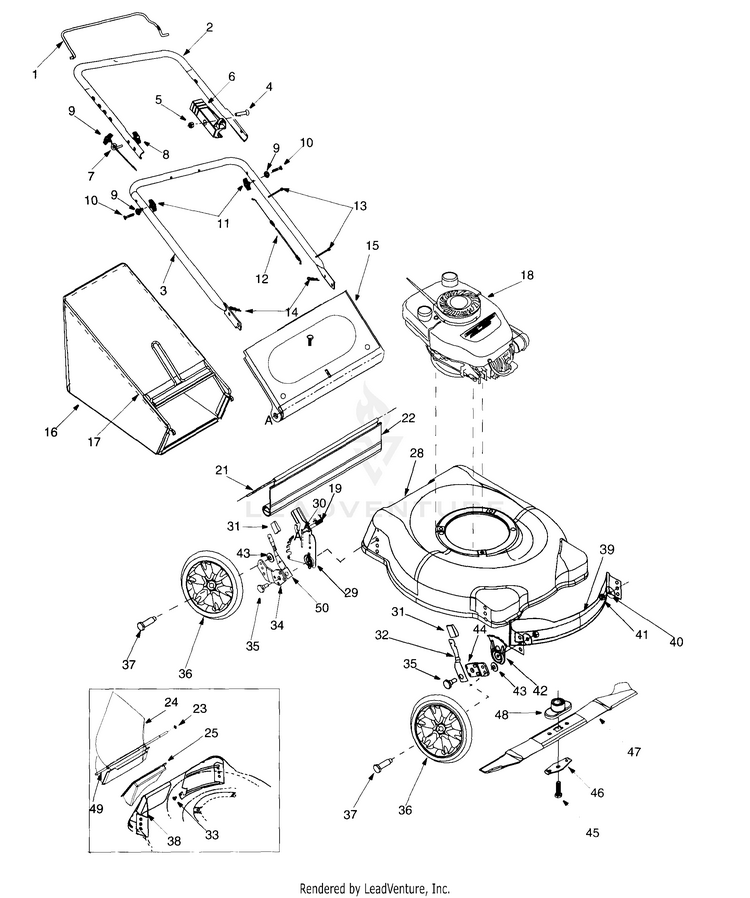

4.0 H.P. Lawn Mower

...
...
1
Std. Control Handle MTD-747-0824B-0637
...
2
UPPER HANDLE MTD-749-0886-0637
...
3
LOWER HANDLE MTD-749-0885-0637
...
4
SCREW 1/4-20 x 1.310 MTD-710-1270
...
5
Hex Lock Nut 1/4-20 MTD-712-0324
...
6
Cable Housing MTD-746-0883
...
7
Eye Bolt: Rope Guide MTD-710-1205
...
8
Star Knob MTD-720-04072A
...
9
Saddle Washer MTD-736-0451
...
10
SCREW 5/16-18 x 3.0 GR1 MTD-710-0450
...
11
Handle Knob 1/4-20 MTD-720-0279
...
12
Control Cable - 51" MTD-946-0737
...
13
Cable Tie MTD-725-0157
...
14
Hairpin Clip MTD-714-0104
...
15
CHUTE DOOR MTD-782-7025-0637
...
16
GRASSBAG (PRIVATE LABEL LOGO) MTD-764-0447
...
17
FRONT CATCHER FRAME (POWDER BLACK) MTD-764-0325-0637
...
18
Engine, Tecumseh MTD-NA
...
19
Torsion Spring, RH MTD-732-0678
...
?20
SPRING-DOOR (LH) MTD-932-0677
...
21
FLAP WIRE MTD-732-0712
...
22
FLAP MTD-731-1261
...
23
Speed Nut MTD-726-0201
...
24
REAR CHUTE DEFLECTOR MTD-731-1405A
...
25
Mulching Baffle Plug MTD-782-5007C
...
28
19" DECK ASSEMBLY MTD-782-0054B-0689
...
29
HANDLE BRACKET ASSEMBLY (RH) (POWDER BLACK) MTD-682-0516-0637
...
xx
KIT-HANDLE BRACKET (Not shown) MTD-753-05994
...
30
Weld Pin MTD-710-1248
...
31
HEIGHT ADJUSTMENT KNOB MTD-731-13116-1
...
32
Front Spring Lever MTD-94832
...
33
Sems Screw TT 3/8-16 x 1.0" MTD-710-0654A
...
34
BAR-PIVOT (RH) *ON MTD-14765
...
xx
BAR-PIVOT (LH) *ON MTD-14766
...
35
Shoulder Screw MTD-738-0507B
...
36
WHEEL ASSEMBLY SET OF 2 8x1.7 (GRAY) MTD-934-1841
...
37
Shoulder Scr. 3/8-16 x 1.445" MTD-738-0102
...
38
Mulching Baffle - R.R. MTD-782-5004B
...
39
FRONT BAFFLE MTD-782-5025-0637
...
40
BELL WASHER MTD-936-0356
...
41
Hex Nut 3/8-16 MTD-712-0798
...
42
Height Adjustment Plate MTD-787-01290A
...
43
Spring Washer MTD-736-0105
...
44
Pivot Bar: Front Wheel MTD-15262B
...
45
Hex Bolt 3/8-24 x 1.5" Gr.8 Special MTD-710-1044
...
46
BLADE BELL SUPPORT MTD-736-0524B-1
...
47
19" BLADE (MULCH) MTD-742-0739-0637
...
48
Blade Adapter MTD-748-0376E
...
49
SD Chute Rod MTD-711-0996
...
50
SPRING LEVER MTD-732-0417A
...
...
...
...
...
