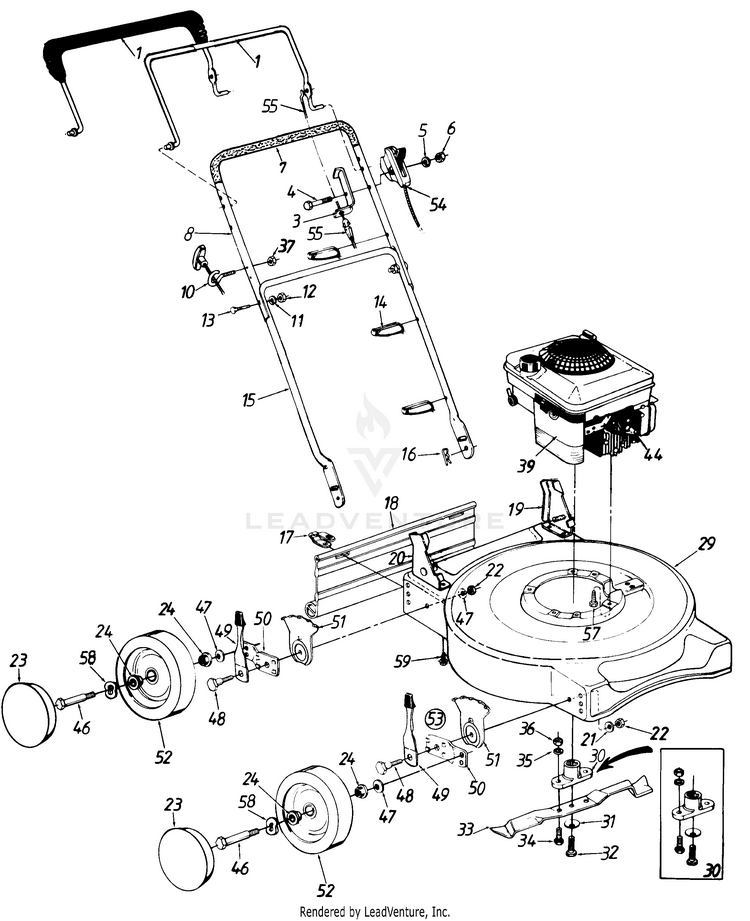

Craftsman 099 (247.384260) (1991) Walk Behind Mower

Model: 099 (247.384260) (1991)

Save
 Part Not Listed?Part Not Listed?
product name

Parts

...
...
1
CONTROL HANDLE ASSEMBLY (Std.) MTD-747-0748
...
xx
HANDLE ASSEMBLY MTD-731-1135
...
3
BRACKET-CA MTD-17174
...
4
HEX SCREW 1/4-20 x 1.875 MTD-710-1216
...
5
Spring Wash. .265 I.D. x .562 O.D. MTD-936-0175
...
6
HEX NUT 1/4-20 MTD-912-0287
...
7
Grip Foam (Optional) MTD-720-0295
...
8
UPPER HANDLE MTD-749-0756A
...
10
Rope Guide Bolt MTD-710-1205
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
12
HEX NUT 5/16-18 MTD-712-3010
...
13
BOLT-CARRIAGE-CURV 5/16-18 x 1.38 MTD-710-0671
...
14
Cable Tie MTD-725-0157
...
15
Lower Handle MTD-749-0928A-0637
...
16
Hairpin Cotter MTD-714-0104
...
17
HINGE CLIP MTD-17098P
...
18
Rear Flap MTD-731-0872B
...
19
BRACKET AS MTD-12935A
...
20
BRACKET ASSY-HDLE MTD-12936A
...
21
BELL WASHER MTD-936-0356
...
22
Hex Nut 3/8-16 Thd. MTD-712-0798
...
23
Hub Cap (Optional) MTD-NA
...
xx
Hub Cap MTD-731-0981C
...
xx
Hub Cap (Beige) MTD-731-0982C
...
xx
HUB CAP-BLACK PLAS MTD-720-0251
...
24
Wheel Bearings MTD-NA
...
xx
BALL BEARING (2 per wheel) MTD-941-0180
...
xx
BALL BEARING (2 per wheel) MTD-941-0180
...
29
638/N 20" Deck Ass'y. MTD-682-0002
...
30
SPLINED BLADE ADAPTER KIT MTD-753-0485
...
31
BELL WASHER MTD-936-0453
...
32
Hex Bolt 7/16-20 x 1.5" Lg. MTD-710-0757
...
33
20" BLADE (MULCH) MTD-742-0720-0637
...
34
Hex Bolt 3/8-24 x 1" Lg. MTD-710-1055
...
35
L-Wash. 3/8" I.D. MTD-736-0169
...
36
Hex Nut 3/8-24 Thd. MTD-712-0241
...
37
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
39
Engine MTD-NA
...
44
INSULATOR-SPARK PLUG MTD-735-0639
...
46
Axle Bolt MTD-738-0102
...
47
Bell-Wash. .400" I.D. x .88" MTD-736-0105
...
48
Shld. Bolt .50" Dia. x .357" MTD-738-0507B
...
49
Front Spring Lever MTD-94832
...
50
Pivot Bar MTD-15262B
...
51
Height Adjustment Plate MTD-787-01290A
...
52
Wheel Ass'y. Comp. MTD-NA
...
xx
Wheel - LH MTD-734-1855
...
xx
TIRE ASSEMBLY MTD-734-1655
...
xx
Front/Rear Wheel 8" x 2" "S" Wave MTD-734-1826
...
xx
Wheels - Front MTD-753-08093
...
xx
"S" Wave (Beige) MTD-734-1517B
...
53
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
xx
Height Adj. Ass'y. Comp. (R.H.) MTD-753-06761
...
54
THROTTLE CONTROL 58.8" (Models 094R, 096R & 098R only) MTD-946-0821A
...
xx
THROTTLE CONTROL 42.02" (Models 093R & 095R only) MTD-946-0832A
...
55
Control Cable (Models 094R, 096R & 098R only) MTD-946-0553
...
xx
Control Cable - 51" (Models 093R & 095R only) MTD-946-0737
...
57
Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg. MTD-710-0654A
...
58
Wave Washer .53" I.D. MTD-736-0232
...
59
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. MTD-710-0603
...
...
...
...
...
