Columbia by MTD ZTS46 KH 17ARCBDT897 (2019) Zero Turn Mower

Model: ZTS46 KH 17ARCBDT897 (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

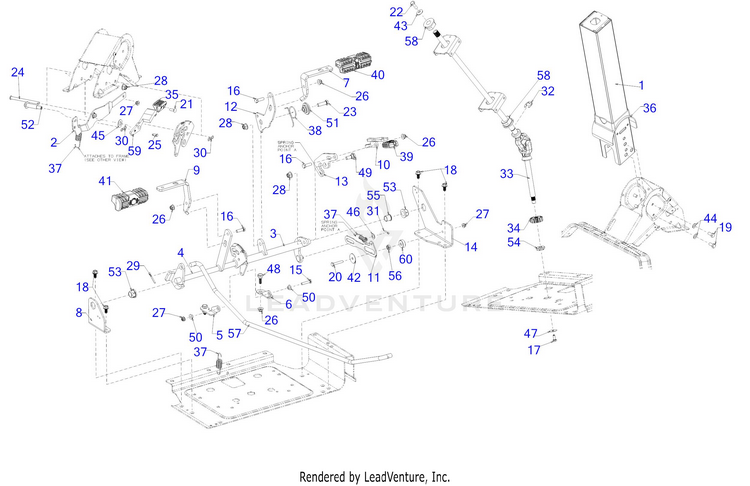

Controls

...
...
1
STEERING COLUMN ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-603-04938C
...
2
CRUISE BRAKE PEDAL ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-603-05315
...
3
DRIVE PEDAL SHAFT ASSEMBLY MTD-947-05089
...
4
BRAKE SHAFT ASSEMBLY MTD-947-05090
...
5
PEDAL SHAFT BRACKET (LH) *CHOOSE COLOR WHEN ORDERING* MTD-703-08604A
...
6
PEDAL SHAFT BRACKET (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-08606A
...
7
FORWARD DRIVE PEDAL *CHOOSE COLOR WHEN ORDERING* MTD-703-08646B
...
8
BEARING SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-08656
...
9
BRAKE PEDAL *CHOOSE COLOR WHEN ORDERING* MTD-703-08675A
...
10
REVERSE DRIVE PEDAL *CHOOSE COLOR WHEN ORDERING* MTD-703-08694B
...
11
NEUTRAL RETURN LINK MTD-903-09837A
...
12
FORWARD PEDAL BRACKET MTD-903-10338A
...
13
REVERSE PEDAL PIVOT PLATE MTD-703-10350
...
14
PEDAL BEARING BRACKET (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-10408A
...
15
HEX SCREW 1/4-20 x 1.25 MTD-710-0106
...
16
SCREW 5/16-18 x 1.0 GR5 MTD-710-0376
...
17
SCREW 1/4-20 x .62 SPEC GR5 MTD-710-0433
...
18
SCREW 5/16-18 x .750 MTD-710-04484
...
19
SCREW 5/16-18 x .62 GR5 MTD-710-0538
...
20
SCREW 1/4-20 x 1.50 GR.5 MTD-710-0606
...
21
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
22
SCREW 5/16-24 x .875 GR5 MTD-710-1245B
...
23
SCREW 3/8-16 x 1.25 GR5 MTD-710-3005
...
24
CLEVIS PIN 5/16 x 4.135 MTD-711-05068A
...
25
CLEVIS PIN .224 x .625 MTD-711-05670
...
26
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
27
FLANGE LOCK NUT MTD-712-04064
...
28
NUT MTD-712-04065
...
29
COTTER PIN-5/32 DIA MTD-714-0162
...
30
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
31
COTTER PIN MTD-914-0474
...
32
"E" - Ring MTD-716-0231
...
33
STEERING SHAFT ASSEMBLY MTD-717-04954
...
34
STEERING GEAR 14T MTD-717-04960
...
35
CRUISE TILT KNOB MTD-720-05145
...
36
LOWER STEERING COLUMN COVER MTD-731-07358C
...
37
EXTENSION SPRING MTD-732-04748
...
38
TORSION SPRING MTD-732-04949
...
39
REVERSE PEDAL PAD MTD-735-04117
...
40
FORWARD PEDAL PAD MTD-735-04118A
...
41
BRAKE PEDAL PAD MTD-735-04136
...
42
Fl-Wash. .285" I.D. x 1.25" O.D. MTD-736-0211
...
43
BELL WASHER .337 X.867 x .057 MTD-736-0242
...
44
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
45
FLAT WASHER .510 x .995 MTD-736-0272
...
46
Thrust Wash. .382" I.D. x .70" O.D. MTD-736-0314
...
47
FLAT WASHER MTD-736-3092
...
48
Shld. Bolt .437" x .286" MTD-738-0296
...
49
Shoulder Screw MTD-738-0380
...
50
SHOULDER SPACER MTD-738-04483
...
51
SHOULDER SPACER 1.50X.38X.38 MTD-738-04552B
...
52
SHOULDER SCREW .496X1.44 3/8-16 MTD-738-0929
...
53
FLANGE BEARING MTD-941-0225
...
54
HEX FLANGE BEARING 7/16 MTD-741-04543
...
55
NYLINER BEARING MTD-741-0495
...
56
BALL BEARING .25 X .625 MTD-741-05209
...
57
FRONT BRAKE ROD MTD-747-05654A
...
58
FLANGE BEARING MTD-948-0209
...
59
CRUISE LATCH MTD-748-04203
...
60
SPACER .267X1.00X.36 MTD-750-06497
...
...
...
...
...
