Columbia by MTD ZTS46 KH 17ARCBDT897 (2019) Zero Turn Mower

Model: ZTS46 KH 17ARCBDT897 (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

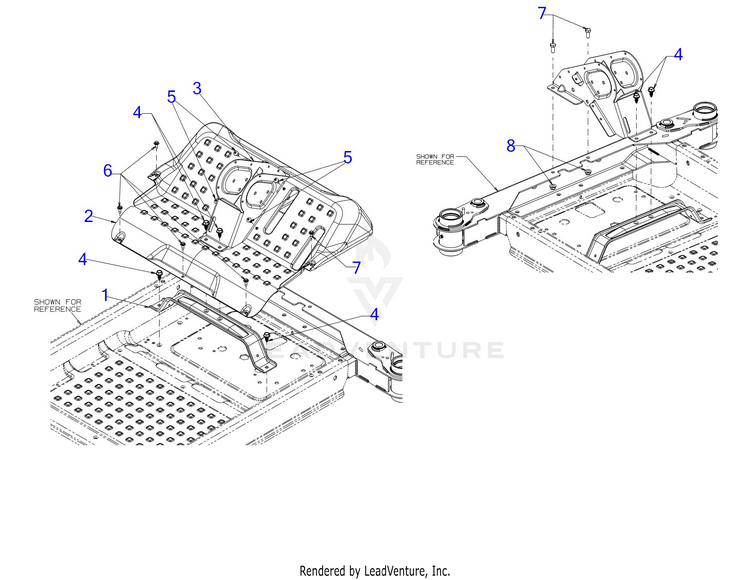

Floorboard

...
...
1
STEERING SUPPORT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-703-08620A
...
2
FLOORBOARD *CHOOSE COLOR WHEN ORDERING* MTD-703-08642B
...
3
LOWER STEERING COLUMN *CHOOSE COLOR WHEN ORDERING* MTD-703-11111A
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
SCREW 1/4-20 x .5 MTD-710-05070A
...
6
SCREW M6-1 x .625 MTD-710-06133
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
...
...
...
...
