Columbia by MTD ZTL50 KH FAB 17ARCACZ897 (2019) Zero Turn Mower

Model: ZTL50 KH FAB 17ARCACZ897 (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

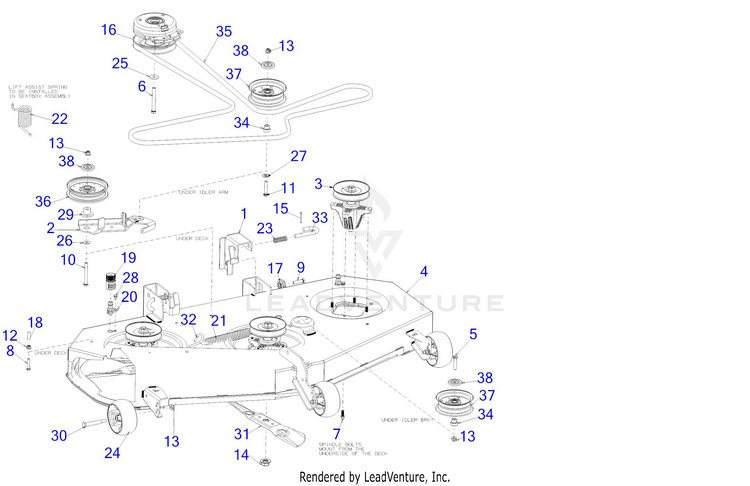

Deck

...
...
1
DECK HANGER BRACKET (LH) *CHOOSE COLOR WHEN ORDERING* MTD-603-05303
...
2
DECK IDLER ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-603-05350B
...
2
BELT KEEPER (Not Shown) MTD-783-08690A
...
3
SPINDLE ASSEMBLY (See Separate Breakdown) MTD-918-06980
...
3
Cub Cadet 50" SPINDLE ASSEMBLY (06980) Retail<BR/> Packaged Part MTD-490-130-C019
...
4
50" FAB DECK SHELL *CHOOSE COLOR WHEN ORDERING* MTD-983-05374C
...
5
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
6
SCREW 7/16-20 x 3.5 GR5 MTD-710-04379A
...
7
SCREW 5/16-18 X .875 MTD-710-06322
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
SCREW 3/8-16X1.5 GR5 MTD-710-3120
...
10
SCREW 3/8-16 x 3.25 GR8 MTD-710-3130
...
11
SCREW 3/8-16 x 2.0 GR5 MTD-710-3144
...
12
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
13
NUT MTD-712-04065
...
14
HEX NUT MTD-712-0417A
...
15
COTTER PIN-5/32 DIA MTD-714-0162
...
16
ELECTRIC PTO CLUTCH MTD-917-05209
...
17
DECK ADJUSTMENT GEAR MTD-917-05298
...
18
VINYL CAP MTD-720-05075
...
19
WATER NOZZLE MTD-921-04041
...
20
DECK WASH NOZZLE MTD-731-07487
...
21
EXTENSION SPRING MTD-732-04927
...
22
TORSION SPRING MTD-732-04947A
...
23
COMPRESSION SPRING MTD-932-3127
...
24
DECK WHEEL MTD-734-04155
...
24
WHEELS-DELUXE 5" Retail Packaged Part MTD-OEM-734-04155
...
25
FLAT WASHER .445 x 1.248 x .170 MTD-736-0322
...
26
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
27
WASHER MTD-736-3072
...
28
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
29
SHOULDER SPACER MTD-738-05081
...
30
SHOULDER BOLT MTD-938-3056
...
31
17.27" BLADE (2N1) MTD-942-05052A
...
31
Cub Cadet 50" HI LIFT BLADE SET Retail Packaged Part MTD-490-110-C155
...
31
Genuine Factory Parts 50" BLADE SET Retail Packaged Part MTD-490-110-M155
...
31
17.27" BLADE (2N1) MTD-742-05052-L0606
...
31
Cub Cadet 50" LOWLIFT BLADE SET Retail Packaged Part MTD-490-110-C182
...
31
Genuine Factory Parts 50" LOWLIFT BLADE SET Retail Packaged Part MTD-490-110-M182
...
31
50" 6 PT STAR XTREME MULCH BLADE MTD-942-05052-X
...
31
Cub Cadet 50" XTREME BLADE SET Retail Packaged Part MTD-490-110-C178
...
31
Genuine Factory Parts 50" XTREME MULCH BLADE SET Retail Packaged Part MTD-490-110-M178
...
32
DECK SPRING HOOK MTD-747-05608A
...
33
DECK RELEASE PIN MTD-747-06292
...
34
SHOULDER SPACER MTD-748-05029A
...
35
V-BELT B SEC x 143.5 LG MTD-954-05078
...
35
Cub Cadet 50" DECK DRIVE BELT Retail Packaged Part MTD-490-501-C070
...
36
FLAT IDLER PULLEY MTD-756-04511B
...
37
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
38
IDLER PULLEY CAP MTD-783-08389
...
...
...
...
...
