Columbia by MTD CZTL50 (17ADFACQ897) (2019) 17-Z Series

Model: CZTL50 (17ADFACQ897) (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

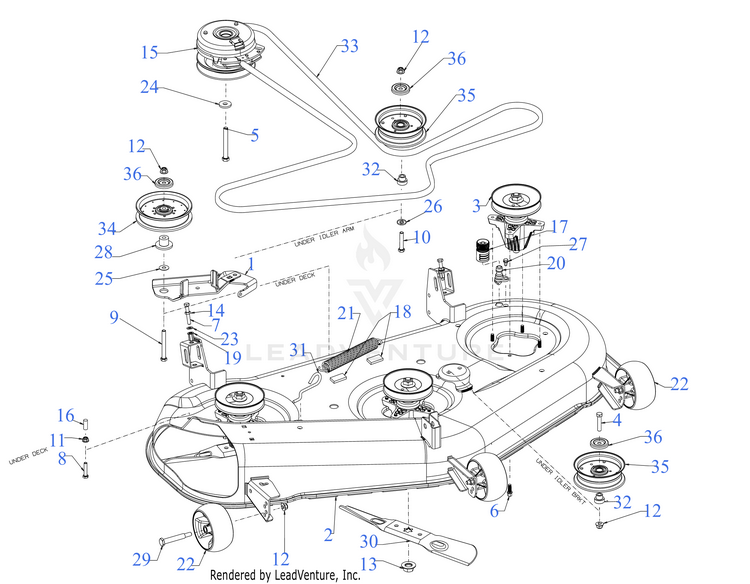

Deck

...
...
1
DECK IDLER ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-603-05350B
...
1
BELT KEEPER *CHOOSE COLOR WHEN ORDERING* MTD-783-08690A
...
2
50" DECK SHELL *CHOOSE COLOR WHEN ORDERING* MTD-603P05659A
...
3
BLADE SPINDLE ASSEMBLY W/PULLEY (See Separate Breakdown) MTD-918-06980
...
3
Cub Cadet 50" SPINDLE ASSEMBLY (06980) Retail Packaged Part MTD-490-130-C019
...
4
HEX SCREW 3/8-16 x 1.75 GR5 MTD-710-0347
...
5
SCREW 7/16-20 x 3.5 GR5 MTD-710-04379A
...
6
SCREW 5/16-18 x .875 MTD-710-06322
...
7
SCREW-FULL THREAD 5/16-18 GR5 MTD-710-07494
...
8
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
9
SCREW 3/8-16 x 3.25 GR8 MTD-710-3130
...
10
SCREW 3/8-16 x 2.0 GR5 MTD-710-3144
...
11
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
12
NUT MTD-712-04065
...
13
HEX NUT MTD-712-0417A
...
14
HEX NUT MTD-712-3007
...
15
ELECTRIC PTO CLUTCH MTD-917-05209
...
16
VINYL CAP MTD-720-05075
...
17
WATER NOZZLE ADAPTER MTD-921-04041
...
18
FOAM TAPE .75" WIDE x .25" THICK MTD-721-04382
...
19
NUT RIVET 5/16-18 MTD-728-05043
...
20
DECK WASH NOZZLE MTD-731-07487
...
21
EXTENSION SPRING MTD-732-04927
...
22
DECK WHEEL MTD-734-04155
...
22
WHEELS-DELUXE 5" Retail Packaged Part MTD-OEM-734-04155
...
23
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264
...
24
FLAT WASHER .445 x 1.248 x .170 MTD-736-0322
...
25
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
26
WASHER MTD-736-3072
...
27
SHOULDER SCREW 1/4-20 x .50 MTD-738-04502
...
28
SHOULDER SPACER MTD-738-05081
...
29
SHOULDER BOLT .50 x 2.5 x 3/8 -16 MTD-938-3056
...
30
17.27" BLADE (2N1) MTD-942-05052A
...
30
Cub Cadet 50" HI LIFT BLADE SET Retail Packaged Part MTD-490-110-C155
...
30
Genuine Factory Parts 50" BLADE SET Retail Packaged Part MTD-490-110-M155
...
30
17.27" BLADE (2N1) MTD-742-05052-L0606
...
30
Cub Cadet 50" LOWLIFT BLADE SET Retail Packaged Part MTD-490-110-C182
...
30
Genuine Factory Parts 50" LOWLIFT BLADE SET Retail Packaged Part MTD-490-110-M182
...
30
50" 6 PT STAR XTREME MULCH BLADE MTD-942-05052-X
...
30
Cub Cadet 50" XTREME BLADE SET Retail Packaged Part MTD-490-110-C178
...
30
Genuine Factory Parts 50" XTREME MULCH BLADE SET Retail Packaged Part MTD-490-110-M178
...
31
DECK SPRING HOOK MTD-747-05608A
...
32
SHOULDER SPACER MTD-748-05029A
...
33
V-BELT B SEC x 143.5 LG MTD-954-05078
...
33
Cub Cadet 50" DECK DRIVE BELT Retail Packaged Part MTD-490-501-C070
...
34
FLAT IDLER PULLEY MTD-756-04511B
...
35
IDLER PULLEY 4.50" DIA MTD-756-05034A
...
36
IDLER PULLEY CAP MTD-783-08389
...
...
...
...
...
