Columbia by MTD CZTL50 (17ADFACQ897) (2019) 17-Z Series

Model: CZTL50 (17ADFACQ897) (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

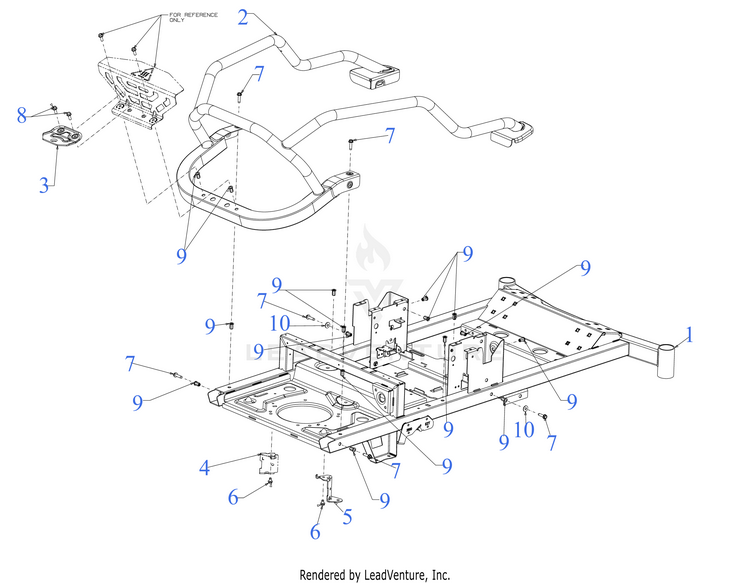

Frame

...
...
1
FRAME *CHOOSE COLOR WHEN ORDERING* MTD-603-05640D
...
2
UPPER FRAME *CHOOSE COLOR WHEN ORDERING* MTD-603-05860
...
3
HITCH PLATE *CHOOSE COLOR WHEN ORDERING* MTD-703-12302
...
4
TRANSMISSON MOUNT SUPPORT (LH) *CHOOSE COLOR WHEN ORDERING* MTD-703-12963A
...
5
TRANSMISSON MOUNT SUPPORT (RH) *CHOOSE COLOR WHEN ORDERING* MTD-703-13882
...
6
SCREW 5/16-18 x .500 MTD-710-0607
...
7
SCREW 5/16-18 x 1.25 MTD-710-0817
...
8
SCREW 5/16-18 x .875 GR5 HXFLG HD MTD-710-1238A
...
9
NUT RIVET 5/16-18 LOCK MTD-728-05088
...
10
Fl-Wash. .344" I.D. MTD-736-0159
...
...
...
...
...
