Columbia GT5025 (14AQ94KP897) (2013) 14AQ94KP897 (2013) Garden Tractor

Model: GT5025 (14AQ94KP897) (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

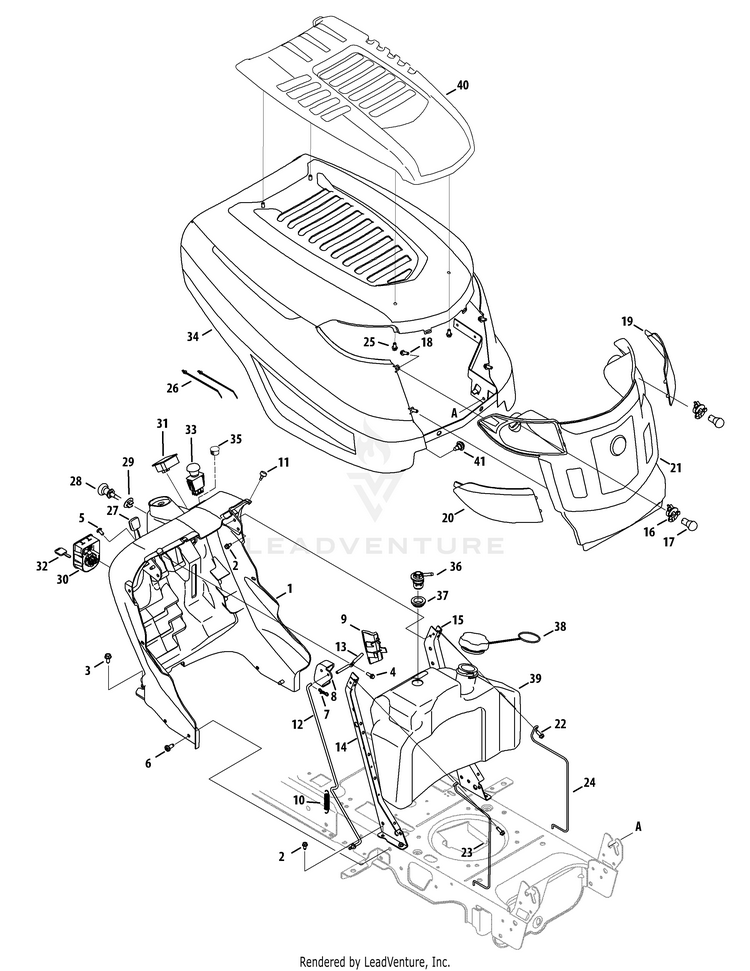

Hood & Grille

...
...
1
DASH PANEL K-STYLE (ELECTRIC) MTD-931-04664
...
2
Screw, 1/4-20 x .50 MTD-710-0599
...
3
SCREW 5/16-18 x .750 MTD-710-04484
...
4
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
5
Torx Mach. AB-Tapp Scr. 1/4-14 x .625 Lg MTD-710-1017
...
6
Screw 5/16-18 x .75 MTD-710-1611B
...
7
Bow Tie Cotter Pin MTD-714-04040
...
8
PARK/BRAKE LEVER MTD-731-06639
...
9
COVER PLATE MTD-731-06642
...
10
Extension Spring .500 Dia. x 2.733" Lg. MTD-732-04580
...
11
Bumper MTD-735-0271A
...
12
PARK BRAKE ROD MTD-747-05008
...
13
Pivot Rod MTD-747-1196
...
14
DASH SUPPORT MTD-783-04285F-0637
...
15
DASH SUPPORT MTD-783-04323F-0637
...
16
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
17
Lamp MTD-925-0963
...
18
Screw 1/4 x .75 MTD-710-05108
...
19
Lens LH MTD-731-06095
...
20
Lens RH MTD-731-06096
...
21
GRILLE (K STYLE) MTD-931-06796A
...
22
TT Scr. 1/4-20 x .625 Lg. MTD-710-1652
...
23
SUPPORT ROD (LH) MTD-747-04161
...
24
TANK SUPPORT ROD (LH) MTD-747-04946
...
25
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
26
Cable Tie MTD-725-0157
...
27
Throttle/Choke Cont. Cable (Kohler Twin)(w/Electric PTO) MTD-946-04542
...
28
Choke Cable (Kohler Twin) Not used on these models MTD-NA
...
29
Choke Plug (Single Cyl.) MTD-731-1999
...
30
IGNITION MODULE SWITCH RMC (MAN PTO BLK) MTD-925-06119C
...
31
HOUR METER/SERVICE MINDER MTD-925-06170B
...
32
Key MTD-925-1745A
...
33
PTO SWITCH (BLACK KNOB) TEXT SYM MTD-925-04174A
...
34
HOOD ASSEMBLY(K STYLE) (OYSTER GRAY) MTD-683-04774-0662
...
35
CHOKE HOLE PLUG MTD-726-04096
...
36
Rollover Valve MTD-751-12118
...
37
Rubber Grommet MTD-735-04081
...
38
Cap-Fuel (w/hoop) MTD-951-12182
...
39
FUEL TANK ASSEMBLY 2.5 GAL LO PRM MTD-951-04309
...
40
Hood Scoop MTD-731-06194B
...
41
Shoulder Screw 5/16-18: .43 x .29 MTD-738-04091A
...
xx
Harness (not shown)(Elect. PTO/RMC/Hr. Meter) MTD-925-04104
...
...
...
...
...
