Columbia GT5025 (14AQ94KP897) (2013) 14AQ94KP897 (2013) Garden Tractor

Model: GT5025 (14AQ94KP897) (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

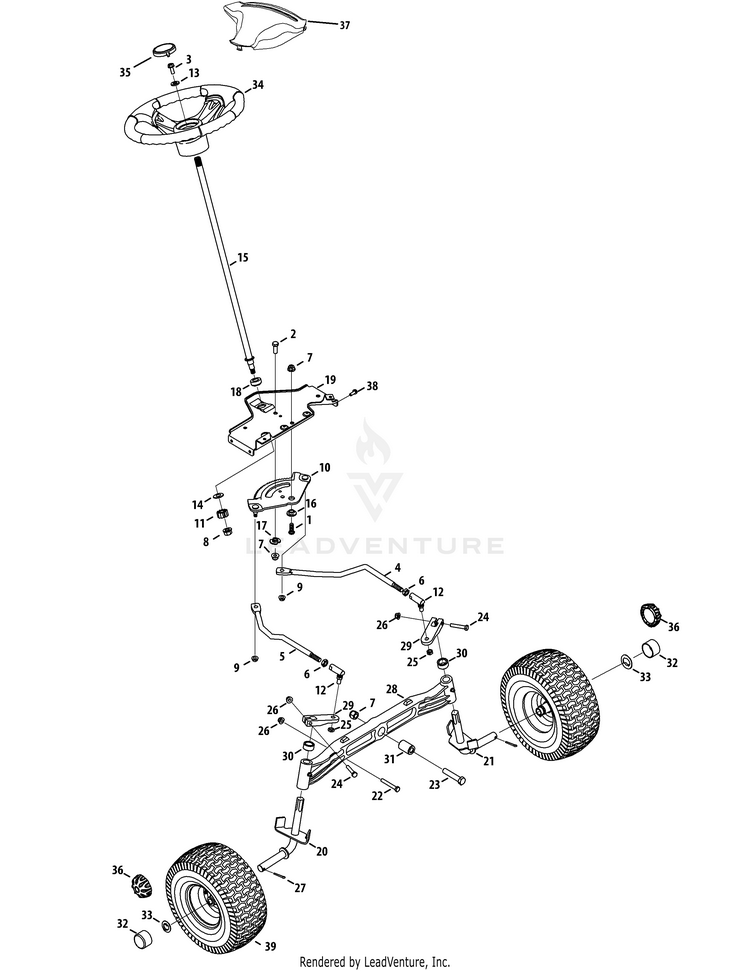

Steering

...
...
1
Screw, 3/8-16 x 1.0 MTD-710-04095
...
2
Hex Screw 3/16 x 1.00 MTD-710-0514
...
3
Hex Screw 5/16-18 x 1.00 Special MTD-710-0643
...
4
Link, Drag LH MTD-711-04998
...
5
Link, Drag RH MTD-711-04999
...
6
Hex Jam Nut 7/16-20 MTD-912-0240
...
7
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
8
Flange Lock Nut, 7/16-20 MTD-712-0459
...
9
HEX FLANGE NUT MTD-712-3004A
...
10
Steering Gear, 11/90 Ratio MTD-717-1550F
...
11
Steering Pinion Gear MTD-717-1554
...
12
Ball Joint, 7/16 - 20 MTD-923-0448A
...
13
Fl.-Wash 3/8" 1.C) x 875" OD MTD-736-3004
...
14
Flat Washer .510 x 1.120 x .060 MTD-736-3084
...
15
Steering Shaft .625 OD x 24.25 MTD-738-04263
...
16
Shoulder Spacer .385 x 1.25 x .3025 MTD-738-04363
...
17
SHOULDER SPACER MTD-738-04364B
...
18
Hex Flange Bearing 5/8 MTD-741-04237B
...
19
STEERING SUPPORT BRACKET MTD-783-06043-0637
...
20
STEERING AXLE (RH) MTD-938-04040-0637
...
21
STEERING AXLE (LH) MTD-938-04041-0637
...
22
Hex Bolt 5/16-18 x 2.25 MTD-710-0395
...
23
Hex Cap Screw, 3/8-16 x 2.5 MTD-710-0859
...
24
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
25
Hex Cent L-Nut 3/8-24 MTD-912-0214
...
26
Flange Locknut 5/16-18 Gr. F, Ny lon MTD-712-04063
...
27
Cotter Pin 5/32" Dia. MTD-714-0162
...
28
Pivot Bar (cast) MTD-719-04413A
...
29
Steering, Block MTD-748-04278
...
30
Spacer .710 ID x .125 OD x .56 MTD-748-04068
...
31
PIVOT AXLE BUSHING MTD-750-05280
...
32
Hub Cap (w/ball bearings) MTD-931-3020
...
33
Flat Washer .755 x 1.92 x .060 (w/ball bearings) MTD-736-0866
...
34
Steering Wheel, Standard Grip MTD-631-04028
...
34
STEERING WHEEL MTD-631-04008B
...
35
Steering Wheel Cap (spig) logo Not used on these models MTD-NA
...
36
Hub Cap Not used on these models MTD-NA
...
37
STEERING WHEEL COVER MTD-731-04064A
...
38
SCREW 5/16-18 x .750 MTD-710-04484
...
39
See "Front and Rear Wheels" MTD-NA
...
...
...
...
...
