Columbia GT5025 (14AQ94KP897) (2013) 14AQ94KP897 (2013) Garden Tractor

Model: GT5025 (14AQ94KP897) (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

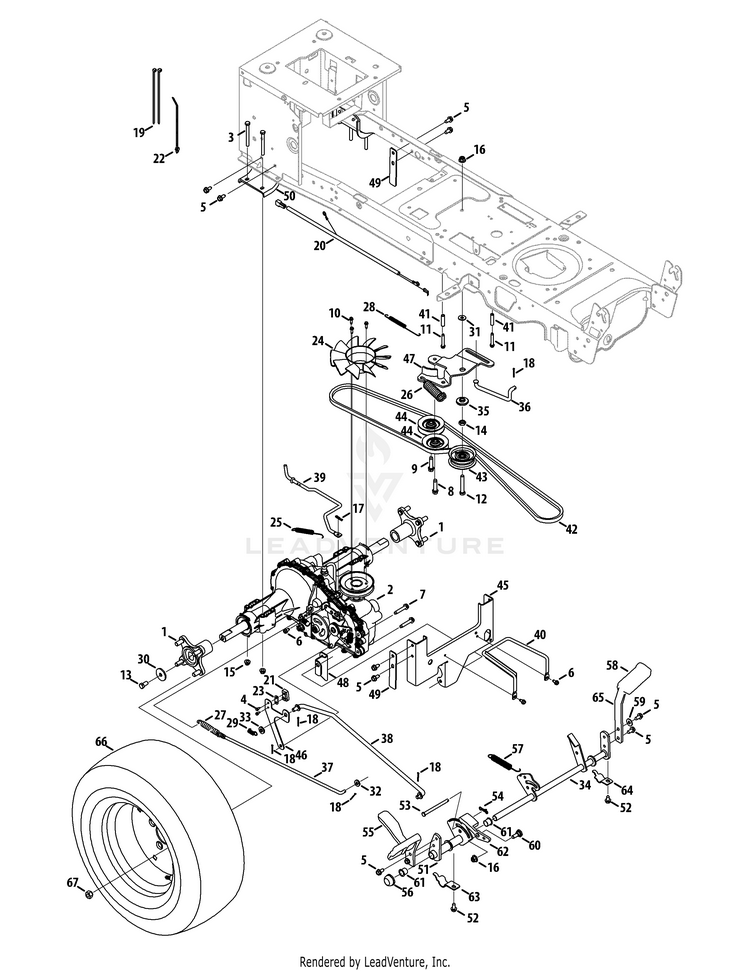

Drive

...
...
1
Wheel Hub MTD-918-04317
...
2
Transmission MTD-918-04917
...
3
Hex Screw 5/16-18 X 3.00 MTD-710-0189
...
4
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
5
SCREW 5/16-18 x .750 MTD-710-04484
...
6
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
7
Hex Wash TT-Tap Scr 5/16-18 x 1.75 Lg. MTD-710-0909A
...
8
Hex L-Wash HD Scr 3/8-16 x 1.5 MTD-710-1007
...
9
Hex L-Wash TT Scr. 3/8-16 x 1.88 MTD-710-1008
...
10
SCREW #12-24 x .625 MTD-710-1189
...
11
Hex Washer Hd. TT Screw 1/4-20 x 1.625 MTD-710-1325
...
12
Hex Bolt 3/8-16 x 2.25" Lg. MTD-710-3011
...
13
Hex Cap Lock Screw 3/8-16 x .75 Gr. 5 MTD-710-3119
...
14
Hex Jam Nut 7/16-20 MTD-912-0240
...
15
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
16
Flange Locknut 3/8-16 Gr. F Nylon MTD-712-04065
...
17
Hairpin Clip MTD-714-0104
...
18
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
19
Cable Tie MTD-725-0157
...
20
Jumper Harness MTD-725-04791A
...
21
SAFETY SPRING SWITCH MTD-725-1644
...
22
Push Mount Tie MTD-926-0154
...
23
Insulator Nut Plate MTD-926-0320
...
24
Fan MTD-931-1449A
...
25
EXTENSION SPRING .50 x 5 MTD-732-04528
...
26
Extension Spring 1.0 dia. x 4.75" lg. MTD-732-04792
...
27
Extension Spring .59 dia. x 4.0" Lg. MTD-732-0716D
...
28
Extension Spring .38 dia. x 5.6" Lg. MTD-732-0932
...
29
Extension Spring 3/8 dia. x 1.44" Lg. MTD-732-3118
...
30
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227
...
31
Fl-Wash. 390" I.D. x 1.0" MTD-736-0344
...
32
Flat Washer .312 ID x .75 OD MTD-936-3008
...
34
BRAKE PEDAL SHAFT ASSEMBLY MTD-647-04152D
...
35
SHOULDER SPACER 1.375X.380X.183 MTD-738-04420
...
36
FOOTPEDAL BYPASS ROD MTD-747-04957A
...
37
BRAKE ROD MTD-747-05124
...
38
HYDRO CONTROL ROD MTD-747-05125A
...
39
HYDRO DISENGAGEMENT ROD MTD-747-05130
...
40
Belt Keeper MTD-747-05181
...
41
Spacer .260 x .372 x 1.420 MTD-750-04456
...
42
V-Belt, 4L x 77.0 MTD-954-04244A
...
43
Idler Pulley, Flat 2.75 OD MTD-756-04224
...
44
Idler Pulley V-Type x 3.06 MTD-756-04325
...
45
TRANSMISSION TORQUE BRACKET MTD-783-05443A-0637
...
46
SERVICE KIT-REV SWITCH ACT BRNLAUD MTD-753-06760
...
47
DOUBLE IDLER BRACKET MTD-783-06027B
...
48
TRANSMISSION DECK BRACKET MTD-783-06501A-0637
...
49
TORQ BRACKET SHIM PLATE MTD-783-06503
...
50
Axle Bracket MTD-783-0693A-0637
...
51
PEDAL BRACKET ASSEMBLY MTD-683-04571
...
52
Self-tapping Screw 5/16-18 x .625 MTD-710-0604A
...
53
Clevis Pin 5/16 x 3.985 MTD-711-05068A
...
54
Bow-Tie Cotter Pin MTD-714-04040
...
55
Control Pedal MTD-719-0584B-0637
...
56
Push Cap 5/8" Dia Rod MTD-726-0214
...
57
Extension Spring .63 dia. x 4.95 MTD-732-04587
...
58
Brake Pedal Pad MTD-735-04136
...
59
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
60
Shoulder Screw MTD-738-0380
...
61
NYLINER BEARING MTD-741-0495
...
62
Cruise Latch MTD-748-04203
...
63
Pedal Strap Support Bracket MTD-783-05914
...
64
Pedal Strap Support Bracket MTD-783-05940
...
65
FOOT BRAKE PEDAL (POWDER BLACK) MTD-783-06103A-0637
...
66
See "Front and Rear Wheels" MTD-NA
...
67
Lug Nut 7/16-14 MTD-712-3050
...
...
...
...
...
