Columbia GT5025 (14AQ94KP897) (2013) 14AQ94KP897 (2013) Garden Tractor

Model: GT5025 (14AQ94KP897) (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

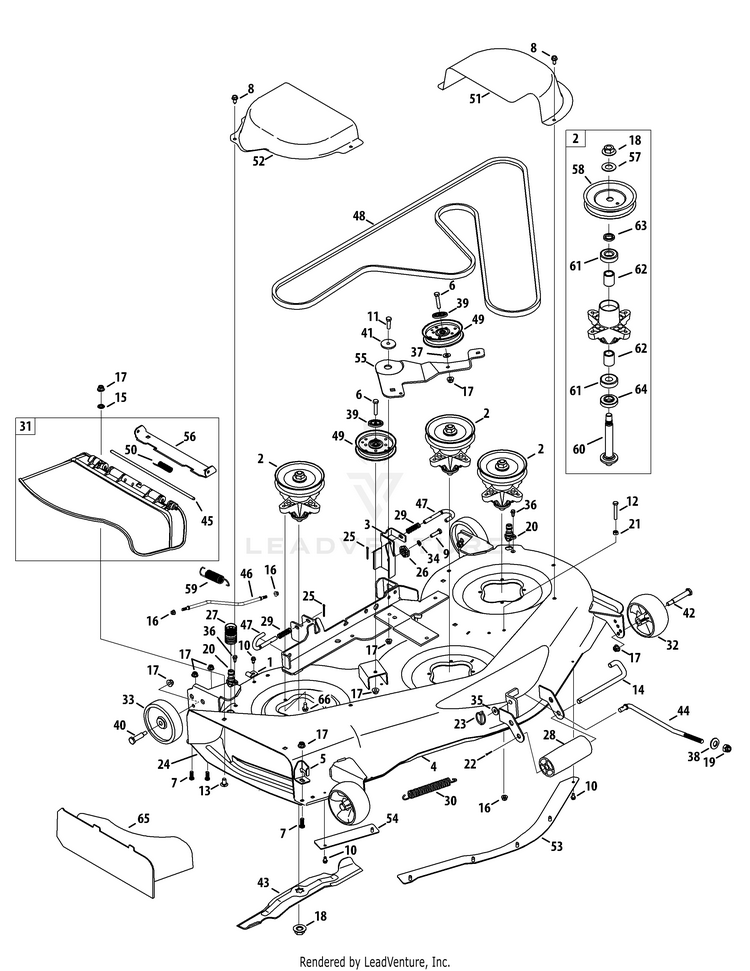

Mower Deck 50-Inch

...
...
1
Retainer Hook Brkt. MTD-96606
...
2
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG MTD-918-04125C
...
3
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
4
50" DECK SHELL (MAJESTIC ORANGE) MTD-983-04644A-0606
...
5
Chute Stop Deflector MTD-703-3279
...
6
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
7
Screw, 3/8-16 x 1.0 MTD-710-04095
...
8
SCREW 5/16-18 x .750 MTD-710-04484
...
9
Hex Bolt 5/16-18 x 1.25 MTD-710-0528
...
10
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
11
Hex Bolt 3/8-16 x 1.25 MTD-710-3005
...
12
Hex Hd Cap Scr. 5/16-18 x 2.0 Gr. 5 MTD-710-3103
...
13
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
14
Roller Pin 1/2-Inch x 7.31 Lg MTD-711-3314A
...
15
Push Nut 3/8 MTD-712-0229
...
16
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
17
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
18
HEX NUT MTD-712-0417A
...
19
Flexlock Nut 1/2-13 MTD-712-04243
...
20
Deck Water Nozzle MTD-731-07487
...
21
HEX NUT 5/16-18 MTD-712-3010
...
22
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
23
Lynch Pin, .1875 MTD-753-04070
...
24
Finger Guard MTD-703-3511B-0637
...
25
Cotter Pin 1/8" Dia. MTD-714-0470
...
26
Deck Adjustment Gear MTD-917-04074
...
27
Water Nozzle Adaptor MTD-921-04041
...
28
ROLLER MTD-731-05679B
...
29
Compression Spring .535 OD x 1.75" Lg. MTD-732-04652
...
30
Extension Spring .94 x 6.74 MTD-732-0459C
...
31
Chute Ass’y MTD-631-04092C
...
32
Deck Wheel 5.0 MTD-734-04155
...
33
DECK WHEEL (5.0 DIA X 1.38) MTD-734-06265
...
34
L-Wash 5/16 ID MTD-936-0119
...
35
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
36
Shoulder Screw 1/4-20 x 0.50 MTD-738-04278
...
37
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
38
Cupped Washer .63 x 1.25 x .18 MTD-736-0317
...
39
Pulley Cap MTD-783-07236
...
40
Shoulder Bolt .498 Dia x 1.53 x 3/8-16 MTD-938-0373
...
41
Spacer, Shoulder .884 x .190 MTD-738-04162C
...
42
Shoulder Screw MTD-938-3056
...
43
Blade 17.90 MTD-942-04053C
...
44
DECK FRONT LIFT ROD MTD-747-05141B
...
45
Hinge Pin .3125 x 7.96 MTD-711-04565
...
46
Deck Sway Rod MTD-747-05462
...
47
Deck Release Pin MTD-747-1116
...
48
V-Belt MTD-954-04107
...
49
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
50
Torsion Spring MTD-732-04372
...
51
LH Belt Cover MTD-783-05280-4028
...
52
RH Belt Cover MTD-783-05281-0606
...
53
Deck Skirt Center MTD-783-04414A-0606
...
54
Deck Shirt RH MTD-783-04415-0606
...
55
Idler Bracket MTD-783-05303-0637
...
56
Chute Bracket MTD-783-05030
...
57
Flat Washer .760 ID x 1.50 OD x .120 MTD-736-0315
...
58
Deck Pulley MTD-756-04216
...
59
Extension Spring 1.15 OD x 5.99 MTD-732-0934
...
60
Spindle Shaft MTD-738-1010A
...
61
BALL BEARING MTD-741P0919B
...
62
Spacer .800 x 1.10 x 1.322 MTD-750-1000
...
63
Spacer .790 x 1.25 x 1.75 MTD-748-0160A
...
64
Spacer .79 x 1.82 x .55 MTD-750-1349A
...
65
Mulching Plug MTD-731-04651
...
66
Hex. TT Screw 5/16-18 x .75 MTD-710-1260A
...
...
...
...
...
