Columbia GT5025 (14AQ94KP897) (2013) 14AQ94KP897 (2013) Garden Tractor

Model: GT5025 (14AQ94KP897) (2013)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

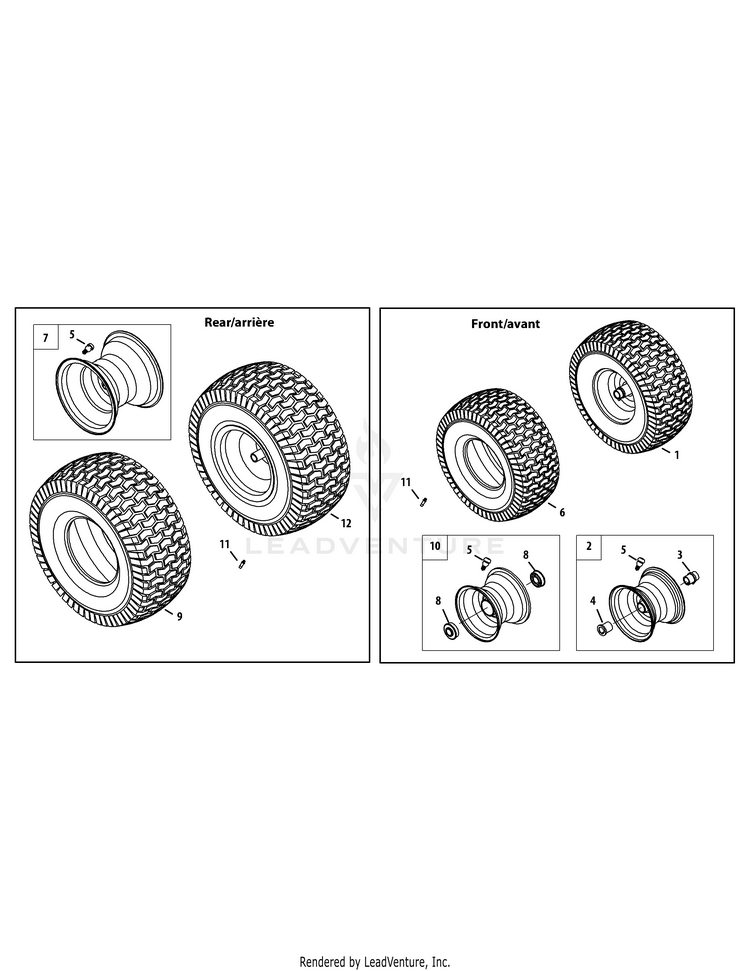

Front and Rear Wheels

...
...
1
Wheel Ass’y, 16 x 6.5 Ball Brg. (Grey) Not sold as assembly, order components below MTD-NA
...
2
Rim Ass’y, Plst. Brg. Not used on these models MTD-NA
...
3
Flg. Bearing .760 ID w/fitting Not used on these models MTD-NA
...
4
Flg. Bearing .760 x 1.0 x 1.20 Not used on these models MTD-NA
...
5
Air Valve MTD-934-0255
...
6
Tire MTD-734-1727
...
7
RIM ASSEMBLY (12 x 7) (OYSTER GREY) MTD-634Z04238-0662
...
8
BRG-BALL .754 ID x 1.750 OD MTD-941-04137A
...
9
Tire, 22 x 9.5 x 12 Square Shoulder Used on model GT5025 MTD-734-04174
...
9
Tire, 23 x 10.5 x 12 Square Shoulder Used on model GT5427 MTD-734-04147-0901
...
10
FRONT RIM ASSEMBLY W/BREARINGS (OYSTER GREY) MTD-934-04090B-0662
...
11
Grease Fitting MTD-737-0224
...
12
WHEEL ASM COMP.23X MTD-634-0202A
...
...
...
...
...
