Columbia 31AH5DVK897 CA324HD (2018) Snow Thrower

Model: 31AH5DVK897 CA324HD (2018)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?

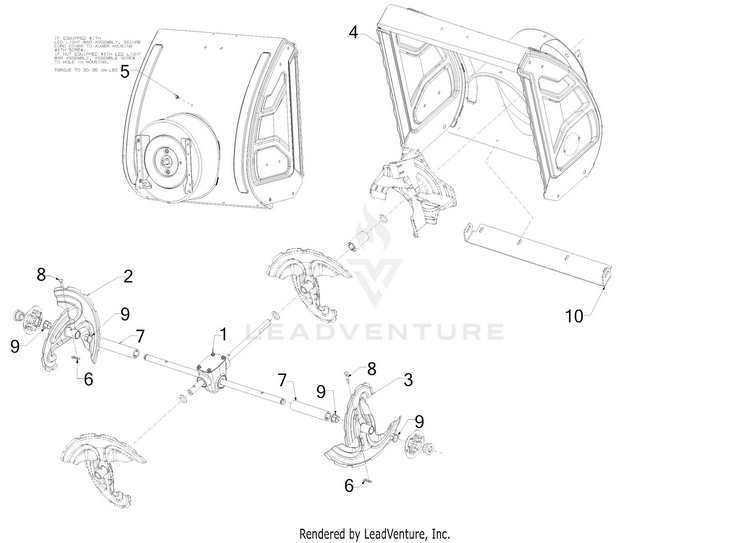

product name

Auger Housing

...
...
1
24" AUGER GEARBOX ASSEMBLY (See Separate Breakdown) MTD-918-07027
...
2
SPIRAL ASSEMBLY (RH) *CHOOSE COLOR WHEN ORDERING* MTD-684-05064
...
3
SPIRAL ASSEMBLY (LH) *CHOOSE COLOR WHEN ORDERING* MTD-684-05065
...
4
24" HD LED AUGER HOUSING ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-684-05191A
...
5
SCREW M6-1 x .625 MTD-710-06133
...
6
BOW TIE COTTER PIN 1/4-5/16 MTD-714-04040
...
7
SPACER MTD-731-10282
...
8
SHEAR PIN .25 x 1.50 GR2 MTD-738-05273
...
8
Cub Cadet SHEAR PINS (3X SNOW) Retail Packaged Part MTD-490-241-C062
...
9
FLANGE BUSHING MTD-741-0493C
...
10
SHAVE PLATE 23.50 *CHOOSE COLOR WHEN ORDERING* MTD-790-00652
...
...
...
...
...
