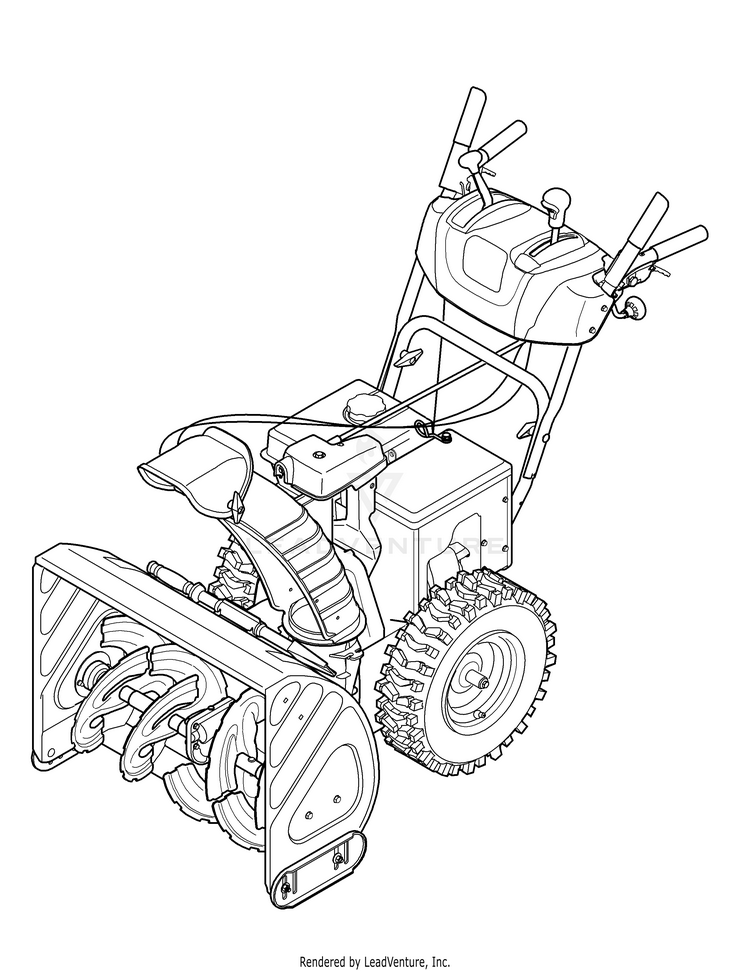

Columbia 31AH55K5897 (2009) 11530PC (2009) Snow Thrower

Model: 31AH55K5897 (2009) 11530PC (2009)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Ignition Key MTD-951-10630
...
xx
Snow Removal Tool MTD-931-2643
...
xx
Drive Cable MTD-946-04229B
...
xx
Auger Cable MTD-946-04230B
...
xx
Chute Cable MTD-946-04527
...
xx
Speed Cable MTD-946-04396A
...
xx
STEERING CABLE MTD-946-0956C
...
xx
Spiral Assembly, LH MTD-684-04107A-0637
...
xx
Spiral Assembly, RH MTD-684-04108A-0637
...
xx
Shave Plate 24" Models *CHOOSE COLOR WHEN ORDERING* MTD-790-00120
...
xx
Shave Plate 26"Models *CHOOSE COLOR WHEN ORDERING* MTD-790-00121
...
xx
Shave Plate 28" Models *CHOOSE COLOR WHEN ORDERING* MTD-790-00118
...
xx
Shave Plate 30" Models *CHOOSE COLOR WHEN ORDERING* MTD-790-00119
...
xx
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
xx
Slide Shoe MTD-790-00091-0606
...
xx
Shear Pin MTD-738-04124A
...
xx
Bow Tie Cotter Pin MTD-714-04040
...
xx
Lamp #1295 - 26"-30" Models MTD-925-04213
...
xx
Lamp - 24" Models MTD-925-1629
...
xx
Auger Drive Belt MTD-954-04050A
...
xx
Belt, .500 x 37.00 MTD-954-04195A
...
xx
Belt 3/8 X 34.4" Lg. - 24" Models MTD-954-0367
...
xx
Belt 3/8 X 35.68" Lg. - 26" & 30" Models MTD-954-04201A
...
xx
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
xx
WHEEL ASSEMBLY (15x5x6) (LH) (OYSTER GRAY) MTD-634Z07717-0662
...
xx
WHEEL ASSEMBLY (15x5x6) (RH) (OYSTER GRAY) MTD-634Z07718-0662
...
xx
Wheel Assembly - LH - 26" Models MTD-634-04145-0911
...
xx
Wheel Assembly - RH - 26" Models MTD-634-04146-0911
...
xx
WHEEL ASSEMBLY (16 x 6.5 x 8) (LH) (OYSTER GRAY) MTD-634Z07695-0662
...
xx
WHEEL ASSEMBLY (16 x 6.5 x 8) (RH) (OYSTER GRAY) MTD-634Z07696-0662

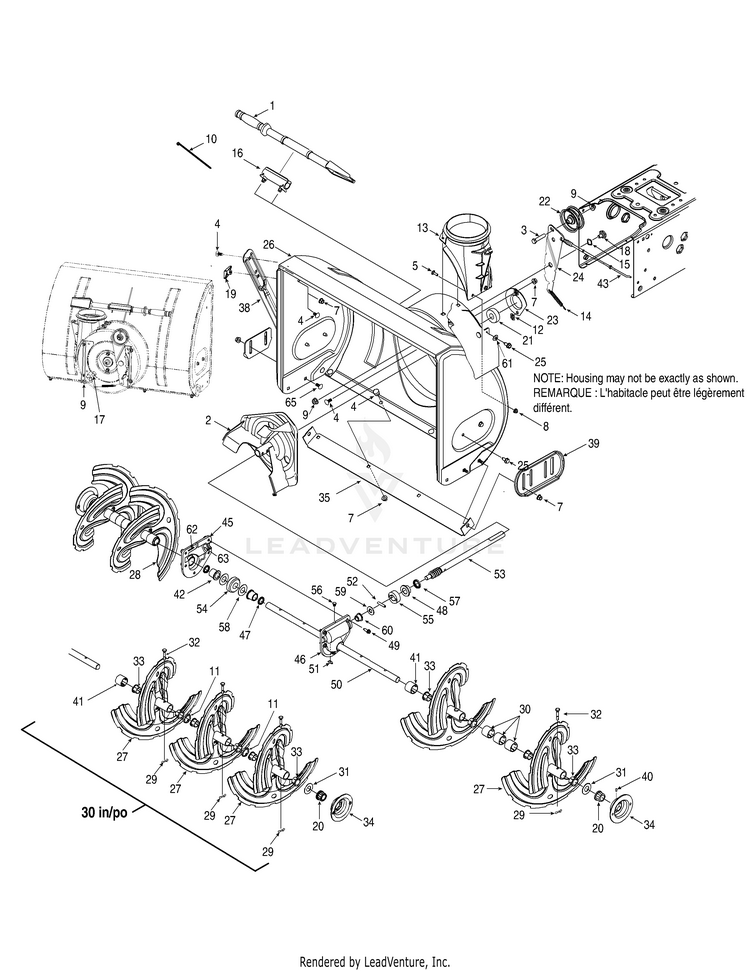

Auger & Housing Assembly

...
...
1
Clean-Out Tool MTD-931-2643
...
2
3 BLADE 12" IMPELLER MTD-684-04057C-0637
...
3
Hex Screw 3/8-16 x 1.75 MTD-710-0347
...
4
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
5
Carriage Screw 1/4-20 x .75 Gr. 5 MTD-710-0703
...
7
Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
8
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
9
Hex L-Flanged Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
10
Cable Tie MTD-725-0157
...
11
Spacer 1.25 x .75 x 3/16" Lg. MTD-731-04871
...
12
Nut, Push-on, .25 Dia. MTD-726-04012
...
13
CHUTE ADAPTER MTD-731-04705D
...
14
Extension Spring .38 OD x 4.59" Lg. MTD-732-04460
...
15
Wave Washer .660 ID x .88 OD x .010 MTD-736-0174
...
16
CLEANOUT TOOL MOUNTING CLIP MTD-731-11421
...
17
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
18
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
19
Hand Knob MTD-720-04072A
...
20
Hex. Flange Brg. .751" I.D. MTD-941-0245
...
21
Self-aligning Bearing MTD-941-0309
...
22
Flat Idler Pulley 2.75" OD MTD-756-04224
...
23
BEARING HOUSING 1.85 ID MTD-790-00075B
...
24
AUGER IDLER BRACKET MTD-790-00080D
...
25
SCREW 5/16-18 x .750 MTD-710-04484
...
26
24" AUGER HOUSING (MAJESTIC ORANGE) 24-Inch MTD-684-04265A-0606
...
26
26" AUGER HOUSING (MAJESTIC ORANGE) 26-Inch MTD-684-04264A-0606
...
26
28" AUGER HOUSING (MAJESTIC ORANGE) 28-Inch MTD-684-04268A-0606
...
26
30" AUGER HOUSING (MAJESTIC ORANGE) 30-Inch MTD-684-04267A-0606
...
27
Spiral Assembly, LH MTD-684-04107A-0637
...
28
Spiral Assembly, RH MTD-684-04108A-0637
...
29
Bow Tie Cotter Pin MTD-714-04040
...
30
SPACER 1.25OD x .75ID X1.00 LG 24-28" Models MTD-731-04870
...
30
SPCR 1.25 OD x 75IDX2.00LG 30" Models MTD-731-04871
...
31
Flat Washer .760 ID x 1.49 OD MTD-736-0188
...
32
Shear Pin .25 x 1.5 Gr. 2 MTD-738-04124A
...
33
FLANGE BUSHING MTD-741-0493C
...
34
Bushing Housing MTD-790-00087A-0637
...
35
24" SHAVE PLATE *CHOOSE COLOR WHEN ORDERING* MTD-790-00120
...
35
26" SHAVE PLATE *CHOOSE COLOR WHEN ORDERING* MTD-790-00121
...
35
28" SHAVE PLATE *CHOOSE COLOR WHEN ORDERING* MTD-790-00118
...
35
30" SHAVE PLATE *CHOOSE COLOR WHEN ORDERING* MTD-790-00119
...
38
Drift Cutter - Optional MTD-790-00181-0606
...
39
Reversible Slide Shoe (steel) (steel) MTD-790-00091-0606
...
40
Grease Fitting Optional MTD-937-3000
...
41
Spacer 1.25 x .75 x 1.00 MTD-731-04870
...
42
Flange Bearing.75 ID x 1.0 OD x .975 MTD-741-0661B
...
43
Auger Cable MTD-946-04230B
...
45
RH Reduced Auger Housing MTD-918-0123A
...
46
LH Reduced Auger Housing MTD-918-0124A
...
47
Oil Seal .75 x 1.0 x .125 MTD-921-0338
...
48
Flange Bearing .75 ID x 1.00 OD x .50 MTD-741-0662
...
49
Thd Forming Scr. 1/4-20 x .75 MTD-710-0642
...
50
24" AUGER SHAFT MTD-711-04285A
...
50
26" AUGER AXLE MTD-711-06144
...
50
28" AUGER AXLE MTD-711-06145
...
50
Auger Axle, 30" MTD-711-04282A
...
51
Hi Pro Key 3/16 x 5/8 MTD-914-0161
...
52
Dowel Pin .25 OD x 1.2 MTD-715-04021
...
53
Worm Shaft .75 OD MTD-917-04126
...
54
WORM GEAR 20T MTD-917-04861
...
55
Thrust Collar MTD-718-04071
...
56
Plug, 1/4 x .437 MTD-721-0325
...
57
Oil Seal .75 x 1 x .131 MTD-721-0327
...
58
Fl-Wash. .76" I.D. x 1.5" O.D. x .030" Thk. MTD-736-0351
...
59
Fl. Washer .510 x 1.120 x .060 MTD-736-3084
...
60
Flange Bearing .75 ID x 1.0 OD x .925 MTD-741-0663
...
61
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
62
Loctite Sealant 5699 Purchase locally MTD-NA
...
63
Grease - Alvania EP Lead Free MTD-737-0168A
...
65
Carriage Bolt 5/16-18 x .75 (w/steel slide shoes) (w/steel slide shoes) MTD-710-0451
...
67
Fl-Wash. .344" I.D. MTD-736-0159
...
xx
24" GEARBOX ASSEMBLY Not Shown MTD-918-04171C
...
xx
26" GEARBOX ASSEMBLY Not Shown MTD-918-04172C
...
xx
28" GEARBOX ASSEMBLY Not Shown MTD-918-04173B
...
xx
30" GEARBOX ASSEMBLY Not Shown MTD-918-04165B

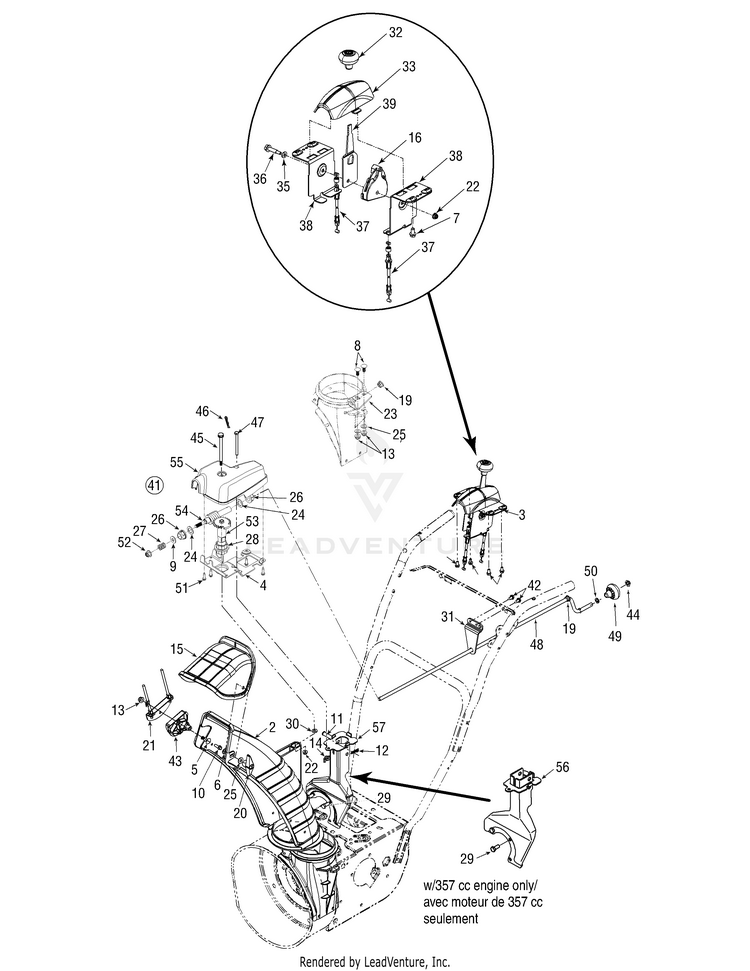

Chute Assembly

...
...
2
Tall Lower Chute MTD-731-06440A
...
3
Chute Control, 2-Way MTD-984-04325A
...
4
CHUTE ROTATION BRACKET MTD-790-00342C-0637
...
5
Carriage Bolt 5/16-18 x 1.50 Gr. 2 MTD-710-0262
...
6
Carriage Screw 5/16-18 x 1.0 MTD-710-04071
...
7
HEX SCREW 1/4-15 x .50 MTD-710-04187A
...
8
Carriage Bolt 5/16-18 x 1.00" Lg MTD-710-0276
...
9
Flat Washer .385 x .87 x .06 MTD-936-0267
...
10
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
11
Clevis Pin 3/8 x 1.87 MTD-711-04469A
...
12
Bow Tie Cotter Pin MTD-714-04040
...
13
Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
14
WING NUT 1/4-20 MTD-712-3087
...
15
Upper Chute w/Export Label, Remote MTD-931-04425B
...
19
plastic Bushing .380 ID MTD-941-0475
...
20
Handle Knob Assembly MTD-720-04072A
...
21
Cable Bracket Chute Tilt MTD-784-5594-0637
...
22
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
23
Chute Crank Brkt. MTD-784-5647-0637
...
24
FLAT WASHER MTD-736-0290
...
25
Fl-Wash. .344" I.D. MTD-736-0159
...
26
Hex Flg. Bearing MTD-941-0225
...
27
Compression Spring .39 x .60 x .88 MTD-732-0193
...
28
FLANGE BEARING MTD-741-04354
...
29
Hex Hd. Cap Screw 5/16-24 x .75 MTD-710-0627
...
30
Flat Washer .25 ID x .63 OD x .0515 HT. MTD-736-04446
...
31
Support Rod Bracket MTD-790-00341-0637
...
32
Knob MTD-720-04039
...
33
2-WAY CONTROL COVER 2 Way MTD-731-05307
...
35
Spring Washer .390 x .625 x .012 MTD-736-0413
...
36
Flg Shlder Screw .310 x .995: 1/4-20 MTD-738-04185
...
37
Cable - w/tall chute MTD-946-04527
...
38
2 WAY CONTROL BRACKET 2 Way MTD-790-00200A-0637
...
39
2-WAY CONTROL LEVER 2 Way MTD-790-00210A-0637
...
41
WORM GEARBOX ASSEMBLY MTD-918-04933B
...
42
Hex Wash Hd TT Scr. 1/4-20 x .625 MTD-710-1652
...
43
Cable Guide MTD-731-06451
...
44
Push Cap 3/8" Rod MTD-726-0100
...
45
Flg. Shoulder Screw .312 x 3.5: 1/4-20 MTD-738-04367
...
46
Hairpin Cotter MTD-714-0101
...
47
Hex. Hd. Cap Scr. 1/4-20 x 3.0 Gr. 5 MTD-710-04370
...
48
CHUTE CRANK (POWDER BLACK) MTD-747-05386A-0637
...
49
Knob MTD-720-04102
...
50
Flat Washer .375 ID x .738 OD MTD-736-0185
...
51
Hi-Lo Screw #12-16 x .75 MTD-710-04373A
...
52
Hex L-Flanged Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
53
23 TEETH GEAR ASSEMBLY MTD-684-04336A
...
54
WORM SHAFT MTD-917-04636
...
55
CHUTE GEAR COVER MTD-731-06618
...
56
CHUTE SUPPORT BRACKET (POWDER BLACK) (w/357 cc engine only) MTD-684-04310B-0637
...
57
Chute Support Bracket Ass'y MTD-684-04311A-0637

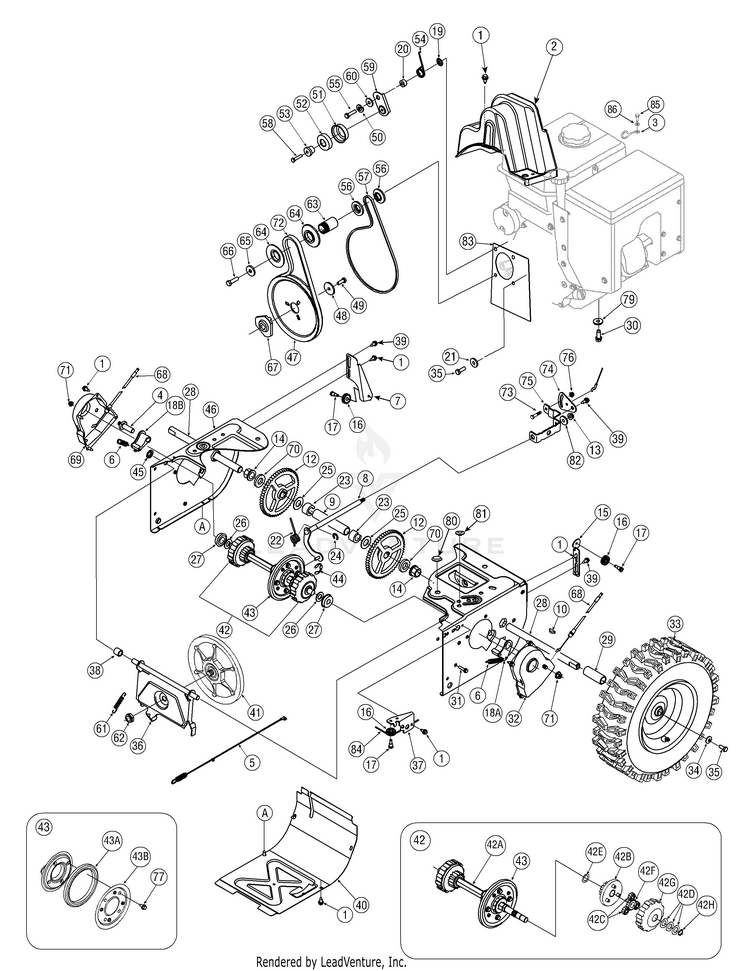

Drive Assembly

...
...
1
Hex Wash Hd TT Scr. 1/4-20 x .625 MTD-710-1652
...
2
BELT COVER SERVICE KIT (631-05323) 31AH Models (w/277 cc - 357 cc engines) MTD-753-09065
...
2
BELT COVER 31AM Models (w/208 cc engine) MTD-731-05353B
...
3
Cable Control Wire MTD-732-04677
...
4
Drive Shaft Actuator MTD-711-1268B
...
5
Drive Clutch Cable 44.83" Lg. MTD-946-04229B
...
6
Extension Spring .5 OD x 1.71 Lg. MTD-732-04345
...
7
CABLE GUIDE BRACKET (DRIVE) MTD-790-03997
...
8
Shift Rod Ass’y MTD-684-04156A
...
9
Axle Support Tube MTD-750-04474
...
10
Key MTD-714-0126
...
12
Gear, 56T MTD-917-04210
...
13
Flange Lock-Nut 5/16-18 Gr. F Nylon MTD-712-04063
...
14
Hex. Flange Bearing.751" ID MTD-941-0245
...
15
AUGER CABLE GUIDE BRACKET MTD-790-00206B
...
16
Cable Guide Roller MTD-756-0625
...
17
Hex Shld.Scr.1/4-28 x .375 MTD-738-0924A
...
18A
DOGG ASSEMBLY (LH) MTD-618-04288
...
18B
Dogg Assembly - RH MTD-618-04287
...
19
Nut, Push-on, .25 Dia. MTD-726-04012
...
20
Spacer .340 x .750 x .360" Lg. MTD-750-04477A
...
21
Shoulder Spacer MTD-748-0234
...
22
Torsion Spring .750 ID x .968" Lg. MTD-732-04311A
...
23
Spacer MTD-731-05297
...
24
Retaining Ring MTD-916-0104
...
25
Flat Washer .760 ID x 1.49 OD MTD-736-0188
...
26
Flat Washer .580 x 1.125 x .080 MTD-736-0626
...
27
Ball Bearing MTD-741-04076
...
28
Axle MTD-938-04180
...
29
Wheel Spacer 1.25 x .75 x 3.00 MTD-731-04873
...
30
Hex Wash HD Tap Scr 3/8-16 x .88 MTD-710-0654A
...
31
Hex Bolt 1/4-20 x 1.00 MTD-710-0788
...
32
Shaft Retainer - LH MTD-790-00185-0691
...
33
WHEEL ASSEMBLY (16 x 4.8 x 8) (LH)(OYSTER-CARLISLE) 26" Models MTD-634-04145-0911
...
33
WHEEL ASSEMBLY (16 x 4.8 x 8) (RH)(OYSTER-CARLISLE) 26" Models MTD-634-04146-0911
...
33
TIRE-16X4.8X8XTRAC 26" Models Not shown MTD-734-2038-0901
...
33
RIM ASSEMBLY (8.0X3.75) W/VALVE (OYSTER GRAY) 26" Models Not shown MTD-634-04173-0662
...
33
WHEEL ASSEMBLY (16 x 6.5 x 8) (LH) (OYSTER GRAY) 28" & 30 Models MTD-634Z07695-0662
...
33
WHEEL ASSEMBLY (16 x 6.5 x 8) (RH) (OYSTER GRAY) 28" & 30 Models MTD-634Z07696-0662
...
33
TIRE-X-TRAC 28" & 30 Models Not shown MTD-734-2031
...
33
RIM ASSEMBLY (8.0X5.38) W/VALVE (OYSTER GRAY) 28" & 30 Models Not shown MTD-634-04174-0662
...
33
WHEEL ASSEMBLY (15x5x6) (LH) (OYSTER GRAY) 24" Models MTD-634Z07717-0662
...
33
WHEEL ASSEMBLY (15x5x6) (RH) (OYSTER GRAY) 24" Models MTD-634Z07718-0662
...
33
TIRE CARLISLE 24" Models Not shown MTD-734-04012-0901
...
33
RIM ASSEMBLY (6 x 3.25) W/VALVE (OYSTER GRAY) 24" Models Not shown MTD-634-04172A-0662
...
33
Air Valve Not shown MTD-934-0255
...
34
Cupped Washer .345 ID x .88 OD x .060 MTD-736-0242
...
35
Hex L-Bolt 5/16-24 x .875 Gr. 8 MTD-710-1245B
...
36
Friction Wheel Support Brkt Ass’y MTD-684-04154B-0637
...
37
Auger Cable Guide Bracket MTD-790-00096-0637
...
38
Spacer .513 ID x 1.0 MTD-748-0190
...
39
Shoulder Screw .373 x .105:TT 1/4-20 MTD-738-04184A
...
40
Frame Cover MTD-790-00316-0606
...
41
FRICTION WHEEL DISC ASSEMBLY MTD-656-04055A
...
42
Drive Shaft Assembly (w/o Friction Wheel Ass'y) (w/o Friction Wheel Ass'y) MTD-918-04322A
...
42A
Hex Drive Shaft (500) MTD-711-04416A
...
42B
Planetary Car rier Ass'y MTD-918-04284
...
42C
Gear 12T MTD-717-1209A
...
42D
Flat Washer .58 x 1.12 x .02 MTD-936-0502
...
42E
Flat Washer 5/8 ID x 1.0 OD MTD-936-0336
...
42F
Gear 18T MTD-717-1210A
...
42G
Ring Planetary Gear Ass'y (500) MTD-918-04285
...
42H
Retaining Ring 1.56 diam. MTD-716-0194
...
43
Friction Wheel Assembly MTD-684-04159C
...
43A
FRICTION WHEEL 5.50OD MTD-935-04054A
...
43B
Friction Plate MTD-790-00174C
...
44
Retainer Ring MTD-716-0136
...
45
Cap Speed Nut 1/4 Rod MTD-726-0221
...
46
DRIVE FRAME HOUSING (MAJESTIC ORANGE) MTD-790-00183E-0606
...
47
Auger Pulley MTD-756-04109
...
48
Flat Washer .34 x 1.50 x .150 MTD-736-0505
...
49
Hex Bolt 5/16-24 x 0.875 MTD-710-1245B
...
50
L-Wash 5/16 ID MTD-936-0119
...
51
Bearing Sleeve MTD-790-00230
...
52
BALL BEARING MTD-741P0919B
...
53
Spacer MTD-750-04571
...
54
TORSION SPRING MTD-732-04308C
...
55
Hex HD. Cap Scr. 5/16-24 x 1.25 Lg. MTD-710-0672
...
56
Pulley Half MTD-756-04252
...
57
V-BELT 3/8 x 34.4 31AM Models (w/208 cc engine) MTD-954-0367
...
57
V-BELT 3/8 x 35.68" 31AH Models (w/277cc - 357cc engines) MTD-954-04201A
...
58
Hex Bolt 1/4-20 x 1.25 MTD-710-0809
...
59
Drive Idler Bracket MTD-790-00208D
...
60
Shoulder Spacer MTD-748-04112B
...
61
Extension Spring 3/8 OD x 2.50 MTD-932-0264
...
62
HEX NUT MTD-712-0417A
...
63
Spacer .875 ID x 1.185 OD MTD-750-04303
...
64
HALF PULLEY A2.76 x 1.140 SPLINE MTD-756-06563
...
65
Flat Washer .40 ID x 1.25 OD x .160 MTD-736-0247
...
66
Hex Screw 3/8-24 x 1.25 MTD-710-0191
...
67
Pulley Adapter MTD-748-04053A
...
68
STEERING CABLE MTD-946-0956C
...
69
Shaft Retainer - RH MTD-790-00186-0691
...
70
Axle Spacer MTD-750-0767
...
71
Flange Lock-Nut 3/8-16 Gr. F Nylon MTD-712-04065
...
72
Auger Drive Belt 31AM Models (w/208 cc engine) MTD-954-04050A
...
72
Belt, .500 x 37.00 31AH Models (w/277cc - 357cc engines) MTD-954-04195A
...
73
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
74
Pivot Bracket, Speed Selector MTD-790-00217A
...
75
Shift Bracket, Speed Selector MTD-790-00218A
...
76
Flange Lock-Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
77
Hex Wash. Hd. TT Scr. 1/4-14 x .625 MTD-710-0896
...
79
Flat Washer .38 x 1.38 x .125 (Rear left hole) (Rear left hole) MTD-736-0320
...
80
Plug 1/2" MTD-735-04100
...
81
Plug 3/8" MTD-735-04099
...
82
Flat Washer .469 x .875 x .105 MTD-936-3015
...
83
COVER PLATE (POWDER BLACK) (optional) MTD-790-00289B-0637
...
84
Auger Cable MTD-946-04230B
...
85
Hex Bolt M8-1.25: 20 MTD-710-1681
...
86
Fl-Wash. .344" I.D. x .625" O.D. MTD-736-0264

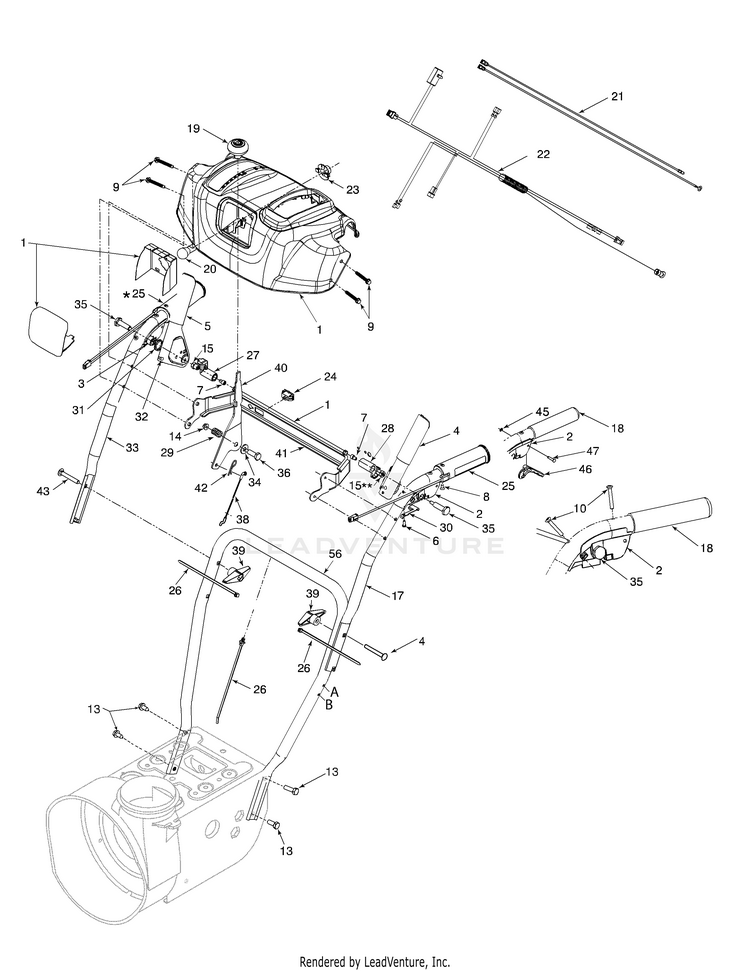

Handle Panel Assembly

...
...
1
Handle Panel Ass’y-Black w/Chute Control MTD-931-04183
...
2
LH Clutch Lock Handle Ass’y MTD-631-04133A
...
3
RH Clutch Lock Handle Ass’y MTD-631-04134B
...
4
HANDLE ASSEMBLY (LH) MTD-684-04105D
...
5
HANDLE ASSEMBLY (RH) MTD-684-04106D
...
6
Screw #8-16 x .50 MTD-710-04326
...
7
Hex Cap Socket Screw 1/4-20 x .5 MTD-710-3069
...
8
Oval HD C-Sunk Scr #10 x 5/8 MTD-710-0837
...
9
Hex TT-Tap Scr 1/4-20 x 1.625 MTD-710-04586
...
10
Oval C-Sunk Hd Screw 10-24 x 1.375 MTD-710-1233
...
11
Pivot Rod MTD-684-04250
...
13
SCREW 5/16-18 x .750 MTD-710-04484
...
14
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
15
Hex Shoulder Nut 1/4-20 MTD-712-04081A
...
15
Hex L-Flg Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
17
Upper Handle LH MTD-749-04191A-0637
...
18
Grip MTD-720-0274
...
19
Shift Knob MTD-720-04039
...
20
Lamp #1295 13AH Models MTD-925-04213
...
20
LAMP-12 VOLT 13AM Models MTD-925-1629
...
21
HARNESS MTD-725-04314
...
22
Heated Grip Wire Harness MTD-725-04216B
...
23
HEADLIGHT SOCKET (1/4 TURN) MTD-925-1649A
...
24
Switch MTD-725-04393
...
25
Heated Grip MTD-725-1757
...
26
Cable Tie (w/plug) (w/plug) MTD-926-0154
...
27
Lock Plate MTD-731-04894D
...
28
CLUTCH LOCK CAM MTD-731-04896C
...
29
Compression Spring .38 ID x .88 Lg MTD-732-0193
...
30
Spring: Clutch Lock MTD-732-04219C
...
31
TORSION SPRING MTD-732-04238B
...
32
Bumper, Rubber MTD-735-0199A
...
33
Upper Handle RH MTD-749-04190A-0637
...
34
Flat Washer .38 ID x .87 OD x .09 MTD-936-0267
...
35
Shoulder Screw .437 x 1.345: 1/4-20 MTD-738-04348
...
36
Shoulder Screw .374 Dia. x 1.05 Lg. MTD-738-04125
...
38
Selector Speed Cable MTD-946-04396A
...
39
Handle Knob Assembly MTD-720-04072A
...
40
SHIFT LEVER MTD-790-00311C-0637
...
41
HANDLE SUPPORT BRACKET MTD-790-00248E-0637
...
42
Inter. Cotter Pin 3/8" Dia. MTD-714-0145
...
43
Carriage Bolt 5/16-18 x 2.25 MTD-710-0572
...
44
Lower Handle MTD-749-04138C-0637
...
45
E Ring MTD-716-04036
...
46
Steering Control MTD-731-04913
...
47
Pin 3/16 MTD-738-04126

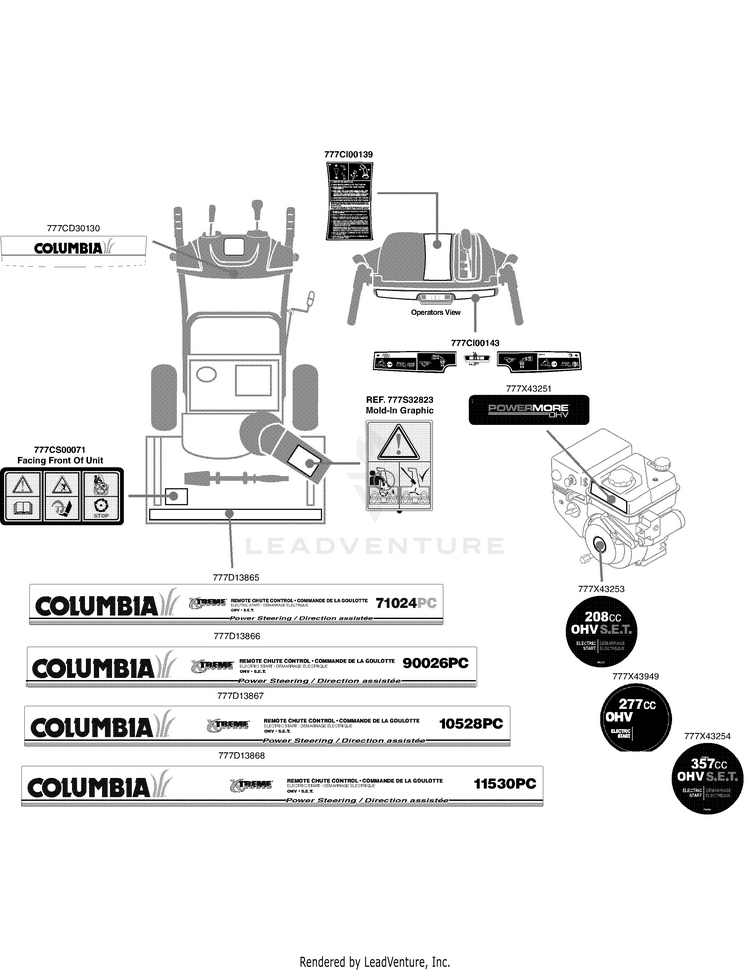

Label Map

...
...
777CD30130
LABEL-SNOW HANDLE PANEL MTD-777CD30130
...
777CS00071
LABEL-DANGER AUGER MTD-777CS00071
...
777D13865
LABEL-SNOW AUGER 24" COLUMBIA MTD-777D13865
...
777D13866
LABEL-SNOW AUGER 26" COLUMBIA MTD-777D13866
...
777D13867
LABEL-SNOW AUGER 28" COLUMBIA MTD-777D13867
...
777D13868
LABEL-SNOW AUGER 30" COLUMBIA MTD-777D13868
...
777X43253
LABEL-SNOW SHROUD MTD-777X43253
...
777X43949
LABEL-SNOW ENGINE 277CC MTD-777X43949
...
777X43254
LABEL-SNOW SHROUD 357CC CANADA MTD-777X43254
...
777X43251
LABEL-SNOW SHROUD MTD ENGINE MTD-777X43251
...
777S32823
Mold In Graphic MTD-NA
...
777CI00143
LABEL-SNOW CONTROL PANEL STYLE 0 MTD-777CI00143
...
777CI00139
LABEL-SNOW CONTROL PANEL MTD-777CI00139
...
...
...
...
...
Processing
