Columbia 31AH54K3897 90026PC (2011) Snow Thrower

Model: 31AH54K3897 90026PC (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

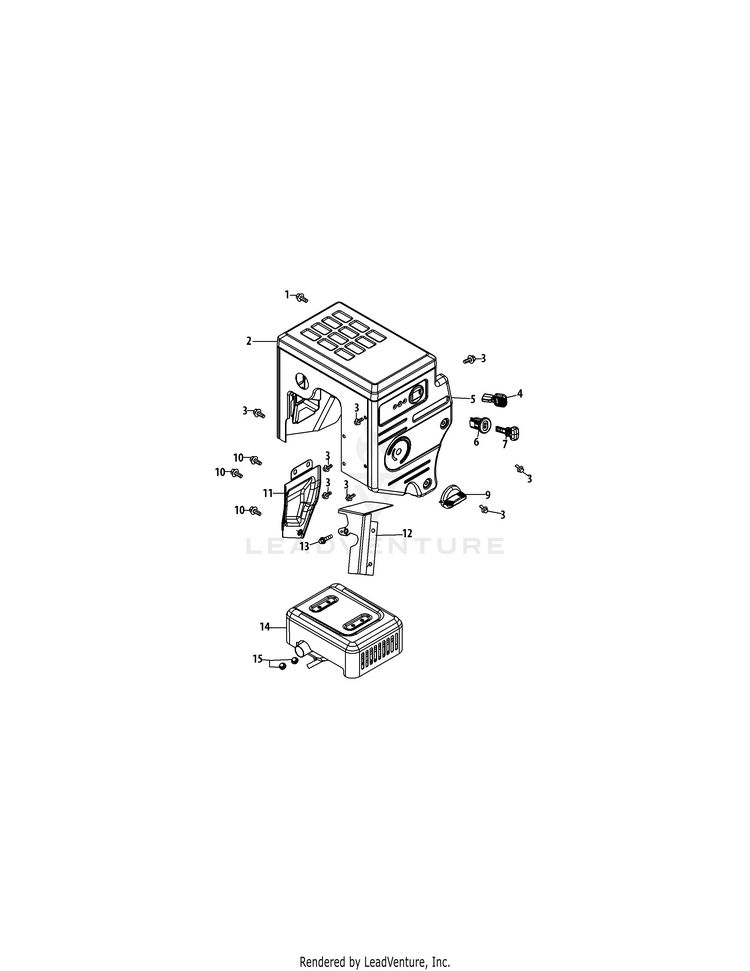

478-SUA Muffler & Controls

...
...
1
Bolt M6×14 MTD-710-04916
...
2
Muffler Shield MTD-951-11194
...
3
Bolt M6×12 MTD-710-04915
...
4
THROTTLE LEVER KNOB MTD-751P10757A
...
5
Control Panel MTD-951-11594
...
6
Key Switch Base MTD-951-10637
...
7
Ignition Key MTD-951-10630
...
9
Choke Knob MTD-951-11302
...
10
Bolt M6×10 MTD-710-04914
...
11
Muffler Baffle MTD-951-11181
...
12
Heat Shield MTD-951-11227
...
13
Bolt M6×16 MTD-710-04968
...
14
Muffler Assembly MTD-951-11195
...
15
Nut M8 MTD-712-04219
...
xx
WEATHER SHIELD MTD-751-19189
...
...
...
...
...
