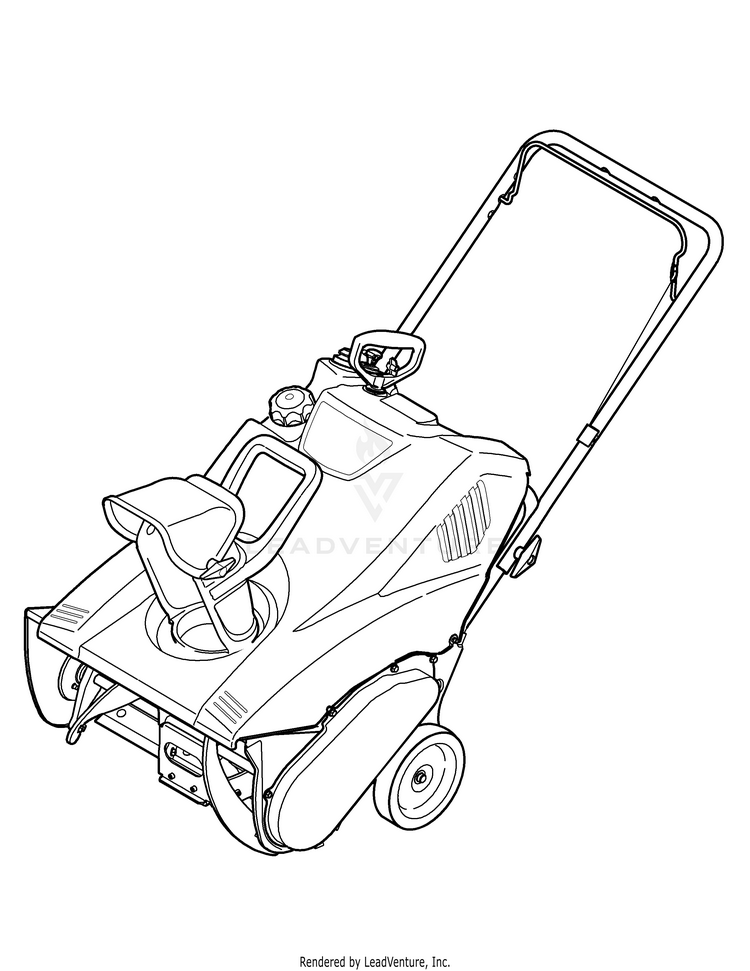

Columbia 31A-2M1A597 (2008) 40021MS (2008) Snow Thrower

Model: 31A-2M1A597 (2008) 40021MS (2008)

Save
 Part Not Listed?Part Not Listed?
product name

.Quick Reference

...
...
xx
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
xx
Auger Cable MTD-946-04237
...
xx
Auger Assembly MTD-984-04253-0637
...
xx
Shave Plate MTD-731-1033
...
xx
Auger Belt MTD-954-0101A
...
xx
Spiral Cresent MTD-735-04032
...
xx
Rubber Paddle MTD-735-04033
...
xx
Wheel - LH MTD-734-04070
...
xx
Wheel - RH MTD-734-04070
...
xx
Rubber Auger Replacement Service Kit Contains Spiral Cresents, Rubber Paddle & Screws MTD-753-04472

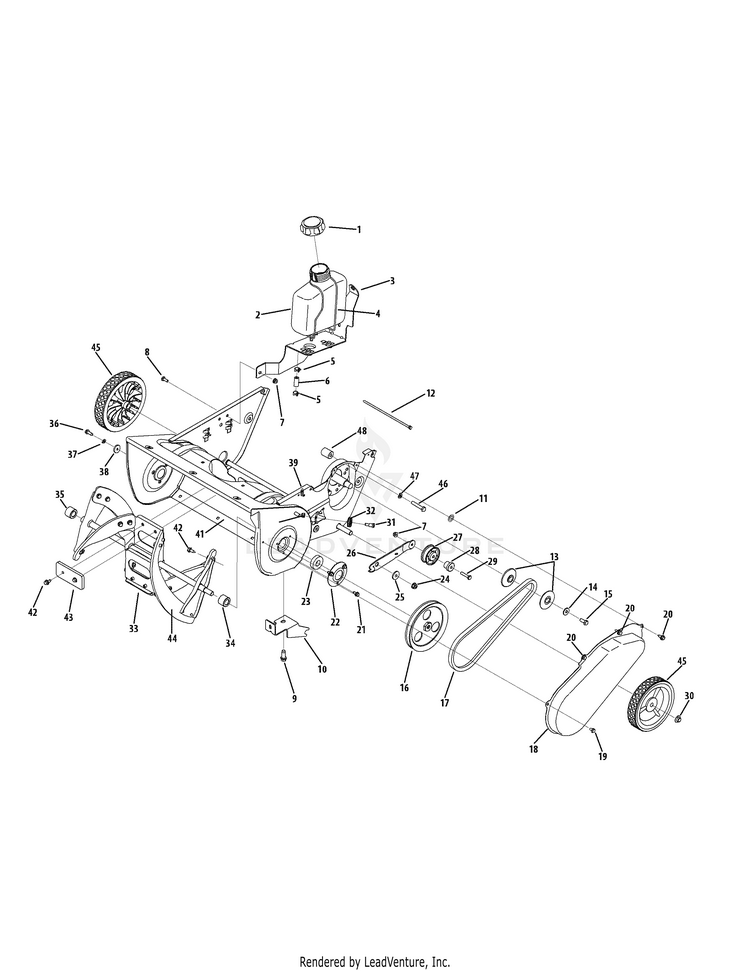

Drive Assembly

...
...
1
FUEL CAP MTD-751-10487C
...
2
FUEL TANK 2 QUART MTD-951-10023
...
3
FUEL TANK BRACKET MTD-790-00134-0637
...
4
GAS TANK SUPPORT WIRE MTD-747-04236
...
5
Hose Clamp MTD-726-0205
...
6
Fuel Line *CHOOSE LENGTH WHEN ORDERING* MTD-751-10349
...
7
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
8
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
9
Hex Wash HD Tap Scr 3/8-16 x .88 MTD-710-0654A
...
10
ENGINE BRACKET MTD-790-00216-0637
...
11
Push Nut MTD-726-0233
...
12
Push Mount Tie MTD-926-0154
...
13
Pulley Half .625 ID x 2.25 OD MTD-956-0416B
...
14
Flat Washer .340 ID x .872 OD x .060 MTD-736-0242
...
15
Hex L-Bolt 5/16-24 x .75 Gr. 5 MTD-710-0627
...
16
Pulley 1/2 x 6,0" OD MTD-756-04232
...
17
V-Belt 1/2 x 35.0" Lg. MTD-954-0101A
...
18
BELT COVER SINGLE STAGE *CHOOSE COLOR WHEN ORDERING* MTD-790-00045C
...
19
Hex Wash HD Tapp Scr 1/4-20 x .375 MTD-710-0653
...
20
Hex B-Tap Scr 1/4-28 x .25" Lg MTD-710-0896
...
21
Hex Tap Scr. 1/4-14 x .5" Lg. MTD-710-0599
...
22
Bearing Cup MTD-790-00249-0637
...
23
Ball Bearing .625 x 37 x 12.63 MTD-741-04188A
...
24
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
25
Shoulder Spacer .25 THK MTD-748-0234
...
26
Idler Bracket MTD-790-00238A-0637
...
27
Idler Pulley Ass'y MTD-684-04168
...
28
Shld. Spacer .260 x .785 x .538 MTD-750-04571
...
29
Hex Screw 1/4-20 x 1.25 Gr. 5 Special MTD-710-0106
...
30
Push Cap x 1/2" Rod MTD-726-0299
...
31
Hex Shld.Scr.1/4-28 x .375 MTD-738-0924A
...
32
Cable Guide Roller MTD-756-0625
...
33
Auger Assembly MTD-984-04253-0637
...
34
Auger Spacer LH MTD-750-04757
...
35
Auger Spacer RH MTD-750-04758
...
36
Thd Forming Scr. 1/4-20 x .75 Lg. MTD-710-0642
...
37
L-Wash 1/4 ID MTD-936-0329
...
38
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
39
Extension Spring .33 OD x 1.12 Lg. MTD-732-0357A
...
40
Hex Ins Jam L-Nut 1/4-28 MTD-712-0896
...
41
Auger Assembly Housing *CHOOSE COLOR WHEN ORDERING* MTD-684-04227
...
42
Hex Wash. Hd. TT Scr. 1/4-14 x .625 MTD-710-0896
...
43
Rubber Paddle MTD-735-04033
...
44
Rubber Spiral-Crescent MTD-735-04032
...
45
Wheel, 7.0 x 1.6 Diamond MTD-734-04070
...
46
Hex Bolt 5/16-24 x 1.75 MTD-710-0409
...
47
L-Wash 5/16 ID MTD-936-0119
...
48
SPACER MTD-750-04297B

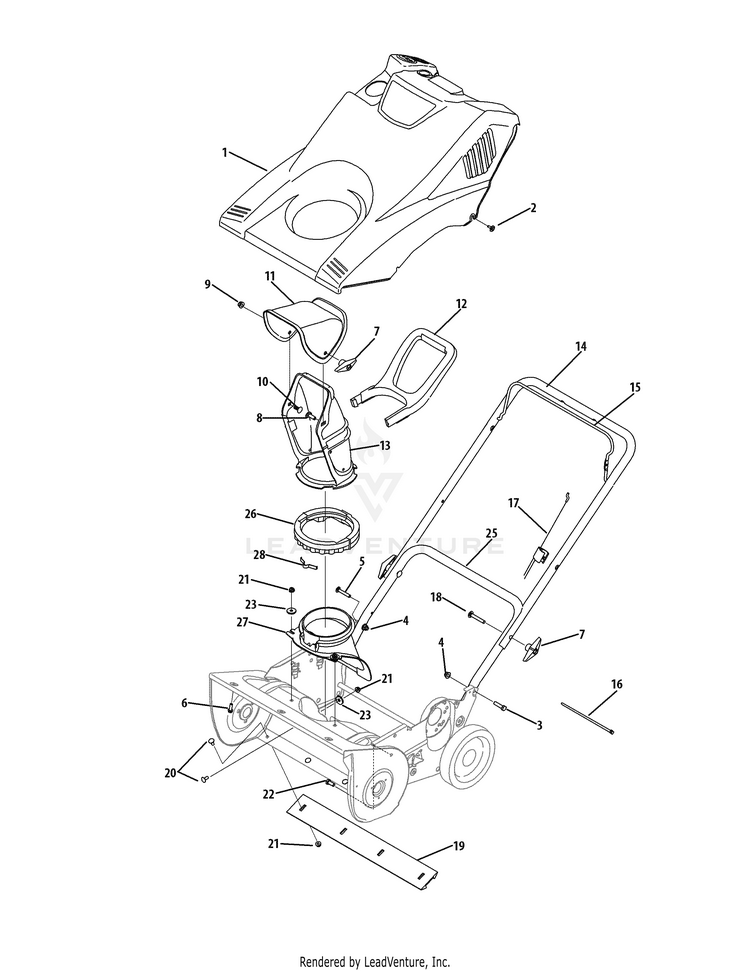

General Assembly

...
...
1
KIT-SERVICE SNOW S MTD-753-06906
...
2
Hex Wash B-Tapp Scr #10-16 x .62" Lg. MTD-710-04669
...
3
Hex Scr. .312-18 x 1.250 MTD-710-1090
...
4
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
5
Hex Scr. 5/16-18 x 1.50 Gr. 5 MTD-710-1882
...
6
Hex Tapp Scr 1/4 x .75" Lg. MTD-710-0895
...
7
Knob, Wing, 5/16-18 MTD-720-0284
...
8
Carriage Screw 5/16-18 x 1.0 MTD-710-04071
...
9
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
10
Carriage Bolt 5/16-18 x .75 MTD-710-0451
...
11
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
12
Chute Handle MTD-731-04388A
...
13
Lower Chute 5" Dia MTD-931-04127
...
14
Upper Handle MTD-749-04459-0637
...
15
Bail Control MTD-747-04165-0637
...
16
Cable Tie MTD-725-0157
...
17
Control Cable MTD-946-04237
...
18
Carriage Bolt 5/16-18 x 2.0 MTD-710-04532
...
19
Shave Plate MTD-731-1033
...
20
Carriage Bolt 1/4-20 x .62 MTD-710-0134
...
21
Hex L-Flanged Nut 1/4-20 Gr. F Nylon MTD-712-04064
...
22
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
23
Fl-Wash. .27" I.D. x .948" MTD-736-0176
...
25
LOWER HANDLE *CHOOSE COLOR WHEN ORDERING* MTD-749-04114B
...
26
Ring-Lower Chute MTD-931-04353
...
27
Chute Adapter 5" Dia MTD-931-04886
...
28
Chute Adjustment Spring MTD-932-04111

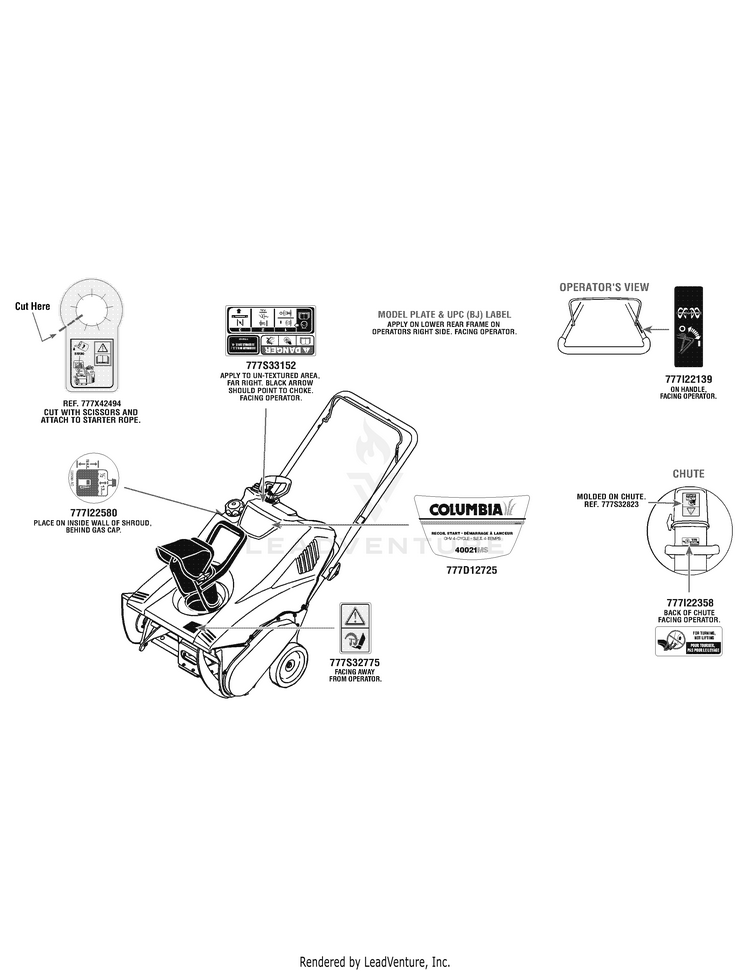

Label Map

...
...
777X42494
LABEL-HNG TAG:SNW:OIL FILL MTD-NA
...
777I22580
LABEL:SNOW:FUEL LE MTD-777I22580
...
777S32775
LABEL-SNOW :HSG:MTD 4CYL CVR MTD-777S32775
...
777D12725
LABEL-SNOW SHROUD MTD-777D12725
...
777S33152
LABEL-SNOW TOP COVER MTD-777S33152
...
777I22139
LABEL-SNOW :HANDLE MTD-777I22139
...
777S32823
LABEL-SNOW :CHUTE:EXP MTD-777S32823
...
777I22358
LABEL:SNOW CHUTE: MTD-777I22358

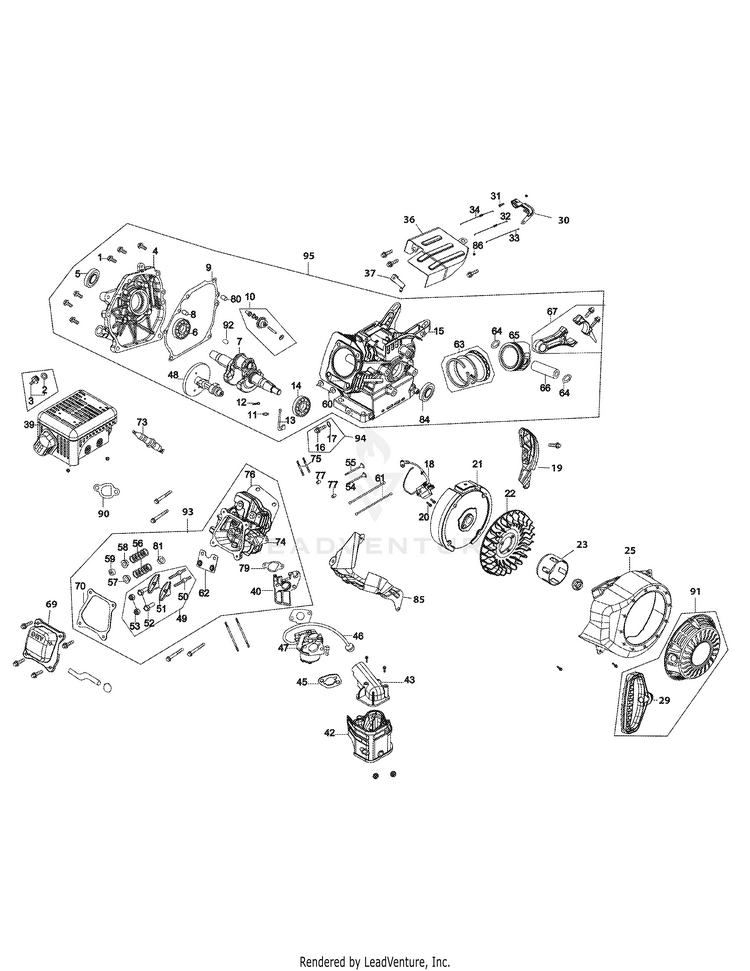

Engine Assembly 161-JW

...
...
1
Bolt Furnish 951-10950 Short Block Assembly MTD-NA
...
1
Bolt Furnish 951-11095 Crankcase Cover Kit MTD-NA
...
2
DIPSTICK ASSEMBLY Incl Ref # 2 & 3 MTD-951-10957
...
2
DIPSTICK ASSEMBLY Furnish 951-10950 Short Block Assembly MTD-951-10957
...
2
DIPSTICK ASSEMBLY Furnish 951-10951 Gasket Kit - Complete MTD-951-10957
...
2
DIPSTICK ASSEMBLY Furnish 951-10952 Gasket Kit - External MTD-951-10957
...
3
Dipstick Assembly Furnish 951-11095 Crankcase Cover Kit MTD-NA
...
4
Crankcase Cover Furnish 951-10950 Short Block Assembly MTD-NA
...
4
Crankcase Cover Furnish 951-11095 Crankcase Cover Kit MTD-NA
...
5
Oil Seal Furnish 951-10950 Short Block Assembly MTD-NA
...
5
Oil Seal Furnish 951-11095 Crankcase Cover Kit MTD-NA
...
6
Bearing Furnish 951-10950 Short Block Assembly MTD-NA
...
6
Bearing Furnish 951-11096 Crankshaft Kit MTD-NA
...
6
Bearing Furnish 951-11095 Crankcase Cover Kit MTD-NA
...
7
Crankshaft Assembly Furnish 951-10950 Short Block Assembly MTD-NA
...
7
Crankshaft Assembly Furnish 951-11096 Crankshaft Kit MTD-NA
...
8
Dowel Pin Furnish 951-10950 Short Block Assembly MTD-NA
...
9
Case Cover Gasket Furnish 951-10950 Short Block Assembly MTD-NA
...
9
Crankcase Cover Gasket Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
9
Case Cover Gasket Furnish 951-11095 Crankcase Cover Kit MTD-NA
...
10
Governor Assembly Furnish 951-10950 Short Block Assembly MTD-NA
...
11
O-Ring Gov. Shaft Furnish 951-10950 Short Block Assembly MTD-NA
...
11
O-Ring, 5.2 x 1.9 Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
12
Pin Lock Furnish 951-10950 Short Block Assembly MTD-NA
...
13
Governor Arm Shaft Furnish 951-10950 Short Block Assembly MTD-NA
...
14
Bearing Furnish 951-10950 Short Block Assembly MTD-NA
...
14
Bearing Furnish 951-11096 Crankshaft Kit MTD-NA
...
14
Bearing Furnish 951-11097 Crankcase Kit MTD-NA
...
15
Crankcase Complete Furnish 951-10950 Short Block Assembly MTD-NA
...
15
Crankcase Complete Furnish 951-11097 Crankcase Kit MTD-NA
...
16
Oil Drain Plug and Washer Assembly Incl Ref # 16 & 17 MTD-951-10370
...
16
Oil Drain Plug Furnish 951-10950 Short Block Assembly MTD-951-10370
...
16
Oil Drain Plug Furnish 951-10370 Oil Drain Plug & Washer Assy MTD-951-10370
...
17
Oil Drain Plug Washer Furnish 951-10950 Short Block Assembly MTD-NA
...
17
Oil Drain Plug Washer Furnish 951-10370 Oil Drain Plug & Washer Assy MTD-NA
...
17
Washer, 10 x 16 x 1.5 Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
17
Washer, 10 x 16 x 1.5 Furnish 951-10952 Gasket Kit - External MTD-NA
...
18
Ignition Coil MTD-951-10958
...
19
Flywheel Baffle MTD-951-11102
...
21
Flywheel MTD-951-10908
...
22
Cooling Fan MTD-951-10910
...
23
Starter Cup MTD-951-10911
...
25
FAN COVER MTD-951-11107
...
29
Recoil Starter Handle MTD-731-05696
...
30
Governor Arm Bracket MTD-951-11106
...
32
Throttle Return Spring MTD-951-10954
...
33
Governor Rod MTD-951-11152
...
34
Governor Return Spring MTD-951-10953
...
36
Cover Shield MTD-951-11103
...
37
Governor Spring Bracket MTD-951-11104
...
39
Muffler Assembly MTD-951-10901
...
40
Carburetor Insulator Plate Furnish 951-10950 Short Block Assembly MTD-NA
...
40
Carburetor Insulator Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
41
Nut M6 MTD-712-05015
...
42
Intake Heater Box Base MTD-951-10962
...
43
Intake Heater Box MTD-951-10961
...
45
Heat Pipe Intake Gasket Furnish 951-10950 Short Block Assembly MTD-NA
...
45
Carburetor Gasket Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
45
Carburetor Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
46
PRIMER MTD-951-10639B
...
47
CARBURETOR ASSEMBLY MTD-951-10956A
...
48
Camshaft Assembly Furnish 951-10950 Short Block Assembly MTD-NA
...
49
Rocker Arm & Bolt Assembly (Incl. 50-53) Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
50
Pivot Bolt Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
50
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
51
Rocker Arm Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
51
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
52
Valve Adjusting Nut Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
52
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
53
Pivot Locking Nut Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
53
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
54
Valve Kit Incl Ref # 54 & 55 MTD-951-10912
...
56
Valve Spring Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
57
Intake Valve Spring Seat Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
58
Exhaust Valve Spring Seat Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
59
Exhaust Valve Adjuster Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
60
Valve Lifter Furnish 951-10950 Short Block Assembly MTD-NA
...
61
Push Rod Kit MTD-951-12614
...
61
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
62
Push Rod Guide Plate Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
62
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
63
Piston Ring Set - OIL Furnish 951-10950 Short Block Assembly MTD-NA
...
64
Piston Pin Clip Furnish 951-10950 Short Block Assembly MTD-NA
...
65
Piston Furnish 951-10950 Short Block Assembly MTD-NA
...
66
Piston Pin Furnish 951-10950 Short Block Assembly MTD-NA
...
67
Connecting Rod Complete Furnish 951-10950 Short Block Assembly MTD-NA
...
69
Valve Cover MTD-951-11054B
...
69
Valve Cover MTD-951-11054B
...
70
Valve Cover Gasket Furnish 951-10950 Short Block Assembly MTD-NA
...
70
Valve Cover Gasket Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
70
Valve Cover Gasket Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
70
Valve Cover Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
70
Valve Cover Gasket MTD-NA
...
70
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
73
SPARK PLUG (F6RTC/RN11YC/BPR6ES) MTD-951-10292A
...
74
Cylinder Head - Complete Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
75
Muffler Stud Assembly MTD-951-10657
...
76
Cylinder Head Gasket (graphite) Furnish 951-10950 Short Block Assembly MTD-NA
...
76
Cylinder Head Gasket Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
76
Cylinder Head Gasket Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
77
Dowel Pin 10×16 MTD-715-04108
...
79
Carburetor Insulator Plate Gasket Furnish 951-10950 Short Block Assembly MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10949 Cylinder Head Assembly MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
79
Carburetor Insulator Gasket Furnish 951-10952 Gasket Kit - External MTD-NA
...
80
Dowel Pin Furnish 951-10950 Short Block Assembly MTD-NA
...
81
Packing Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
84
Oil Seal Furnish 951-10950 Short Block Assembly MTD-NA
...
84
Oil Seal, 22 x 35 x 7 Furnish 951-10951 Gasket Kit - Complete MTD-NA
...
84
Oil Seal Furnish 951-11097 Crankcase Kit MTD-NA
...
85
SIDE PLATE MTD-951-11105
...
90
Muffler Gasket MTD-951-10959
...
90
Muffler Gasket Furnish 951-10950 Short Block Assembly MTD-951-10959
...
90
Muffler Gasket Furnish 951-10951 Gasket Kit - Complete MTD-951-10959
...
90
Muffler Gasket Furnish 951-10952 Gasket Kit - External MTD-951-10959
...
91
Recoil Starter Assembly MTD-951-10955
...
92
WOODRUFF KEY MTD-751P10307A
...
92
WOODRUFF KEY Furnish 951-11096 Crankshaft Kit MTD-751P10307A
...
93
CYLINDER HEAD ASSEMBLY Includes Ref # 90, 70, 49, 50, 51, 52, 53, 56, 57, 58, 59, 62, 40, 79, 74, 76 MTD-951-10949A
...
94
Oil Drain Plug and Washer Assembly Includes Ref # 16 & 17 MTD-951-10370
...
95
Short Block Assembly Includes Ref # 15, 4, 65, 63, 66, 64, 67, 60, 48, 79, 7, 40, 90, 13, 12, 10, 9, 76, 45, 70, 16, 17, 8, 80, 6, 14, 1, 5, 84, 2, 11 MTD-951-10950A
...
xx
Ignition Key Not Shown MTD-951-10630
...
xx
CRANKSHAFT KIT Not Shown - Includes Ref # 14, 15, 84 MTD-951-11097
...
xx
Carburetor Kit - Major Not shown MTD-951-12623
...
xx
Gasket Kit - Complete Not Shown - Includes Ref # 2, 9, 11, 84, 17, 76, 90, 70, 79, 81, 45 MTD-951-10951
...
xx
Gasket Kit - External Not Shown - Includes Ref # 2, 17, 90, 70, 79, 45 MTD-951-10952A
...
xx
Valve Cover Kit Not Shown Incl Ref # 69 & 70 MTD-951-12626
...
xx
Crankcase Cover Kit Not Shown Includes Ref # 1, 2, 3, 4, 5, 6, 9 MTD-951-11095
...
xx
CRANKSHAFT KIT Not Shown Includes Ref # 6, 7, 14, & 92 MTD-951-11096
...
xx
Oil Alert Side Plate Not Shown MTD-951-11102
...
xx
PUSH ROD/ROCKER ARM KIT Not Shown includes Push Rods, Rocker Arms, Rocker Studs, Valve Adjusting Nuts, Locking Pivot Nuts, Valve Cover Gasket, Push Rod Guide MTD-953-06132
...
xx
Engine Not Shown MTD-952Z161-JWA-12
...
...
...
...
...
Processing
