Columbia 25B-554M897 Edger (2016) Trimmer

Model: 25B-554M897 Edger (2016)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

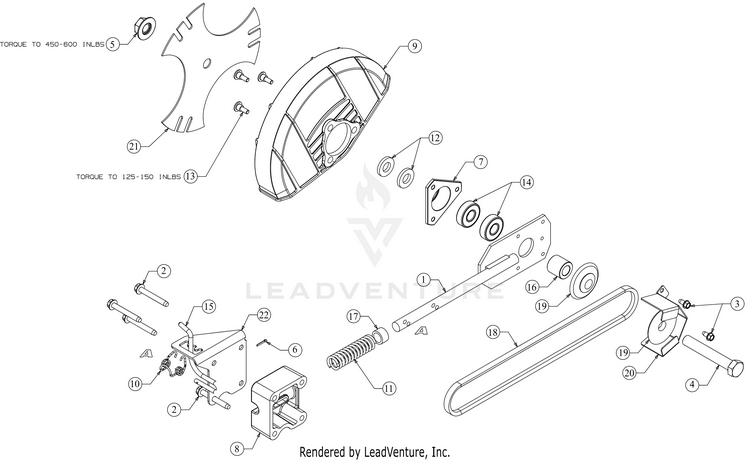

General Assembly

...
...
1
BLADE PLATE ASSEMBLY MTD-687-02126
...
2
SCREW MTD-710-04389
...
3
SCREW 1/4-20 X.500 MTD-710-0599
...
4
SCREW 5/8-18 X 4 GR5 MTD-710-1143A
...
5
HEX NUT MTD-712-0417A
...
6
COTTER PIN-3/32X62 MTD-714-3010
...
7
BEARING CUP MTD-718-04012
...
8
BEARING BLOCK MTD-931-04207
...
9
EDGER BLADE GUARD (W/LABEL) MTD-731P05064
...
10
TORSION SPRING MTD-732-0188A
...
11
COMPRESSION SPRING MTD-932-04169
...
12
Flat Washer, .635 x 1.24x x.181 MTD-736-04088
...
13
SHOULDER SCREW .375X.280:1/4-14 MTD-738-0706D
...
14
BALL BEARING MTD-941-0524A
...
15
ADJUSTMENT ROD MTD-747-04110A
...
16
SPACER MTD-950-04105
...
17
SPACER MTD-750-0547
...
18
BELT 3L X 35.8 MTD-954-04032B
...
19
SHEAVE MTD-956-0449
...
20
BELT GUARD- MTD-781-0427-0637
...
21
BLADE TRI-CUT (POWDER BLACK) MTD-781-0748-0637
...
22
INDEX BRACKET MTD-787-01081A-0606
...
...
...
...
...
