Columbia 25A-262J897 CST 100 (2019) Trimmer

Model: 25A-262J897 CST 100 (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

Popular Parts

Popular Parts

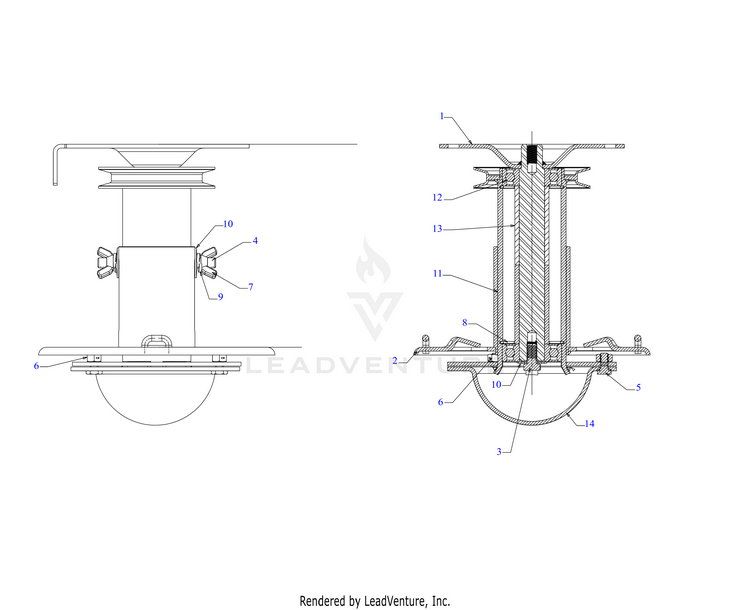

Spindle Assembly

...
...
1
NOT SERVICEABLE MTD-NA
...
2
NOT SERVICEABLE MTD-NA
...
3
HEX SCREW 5/16-24 x .62 MTD-710-0170
...
4
NOT SERVICEABLE MTD-NA
...
5
SCREW 1/4-20X.5 GR5 MTD-710-3013
...
6
Hex L-Nut 1/4-20 Thd. MTD-712-0291
...
7
WING NUT 5/16-24 MTD-712-0698
...
8
RETAINING RING MTD-716-04102
...
9
LOCK WASHER 5/16 MTD-936-0119
...
10
Bell-Wash. .325" I.D. MTD-736-0425
...
11
NOT SERVICEABLE MTD-NA
...
12
BALL BEARING MTD-741P0919B
...
13
NOT SERVICEABLE MTD-NA
...
14
SKID ASSEMBLY MTD-982-0143A
...
xx
SPINDLE ASSEMBLY (Complete Assembly) MTD-918-07086
...
...
...
...
...
