Columbia 25A-262J897 CST 100 (2019) Trimmer

Model: 25A-262J897 CST 100 (2019)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

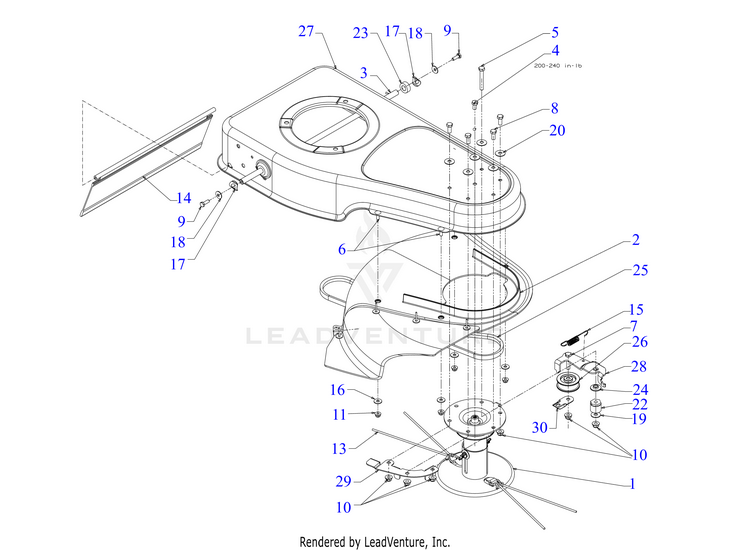

General Assembly

...
...
1
SPINDLE ASSEMBLY MTD-918-07086
...
1
BALL BEARING (Not Shown) MTD-741P0919B
...
1
SKID ASSEMBLY (Not Shown) MTD-982-0143A
...
1
SCREW 5/16-24 GR5 (Not Shown) MTD-710-1822
...
1
SCREW 1/4-20X.5 GR5 (Not Shown) MTD-710-3013
...
1
Hex L-Nut 1/4-20 Thd. (Not Shown) MTD-712-0291
...
1
RETAINING RING (Not Shown) MTD-716-04102
...
1
Bell-Wash. .325" I.D. (Not Shown) MTD-736-0425
...
1
LOCK WASHER 5/16 (Not Shown) MTD-936-0119
...
1
HEX SCREW 5/16-24 x .62 (Not Shown) MTD-710-0170
...
2
22" DEFELECTOR ASSEMBLY MTD-631-0096
...
3
AXLE ASSEMBLY MTD-681P0159A
...
4
HEX SCREW 5/16-24 x .62 MTD-710-0170
...
5
HEX SCREW 5/16-18 x 2.25 GR5 MTD-710-0395
...
6
SCREW 1/4-20 x .75 GR5 MTD-710-0703
...
7
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
8
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
9
SCREW 1/4-20X.75 GR5 MTD-710-3015
...
10
FLANGE LOCK NUT 5/16-18 MTD-712-04063
...
11
FLANGE LOCK NUT MTD-712-04064
...
13
TRIMMER LINE: 10 P MTD-490-040-M035
...
14
TRIMMER TRAILSHIELD MTD-731-12125
...
15
EXTENSION SPRING .500 OD x 3.375 MTD-732-1022
...
16
FLAT WASHER .28 ID x .74 OD x .063 MTD-736-0173
...
17
SPRING WASHER .50 x 1.0 x .022 MTD-736-0182
...
18
SPRING WASHER BELL MTD-736-0270
...
19
FLAT WASHER MTD-736-0371
...
20
Bell-Wash. .325" I.D. MTD-736-0425
...
22
SPACER MTD-948-0278
...
23
SPACER .51 MTD-750-1240
...
24
IDLER SPACER MTD-750-1275
...
25
V-BELT 4L x 44.6" MTD-954-05077
...
26
IDLER PULLEY MTD-756-05108
...
26
BALL BEARING (Not Shown) MTD-941-0524A
...
27
TRIMMER BASE MTD-781-05168
...
28
IDLER BRACKET MTD-981-1008A
...
29
BELT KEEPER BRACKET (POWDER BLACK) MTD-781-1020-0637
...
30
IDLER BRACKET KEEPER (POWDER BLACK) MTD-781-1028-0637
...
...
...
...
...
