Columbia 25A-262J897 (2015) Trimmer

Model: 25A-262J897 (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

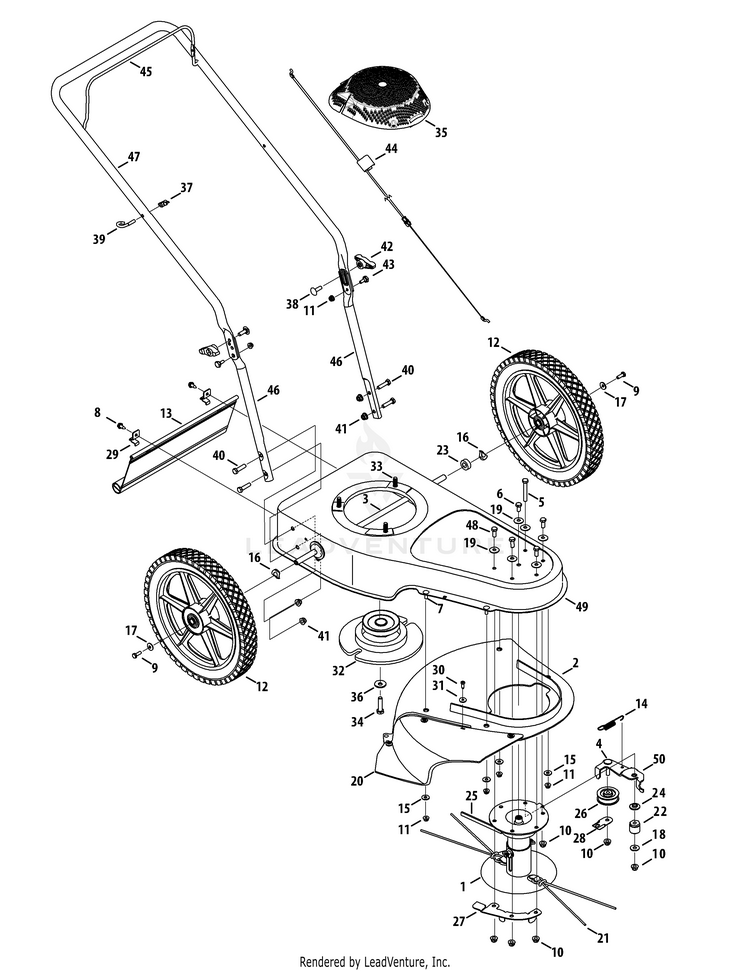

General Assembly Trimmer

...
...
1
Spindle Assembly MTD-918-07086
...
2
Deflector Assembly, Trimmer (incl. Deflector Flap and Hardware) MTD-631-0096
...
3
AXLE ASSEMBLY MTD-681P0159A
...
4
Hex Cap Screw, 5/16-18 x 1.50 MTD-710-0805A
...
5
Hex Cap Screw, 5/16-18 x 2.25 MTD-710-0395
...
6
Hex Screw, 5/16-24, .625, Gr5, Std MTD-710-0237
...
7
Screw, Carriage, 1/4-20, .75, Gr5 MTD-710-0703
...
8
Screw, Self-tapping, 1/4-20 x .625 MTD-710-1652
...
9
Hex Screw, 1/4-20, .75, Gr5, Std MTD-710-3015
...
10
Nut, Flange Lock, 5/16-18, GrF MTD-712-04063
...
11
Nut, Flange Lock, 1/4-20, GrF MTD-712-04064
...
12
Wheel, 14 x 1.75, Gray MTD-734-04030
...
13
Trailshield, 5.85 x 14.50 MTD-731-2329
...
14
Spring, Extension, .50 OD x 3.375 MTD-732-1022
...
15
Washer, Flat, .280 x .740 x .063 MTD-736-0173
...
16
Washer, Spring, .500 x 1.00 x .022 MTD-736-0182
...
17
SPRING WASHER BELL MTD-736-0270
...
18
Washer, Flat, .343 x .880 x .062 MTD-736-0371
...
19
Bell-Wash. .325" I.D. MTD-736-0425
...
20
Flap, Deflector, String Trimmer MTD-731-2315
...
21
Line, Trimmer, .155, 10-pack MTD-490-040-M035
...
22
P/M Spacer MTD-948-0278
...
23
Spacer, .51 ID x 1.00 OD x .38 MTD-750-1240
...
24
Spacer, Idler, Trimmer MTD-750-1275
...
25
V-Belt MTD-954-05077
...
26
Pulley, Idler, Trimmer MTD-756-05108
...
27
Keeper Bracket, Front MTD-781-1020-0637
...
28
Keeper Bracket, Idler MTD-781-1028-0637
...
29
Hinge Clip, Trailshield MTD-782-9065
...
30
Screw, HL, #12-16, .625, Panphi MTD-710-1823
...
31
Fl-Wash. .194" I.D. x .62" O.D. MTD-736-0400
...
32
Pulley/Flywheel MTD-656-05003
...
33
Sems Screw, 3/8-16, 1.0, MTD-710-0654A
...
34
Hex Screw, 3/8-24, 1.25, Gr8 MTD-710-06074
...
35
Cover, Shroud MTD-731-09688
...
36
Bell-Wash. .396" I.D. x 1.14" O.D. MTD-736-0452
...
37
Knob, Handle MTD-720-0279
...
38
Screw, Carriage, 5/16-18, 1.00, Gr5 MTD-710-04998
...
39
Eye Bolt, 1/4-20 MTD-710-1205
...
40
Hex Screw, 3/8-16, 1.25, Gr5, Std MTD-710-3005
...
41
Nut,, Flange Lock, 3/8-16, GRF MTD-712-04065
...
42
Knob, Wing, 5/16-18, Black MTD-720-04122
...
43
Shoulder Screw, .375 x .148 x1/4-20 MTD-738-04419A
...
44
Control Cable, 48" MTD-946-05141
...
45
Bail, Black MTD-747-06246-0637
...
46
Handle, Lower MTD-749-05102-0637
...
47
Handle, Upper MTD-749-05103-0637
...
48
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
49
BASE MTD-781-05007A
...
50
Idler Trimmer Bracket MTD-981-1008A
...
xx
Safety Glasses (not shown) MTD-723-0400
...
...
...
...
...
