Columbia 21XPES 31AS2T5E897 (2015) 31AS2T5E897 21XPES (2015) Tiller

Model: 21XPES 31AS2T5E897 (2015)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

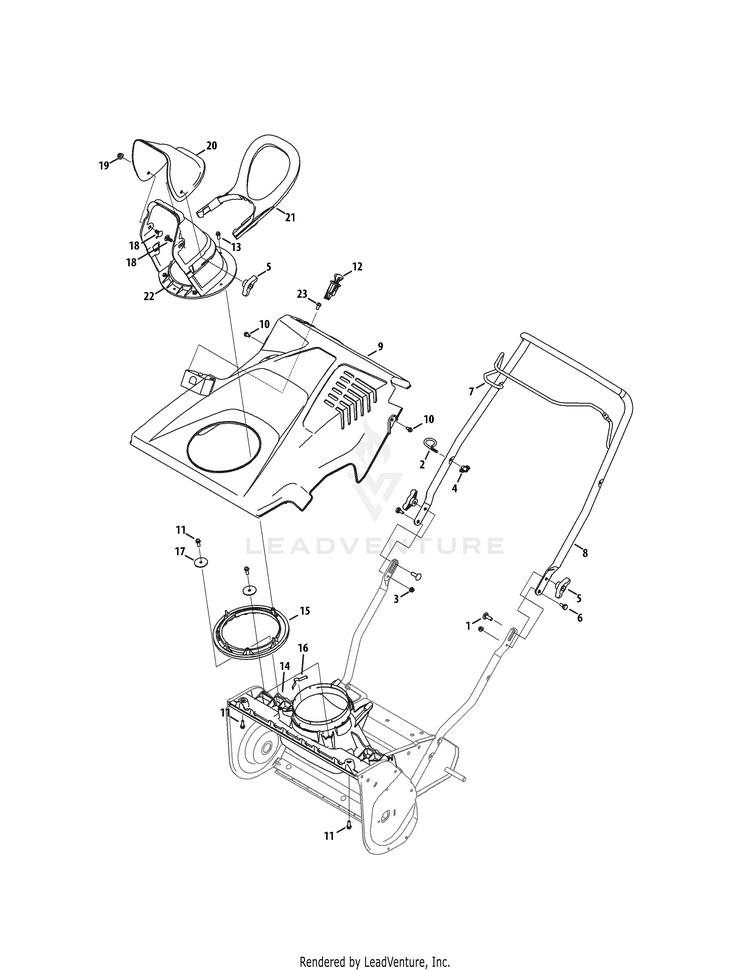

Shroud, Chute & Handle

...
...
1
Carriage Bolt, 5/16-18 x 1.00 MTD-710-04998
...
2
Eye Bolt, 1/4-20 MTD-710-05348
...
3
Flange Lock Nut, 1/4-20 MTD-712-04064
...
4
Knob Handle MTD-720-0279
...
5
Wing Knob MTD-720-04122
...
6
Shoulder Screw, .375 x .148 x 1/4-20 MTD-738-04419A
...
7
Auger Bail MTD-747-05327C-0637
...
8
UPPER HANDLE (POWDER BLACK) MTD-749-04703D-0637
...
9
COVER ASSEMBLY E-STYLE (BLACK) MTD-931-05334D
...
10
Hex Washer Screw, 1/4-20 x .625 MTD-710-1652
...
11
Screw, Hi-Lo:1/4-15, 0.75 MTD-710-0895
...
12
Ignition Switch Assembly MTD-925-04031B
...
13
Hex Washer Screw, 1/4 x .750 MTD-710-05108
...
14
Chute Adapter MTD-931-07626B
...
15
Chute Ring MTD-731-08274
...
16
Chute Adjustment Spring MTD-932-04111
...
17
Flat Washer, .28 x 1.5 x .066 MTD-736-04576
...
18
Carriage Bolt, 5/16-18 x .750 MTD-710-0451
...
19
Flange Lock Nut, 5/16-18 MTD-712-04063
...
20
UPPER REMOTE CHUTE WITH LABEL MTD-731-04427B
...
21
Chute Handle MTD-731-07644
...
22
Lower Chute MTD-931-07753A
...
23
Hex Washer Screw, 1/4-15 x .50 MTD-710-04187A
...
...
...
...
...
