Columbia 17AF2ACP897 (2011) RZT50 17AF2ACP897 (2011) Z-Series

Model: 17AF2ACP897 (2011) RZT50 17AF2ACP897 (2011)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

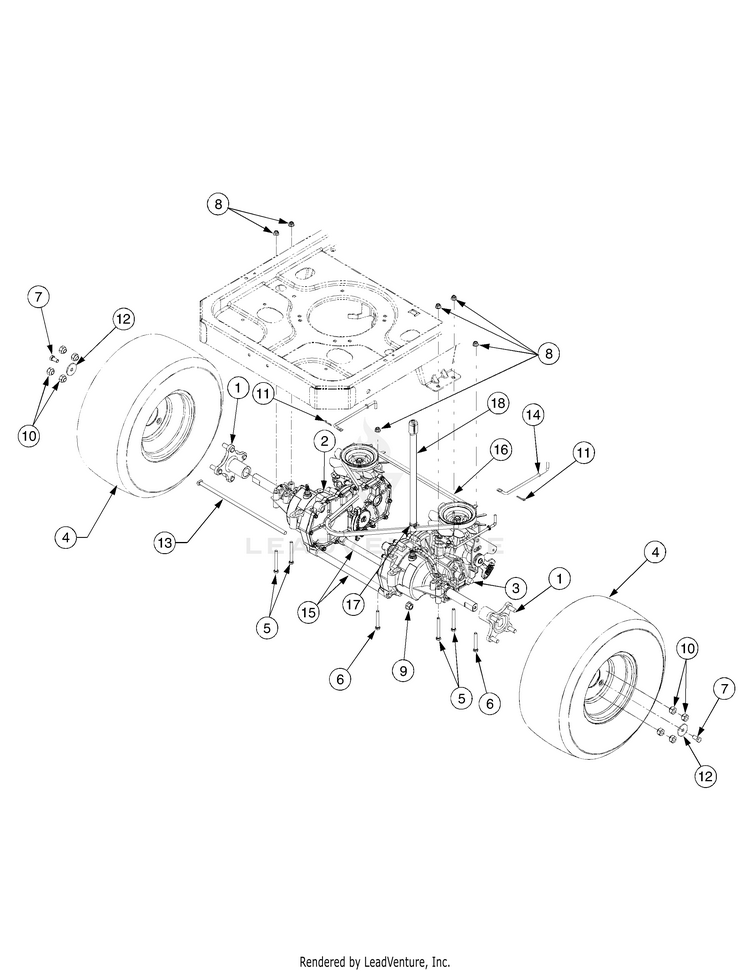

Rear Drive & Wheels, 50-Inch

...
...
1
Wheel Hub MTD-918-04317
...
2
TRANSMISSION (LH) MTD-918-04431B
...
3
TRANSMISSION (RH) MTD-918-04432B
...
4
Wheel Assembly Complete 18 x 8.5 x 8 MTD-634-04293
...
4
Tire Only 18 x 8.5-8 DELI Not shown MTD-734-04246-0906
...
4
REAR RIM Not shown MTD-603-04173
...
4
Valve 18 x 8.5 x 8 Not shown MTD-934-0255
...
4
Wheel Assembly Complete 18 x 9.5 x 8 MTD-634-04128
...
4
TIRE-18X9.5-8 SQ SH Not shown MTD-734-1729-0901
...
4
REAR RIM Not shown MTD-603-04175
...
4
Valve 18 x 9.5 x 8 Not shown MTD-934-0255
...
5
Hex Screw 5/16-18 x 2.75 MTD-710-0176
...
6
Hex Bolt 5/16-18 x 2.25 MTD-710-0395
...
7
Hex Cap Lock Screw. 3/8-16 x .75 Gr. 5 MTD-710-3119
...
8
Flange Locknut 5/16-18 Gr. F, Nylon MTD-712-04063
...
9
Flange Lock Nut, 7/16-20 MTD-712-0459
...
10
Lub Nut, 7/16-14 MTD-712-3050
...
11
Bow Tie Cotter Pin MTD-714-04040
...
12
Fl-Wash. .39" I.D. x 1.5" O.D. MTD-736-0227
...
13
Rod, .405 x 14.0 MTD-738-04192B
...
14
Rod, Bypass MTD-747-04217C-0637
...
15
Tube, .51 x .75 x 10.2 MTD-750-04561A
...
16
TRANSMISSION DRIVE BELT A x 57.3 MTD-954-04043B
...
xx
Neutral Return Spring Not shown MTD-732-04448
...
...
...
...
...
