Columbia 17AF2ACK897 ZT54 (2012) Z-Series

Model: 17AF2ACK897 ZT54 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

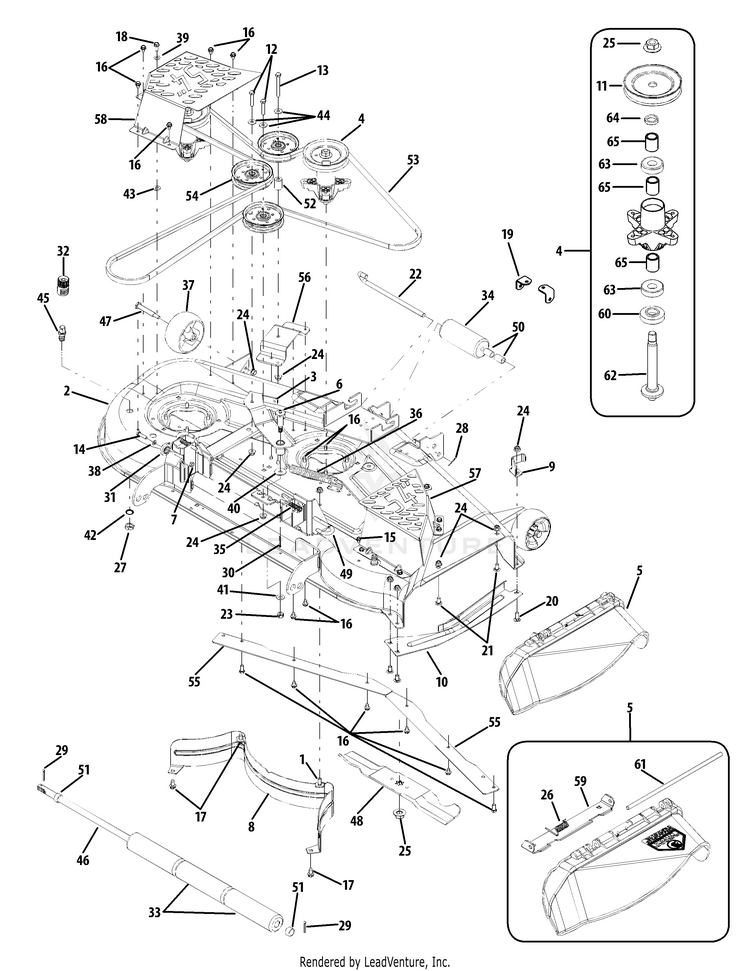

Mower Deck 54-Inch

...
...
1
Carriage Screw, 3/8-16 x 1.00 MTD-710-3168
...
2
54" DECK SHELL MTD-903-04603A
...
3
54" DECK IDLER ASSEMBLY (POWDER BLACK) MTD-603-04386A-0637
...
4
Spindle Assembly MTD-918-04608A
...
5
Chute Ass’y MTD-631-04092C
...
6
Shoulder Bolt Assembly MTD-638-04012A
...
7
Bracket Assembly, Deck, Hanger LH MTD-683-0254B
...
8
Rear Inner Baffle MTD-703-2093C-0637
...
9
Chute Stop Deflector MTD-703-3279
...
10
Finger Guard MTD-703-3511B-0637
...
11
V-Type Pulley, 5.39 MTD-756-04216
...
12
Hex Cap Screw, 3/8-16 x 1.75 MTD-710-0347
...
13
Hex Cap Screw, 3/8-16 x 3.0 MTD-710-0521
...
14
Hex Cap Screw, 5/16-18 x 1.25 MTD-710-0528
...
15
Hex Washer Screw, 1/4-20 x .5 MTD-710-0599
...
16
SCREW 5/16-18 x .750 MTD-710-04484
...
17
Hex Washer Screw, 3/8-16 x .75 MTD-710-0623
...
18
Hex Washer Screw, 5/16-18 x .875 MTD-710-0650
...
19
BRACKET-HITCH (POWDER BLACK) MTD-703-05970-0637
...
20
Hex Screw, 3/8-16 x 1.00 MTD-710-04095
...
21
CARRIAGE BOLT 3/8-16 x .75 MTD-710-3178
...
22
ROLLER PIN .5"DIAX10.06" MTD-711-1737
...
23
Hex Lock Nut, 7/16-14 MTD-712-0290
...
24
Hex Insert Flange Lock Nut, 3/8-16 MTD-712-04065
...
25
HEX NUT MTD-712-0417A
...
26
Torsion Spring, .44 ID x 2.00 MTD-732-04372
...
27
Nut, Hex, M16-1.5 MTD-712-0641
...
28
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
29
Cotter Pin, 5/32 x 1.25 MTD-714-0162
...
30
Cotter Pin 1/8" Dia. MTD-714-0470
...
31
Deck Adjustment Gear MTD-917-04074
...
32
Water Nozzle Adapter MTD-921-04041
...
33
Deck Roller, 7.895 MTD-731-05825
...
34
ROLLER MTD-731-05679B
...
35
Compression Spring, .535 x 1.751 MTD-732-04652
...
36
Extension Spring, .94 x .04609 MTD-732-04609
...
37
Deck Ball Wheel, 5.0 MTD-734-04155
...
38
Lock Washer, 5/16 MTD-936-0119
...
39
FLAT WASHER MTD-736-0275
...
40
Flat Washer, .442 x 1.39 x .06 MTD-936-0406
...
41
Bell Washer, .45 x 1.0 x .062 MTD-736-0407
...
42
Lock Washer MTD-736-0760
...
43
Flat Washer, .407 x .812 x .135 MTD-736-3010
...
44
Flat Washer, .38 x .93 x .110 MTD-736-3072
...
45
Deck Wash Nozzle MTD-737-04003D
...
46
Shaft, .75 x 26.893 MTD-738-04260
...
47
Shoulder Screw, .5 x 2.5 x 3/8-16 MTD-938-3056
...
48
Blade, 18.5 MTD-942-0677B
...
49
Deck Hanger Rod MTD-747-1116
...
50
Spacer, .55 x .75 x 1.125 MTD-950-0151
...
51
Spacer.75" I.D. MTD-750-0212
...
52
SPACER:.380 x .900 MTD-750-04597
...
53
V-Belt MTD-954-04138A
...
54
Pulley Kit, Idler, 4.25"Dia MTD-753-08171
...
55
Deck Skirt MTD-783-04690B-0637
...
56
Stationary Idler Bracket MTD-783-04726-0637
...
57
Spindle Cover, RH MTD-783-1470A
...
58
LH Spindle Cover MTD-783-1471A-0637
...
59
Chute Mounting Bracket MTD-783-05030
...
60
Spacer, .79 x 1.82 x .55 MTD-750-1349A
...
61
Hinge Pin MTD-711-04565
...
62
Spindle Shaft, 6.95 MTD-738-1197
...
63
BALL BEARING MTD-741P0919B
...
64
Spacer, .79 x 1.25 x .175 MTD-748-0160A
...
65
Spacer, .80 x 1.10 x 1.32 MTD-750-1000
...
...
...
...
...
