Columbia 17AF2ACK897 ZT54 (2012) Z-Series

Model: 17AF2ACK897 ZT54 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

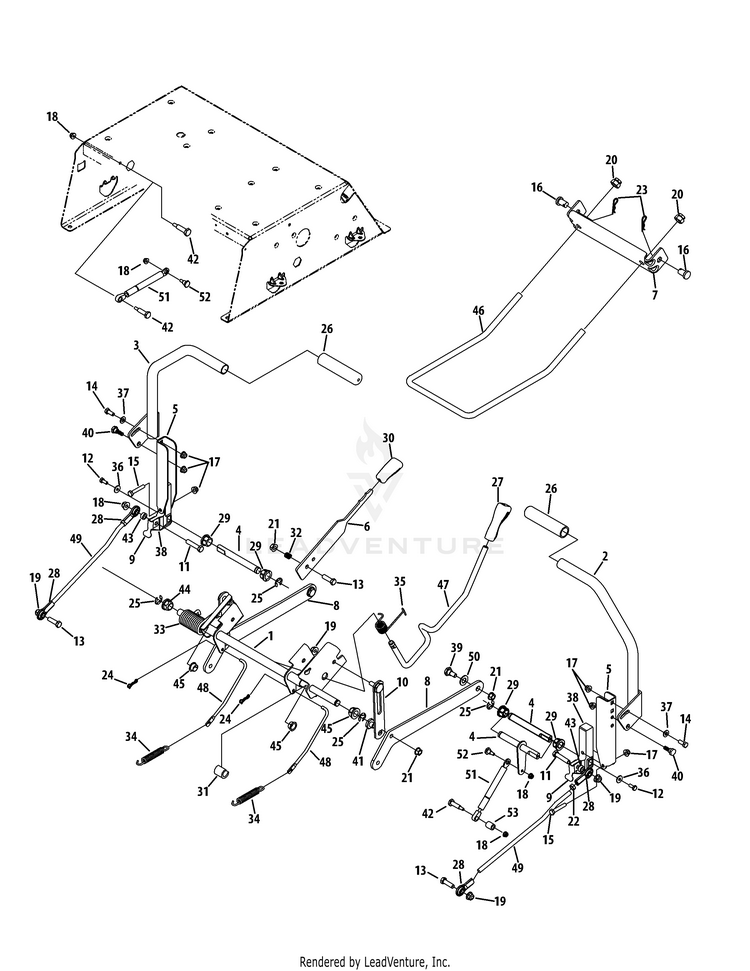

Deck Lift & Controls 54-Inch

...
...
1
Deck Lift Shaft Assembly MTD-603-04160C-0637
...
2
LAPBAR HANDLE (RH) (POWDER BLACK) MTD-603-04322-0637
...
3
LAPBAR HANDLE (LH) (POWDER BLACK) MTD-603-04324-0637
...
4
Shaft Control MTD-747-04226A
...
4
Shaft Control, Dampers MTD-647-04099A
...
5
Lapbar Pivot Bracket MTD-703-05387B
...
6
Brake/Shabs Handle MTD-703-05396A-0637
...
7
DECK HANGER BRACKET (POWDER BLACK) MTD-703-05414A-0637
...
8
Arm, Deck Lift MTD-703-05793A-0637
...
9
Actuator Switch Bracket MTD-703-06096A
...
10
Link Lift Plate MTD-703-06169-0637
...
11
Hex Screw, 3/8-16 x 1.75 MTD-710-0347
...
12
Hex Lock Screw, 1/4-20 x .625 MTD-710-0433
...
13
Hex Screw, 3/8-16 x 1.25 MTD-710-3005
...
14
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
15
Hex Screw, 5/16-18 x 1.75 MTD-710-3180
...
16
Clevis Pin, .50 x .78 MTD-911-0332
...
17
Flange Lock Nut, 5/16-18 MTD-712-04063
...
18
Flange Lock Nut, 1/4-20 MTD-712-04064
...
19
Flange Lock Nut, 3/8-16 MTD-712-04065
...
20
Flex Lock Nut, 1/2-13 MTD-712-04243
...
21
Hex Lock Nut, 3/8-16, Centerlock MTD-712-0375
...
22
Jam Nut, 3/8-24 MTD-912-3001
...
23
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
24
Bow-Tie Cotter Pin MTD-714-04040
...
25
E-Ring, .625 MTD-716-0106
...
26
Grip, 1.0 x 5.0 MTD-720-0274
...
27
Handle Grip, 1/2 MTD-720-0311
...
28
BALL JOINT MTD-723-04080
...
29
Hex Flange Bearing, .629 MTD-948-0227A
...
30
BRAKE HANDLE GRIP MTD-731-04735
...
31
SPACER .621 MTD-731-05732
...
32
Compression Spring MTD-732-0334
...
33
Torsion Spring, 1.19 x 2.78 MTD-732-04420
...
34
Extension Spring, .59 x 4.00 MTD-732-04432
...
35
Torsion Spring MTD-732-04869A
...
36
SPRING WASHER BELL MTD-736-0270
...
37
FLAT WASHER MTD-736-0275
...
38
PM Control Hub MTD-748-04169A
...
39
SHOULDER SCREW .498 DIA x .340 MTD-738-0143
...
40
Shld. Bolt .437" x .286" MTD-738-0296
...
41
Shoulder Bolt .50" Dia. MTD-738-0507B
...
42
Shoulder Screw, .374 x 1.16 MTD-938-0572
...
43
Spacer, .380 x .625 x .255 MTD-750-04776
...
44
Hex Flange Bearing MTD-941-0225
...
45
Flange Bearing, .626 x .938 x .344 MTD-741-3074
...
46
Deck Lift Frong Hanger Rod MTD-747-04401A
...
47
Deck Lift Handle Rod MTD-747-04637
...
48
Brake Rod MTD-747-04651
...
49
LAPBAR CONTROL ROD MTD-747-05057
...
50
FLAT WASHER .510 x .995 MTD-736-0272
...
51
Cylinder, Damper If Equipped MTD-927-04141
...
52
Shoulder Screw .375 X .380 X 1/4-20 If Equipped MTD-738-0974
...
53
Spacer, .385 x .630 x .75 If Equipped MTD-750-04676
...
...
...
...
...
