Columbia 17AF2ACK897 ZT54 (2012) Z-Series

Model: 17AF2ACK897 ZT54 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

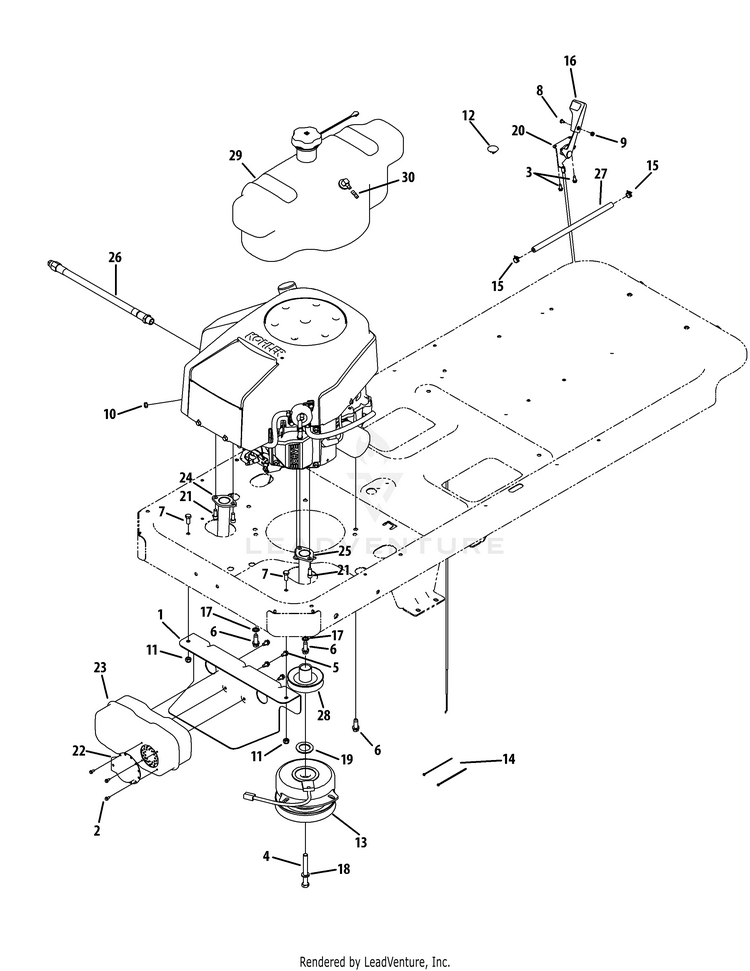

Engine Connection 54-Inch

...
...
1
Muffler Mount Bracket MTD-703-05441A
...
2
Hex Washer Screw, #8-18 x .500 MTD-710-0227
...
3
Screw, 1/4-14 x .625 MTD-710-1017
...
4
Hex Lock Screw, 7/16-20 x 3.50 MTD-710-04379A
...
5
Hex Washer Screw, 1/4-20 x .500 MTD-710-0599
...
6
SCREW 3/8-16 X 1 MTD-710-04683C
...
7
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
8
Machine Screw, #8-32 x .375 MTD-710-3217
...
9
Hex Nut, #8-32 MTD-712-0142
...
10
Sems Nut, 1/4-20 MTD-712-0271
...
11
Flange Lock Nut, 5/16-18 MTD-712-04063
...
12
Choke Plug MTD-731-1999
...
13
Electric PTO Clutch 54" Deck MTD-917-05001
...
14
Cable Tie MTD-726-0197
...
15
Hose Clamp MTD-726-0205
...
16
Throttle Control Knob MTD-731-04914
...
17
Lock Washer, 3/8 MTD-736-0148
...
18
Lock Washer, 7/16 MTD-936-0171
...
19
Flat Washer, 1.03 x 1.620 x .095 MTD-736-0277
...
20
THROTTLE/CHOKE CABLE 41.5" MTD-746P04539
...
21
Screw, 5/16-18 x .750 MTD-710-1314A
...
22
Muffler Deflector MTD-751-0564B
...
23
MUFFLER (DUAL INLET) MTD-951-0616B
...
24
Exhaust Pipe, LH MTD-751-10253
...
25
Exhaust Pipe, RH MTD-751-10254
...
26
OIL DRAIN HOSE W/VIBRA SEAL MTD-751-10291D
...
27
Fuel Hose MTD-751-10349
...
28
Engine Pulley MTD-756-04376
...
29
FUEL TANK (2.82 GAL) MTD-951-08858
...
29
Fuel Tank Bushing MTD-935-0149
...
29
Rubber Grommet MTD-735-04081
...
29
Fuel Pick-Up Fitting MTD-751-10442
...
29
Fuel Cap MTD-951-12428
...
29
Rollover Valve MTD-751-12118
...
30
Hose Vent, 3/16 EPA MTD-751-12089-28
...
...
...
...
...
