Columbia 17AF2ACK897 ZT54 (2012) Z-Series

Model: 17AF2ACK897 ZT54 (2012)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

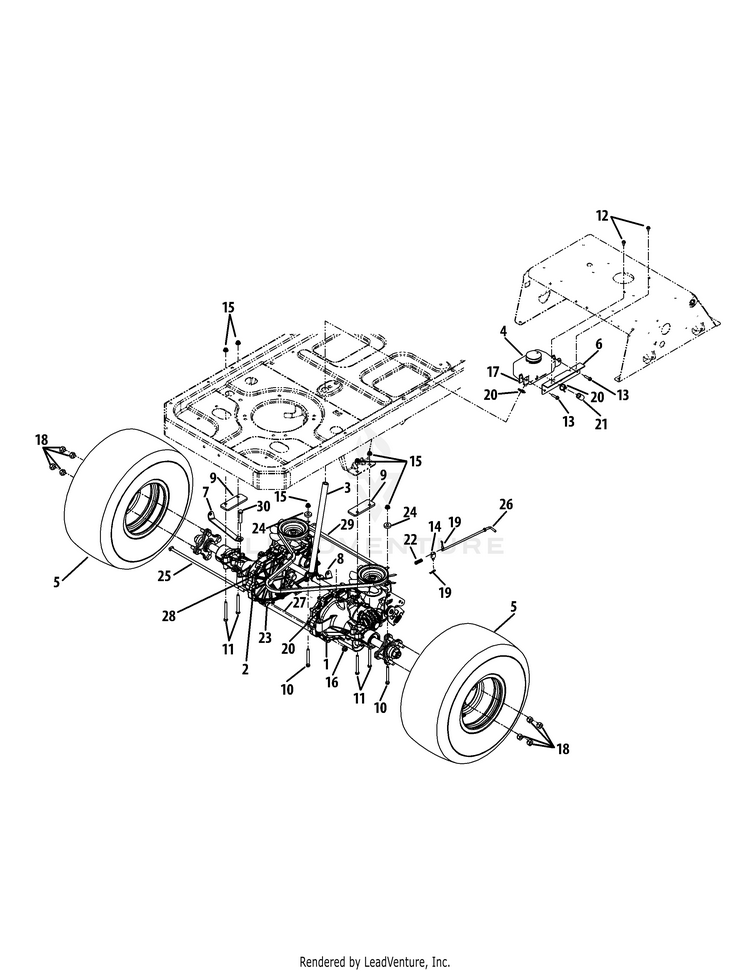

Rear Drive & Wheels 54-Inch

...
...
1
TRANSMISSION (RH) MTD-918-04464A
...
2
TRANSMISSION (LH) MTD-918-04465A
...
3
Breather MTD-618-04466
...
4
Expansion Tank Assembly MTD-931-04223
...
5
Wheel Assembly, 20 x 10 x 8 MTD-NA
...
5
Rim Assembly, 8.0 x 6.19 Not shown MTD-934-0246A-0662
...
5
Tubeless Air Valve Not shown MTD-934-0255
...
5
Tire, 20 x 10 x 8 Not shown MTD-734-1873-0901
...
6
TANK MOUNTING BRACKET MTD-703-05938A-0637
...
7
TRANSMISSION BRACE (LH) MTD-703-05940-0637
...
8
TRANSMISSION BRACE (RH) MTD-703-05941-0637
...
9
TRANSMISSION MOUNTING SPACER MTD-703-05989-0637
...
10
Hex Screw, 5/16-18 x 2.75 MTD-710-0176
...
11
Hex Screw, 5/16-18 x 3.00 MTD-710-0189
...
12
Screw, 1/4-20 x .500 MTD-710-0599
...
13
Screw, 1/4-20 x 1.000 MTD-710-0788
...
14
ADJUSTMENT FERRULE MTD-711-1530
...
15
Flange Lock Nut, 5/16-18 MTD-712-04063
...
16
Flange Lock Nut, 3/8-16 MTD-712-04065
...
17
Speed Nut, 1/4-20 MTD-712-04092
...
18
Lug Nut, 7/16-14 MTD-712-3050
...
19
Bow-Tie Cotter Pin MTD-714-04040
...
20
Hose Clamp, 1/2 MTD-02001111
...
21
TANK PLUG CAP MTD-731-05785
...
22
SPRING MTD-732-0335
...
23
BRAKE RETURN SPRING MTD-732-04434
...
24
FLAT WASHER .350X1.000X.250 MTD-736-04267
...
25
Rod, .337 Dia. x 14.75 LG MTD-738-04251A
...
26
BYPASS RODS MTD-747-04636
...
27
SUPPORT TUBE MTD-750-04759A
...
28
FITTING 9/16 x 1/2 MTD-751-10511
...
29
TRANSMISSION DRIVE BELT A x 57.3 MTD-954-04043B
...
30
Hex Screw, 5/16-18 x 2.25 MTD-710-0395
...
...
...
...
...
