Columbia 14AQ816K597 (2008) Garden Tractor

Model: 14AQ816K597 (2008)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

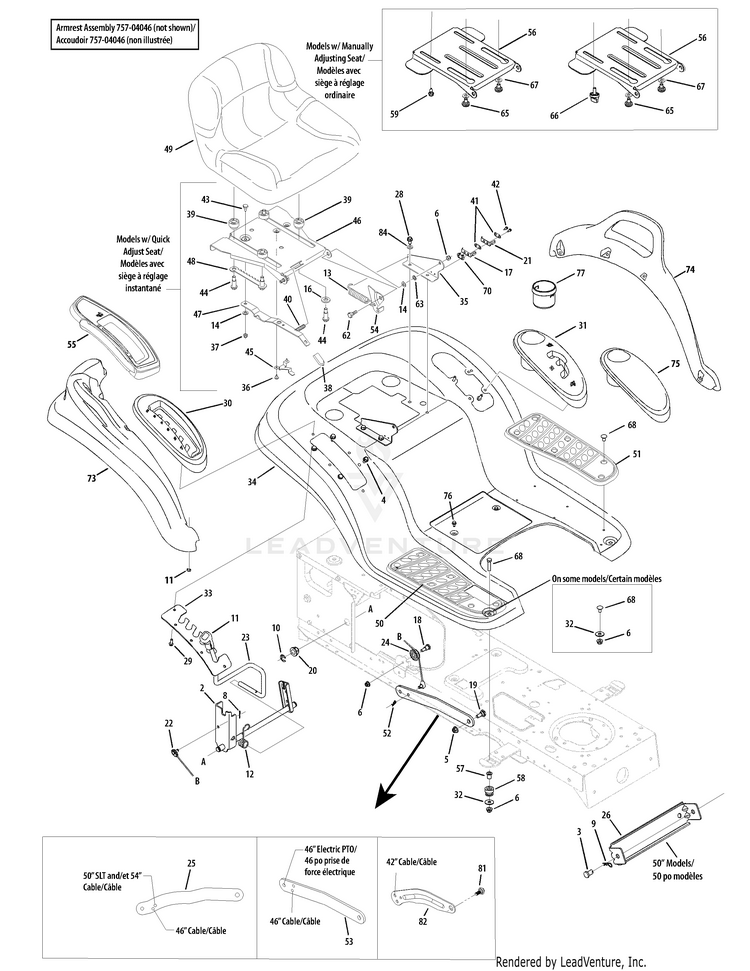

Seat & Fender

...
...
1
Deck Stabilizer Rod MTD-747-1130B
...
2
LIFT SHAFT ASSEMBLY (POWDER BLACK) (42" and 46" Deck) MTD-683-04223-0637
...
2
LIFT SHAFT ASSEMBLY (POWDER BLACK) (54" Deck) MTD-683-04118-0637
...
3
Clevis Pin MTD-911-0332
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Hex Flange Locknut 3/8-16 Gr. F,Nylon MTD-712-04065
...
6
Hex Flange Locknut 5/16-18 Gr. F Nylon MTD-712-04063
...
7
Hex Nut, 1/2-13 MTD-712-3083
...
8
Hairpin Clip MTD-714-0104
...
9
Internal Cotter Pin, .080 x 1.56 MTD-714-04023
...
10
E-ring MTD-716-0106A
...
11
Handle Grip MTD-720-0311
...
12
Torsion Spring MTD-732-0874
...
13
Extension Spring .84 x 4.6 MTD-732-1184
...
14
Cupped Wash. .345 ID x .88 OD x .060 MTD-736-0242
...
16
Flat Washer .531 ID x 1.062 OD x .134 MTD-736-3019
...
17
Spring Switch, Inner MTD-725-1439
...
18
Shoulder Scr. .437 Dia x .47 MTD-738-0138A
...
19
Shoulder Screw (46"/50") MTD-738-0380
...
20
Hex Flange Bearing .630 ID MTD-941-0225
...
21
Spring Switch, Outer MTD-925-1303
...
22
Lift Cable, 16.16 MTD-746-0968
...
23
Lift Handle MTD-747-04447
...
24
Roller Pulley MTD-756-1154
...
25
Arm Lift (46"/54" deck w/electric PTO) MTD-783-05546A-0637
...
26
Deck Stabilizer Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-0720C
...
28
SCREW 5/16-18 x .750 (w/783-0677B) MTD-710-04484
...
28
Screw 5/16-18 x .75 (601) MTD-710-1611B
...
29
Hex Scr. 1/4-15 x .75 MTD-710-0895
...
30
Lift Lever Cover MTD-731-06795
...
31
Shift Lever Cover w/Cup Holder MTD-931-2104C
...
32
Flat Washer .344 ID x 1.0 MTD-736-3078
...
33
LIFT ADJUSTMENT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-0677B
...
34
FENDER-4 STY,2 SPD *CHOOSE COLOR WHEN ORDERING* MTD-783-04331A
...
34
FENDER - 4 STYLE *CHOOSE COLOR WHEN ORDERING* MTD-783-04333A
...
35
Seal Mounting Bracket *CHOOSE COLOR WHEN ORDERING* MTD-783-1489C
...
36
Hex B-Tapp Wash Scr #10-16 x .375 MTD-710-1268
...
37
Hex Flange Locknut 1/4-20 Gr. F Nylon MTD-712-04064
...
38
Seat Adjuster Grip MTD-720-0309A
...
39
Spacer MTD-731-04074
...
40
Compression Spring 1.5" Lg MTD-732-0499
...
41
Insulator Plate MTD-726-0278
...
42
Hex Wash HD AB S-Tapp Scr #8-.50 MTD-710-0227
...
43
Shld. Bolt .34" x 1/4 -20 Thd. MTD-738-0137A
...
44
Shoulder Screw, .50 x .925, 3/8-16 MTD-738-0966A
...
45
Seat Stop MTD-783-0611
...
46
SEAT PIVOT BRACKET *CHOOSE COLOR WHEN ORDERING* MTD-783-0738D
...
47
SEAT ADJUSTMENT LEVER MTD-783-0739A-0637
...
48
Seat Adjustment Selector MTD-783-0753
...
49
HIGH BACK SEAT MTD-757-04003A
...
49
HIGH BACK SEAT MTD-757-04012D
...
49
HIGH BACK SEAT (BLACK) MTD-757-04072
...
50
FOOT PAD (RH) MTD-735-0656
...
51
FOOT PAD (LH) MTD-735-0657
...
52
Cotter Pin 3/32" Dia. x 1.0" MTD-714-0111
...
53
Arm Lift (46" deck w/manual PTO & 50" deck) *CHOOSE COLOR WHEN ORDERING* MTD-783-04963A
...
54
Seat Lift Bracket MTD-783-0209D
...
55
FENDER COVER (RH) MTD-731-05498A
...
56
Seat Pivot Bracket, Manually Adjusted *CHOOSE COLOR WHEN ORDERING* MTD-783-04081B
...
57
EXT. L-WASH. 1/2" I.D. NLA MTD-736-0190
...
58
Flg. Spacer .3125 x .4375 x .625 MTD-750-3310
...
59
Hex Wash Hd Scr. 3/8-16 x .625 Gr. 5 MTD-710-0870
...
61
Ratchet Clip .25 Dia. MTD-726-3046
...
62
Shld. Bolt .437" x .286" MTD-738-0296
...
63
Push Speed Nut (Quick Adjustment Only) MTD-726-0201
...
65
SHOULDER SCREW.625 x .110:3/8-16 MTD-738-04012C
...
66
Knob, 3/8-16 x .625 MTD-720-04061
...
67
Fl-Wash. .385" I.D. x 7/8" MTD-736-0300
...
68
Carriage Bolt 5/16 x 18 x .75" Lg. MTD-710-0451
...
69
Hex TT Scr. 5/16-18 x .875 MTD-710-0604A
...
70
Insulator Plate MTD-726-0278
...
71
Carriage Bolt 1/4-20 x 1.00" Lg. MTD-710-0932A
...
72
Sems Hex Nut 1/4-20 MTD-712-0271
...
73
FENDER FLARE (RH) MTD-731-2618
...
74
FENDER FLARE (LH) MTD-731-2619
...
75
COVER-W/CUP HOLDER MTD-731-1993A
...
76
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
77
Cup Holder, Style 7 MTD-731-04591A
...
78
HEX NUT MTD-712-0206
...
79
Flat Washer .510 x 1.12 x .06 MTD-736-3084
...
80
Shoulder Screw .50 x 2.230:3/8-16 MTD-738-1011A
...
81
SHOULDER SCREW .625X.165X3/8-16 MTD-738-04130A
...
82
Deck Lift Arm RH (42" Deck) *CHOOSE COLOR WHEN ORDERING* MTD-783-04494C
...
82
Lift Arm LH (Not Shown) *CHOOSE COLOR WHEN ORDERING* MTD-783-04711C
...
84
Ext. Lockwasher 5/16 ID MTD-736-0607
...
xx
Arm Rest Ass'y Not shown MTD-757-04073
...
...
...
...
...
