Columbia 14AQ816K597 (2008) Garden Tractor

Model: 14AQ816K597 (2008)

Back To Assemblies

Save
 Part Not Listed?Part Not Listed?
product name

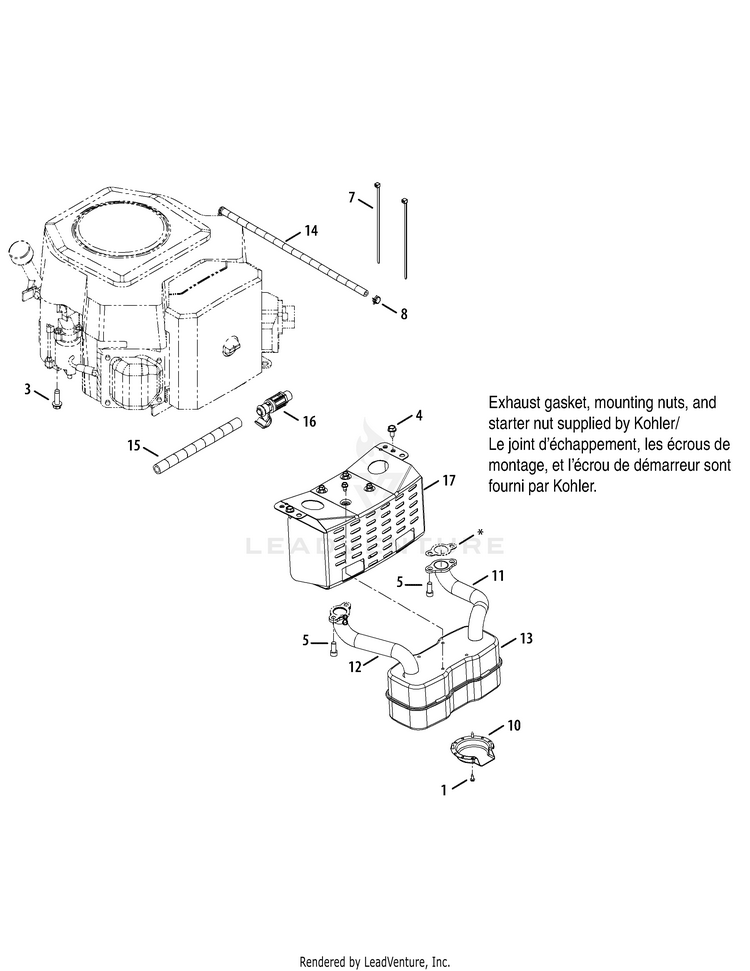

Engine Connections

...
...
1
Hex AB Scr #8-18 x .50 MTD-710-0227
...
2
Hex Wash S-Tapp Scr 1/4-20 x .50 MTD-710-0599
...
3
SCREW 3/8-16 X 1 MTD-710-04683C
...
4
SCREW 5/16-18 x .750 MTD-710-04484
...
5
Scr. 5/16-18 x .75 MTD-710-1314A
...
6
Loctite 567 Sealant Purchase locally MTD-NA
...
7
Cable Tie MTD-725-0157
...
8
Hose Clamp MTD-726-0205
...
10
Muffler Deflector MTD-751-0564B
...
11
Exhaust Pipe LH MTD-751-0644B
...
12
EXHAUST PIPE (RH) MTD-751-0645A
...
13
MUFFLER (KOHLER TWIN) MTD-951-0805A
...
14
Fuel Line *CHOOSE LENGTH WHEN ORDERING* MTD-751-10349
...
15
Oil Drain Hose MTD-751-3141-14
...
16
Oil Drain Cap MTD-951-10517A
...
17
Muffler Bracket MTD-783-0615E-0637
...
...
...
...
...
